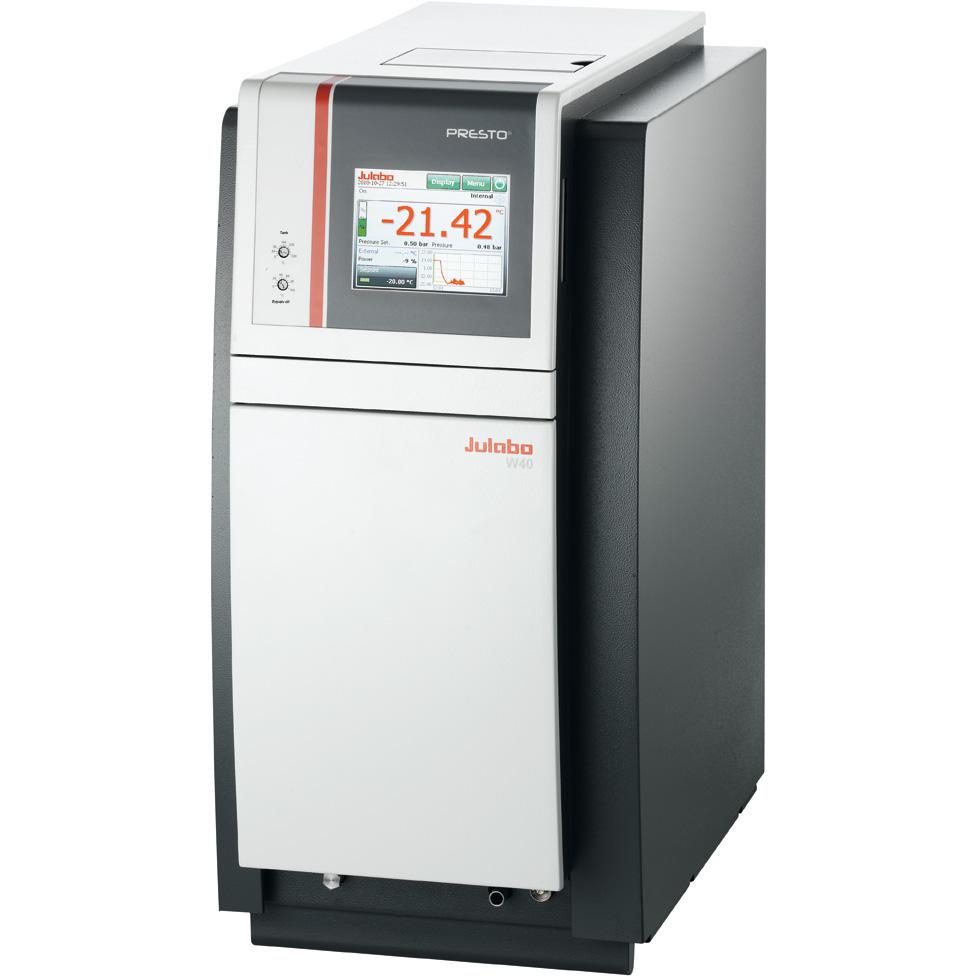

Julabo PRESTO W40 Refrigerated Heating Recirculators, -40 to 250°C
| Image | SKU | Description | Filling Volume | Temperature Range | Temperature Stability | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
9421401.14 | PRESTO W40 | 3.5 L | -40 to 250 °C | ±0.01 to ±0.05 °C | 208V / 60Hz / 15A | 1 Each | $30,675 |
Description
Temperature Control System / Process System
Reactor temperature control, tests for all kinds of substances or temperature simulation – the PRESTO are made for highly precise temperature control and rapid temperature changes. Highly efficient components allow extremely fast compensation of exothermic and endothermic reactions. Lab users benefit from high flow rates, constant pressure, and a controlled build-up of pump pressure. Permanent internal monitoring and self-lubricating pumps contribute to the new PRESTO’s long service life. The integrated 5.7’’ industrial touch screen displays all important information clearly and concisely enhancing ease of use considerably.
Your advantages
- For highly precise, external temperature applications
- Rapid heating and cooling
- Wide working temperature ranges without changing fluids
- Highest performance with small footprint
- Space-saving design optimizes space utilization in your lab
- 5.7" industrial color TFT touch screen
- USB (Host und Device)
- Ethernet
- SD-Card slot
- RS232
- Modbus
- RS485 (Accessory)
- Profibus DP (Accessory)
- Stand-by input
- Water Cooled
Specifications
| Part Number | 9421401 |
|---|---|
| Model Series | PRESTO |
| Category | Temperature Control |
| Working Temperature Range | -40 to 250°C |
| Temperature Control | ICC |
| Temperature Stability | ±0.01 to ±0.05°C |
| Setting / Display Resolution | 0.01°C |
| Integrated Programmer | 8x60 steps |
| Temperature Display | TFT Touchscreen |
| Heating Capacity | 2.7kW |
| Cooling Capacity (Medium:JULABO Thermal | Ethanol) | 1.2kW @ 200°C | 1.2kW @ 20°C / 1kW @ 0°C / 0.55kW @ -20°C / 0.3kW @ -30°C / 0.07kW @ -40°C |
| Pump Capacity Flow Rate | 16 to 40 l/min |
| Pump Capacity Flow Pressure | 0.3 to 1.7 bar |
| Pump Connections | M24x1.5 |
| Refrigerant Stage 1 | R507 |
| Filling Volume Refrigerant Stage 1 | 380 g |
| Global Warming Potential for R507 | 3985 |
| Carbon Dioxide Equivalent Stage 1 | 1.514 t |
| External Pt100 Sensor Connection | Integrated |
| Digital Interfaces | RS232 SD memory card USB Ethernet Modbus Alarm-out Optional: RS485, Profibus |
| Analog Connection Input / Output | Optional |
| Ambient Temperature | 5 to 40°C |
| Dimensions W x L x H | 33 x 59 x 67 cm |
| Weight | 78 kg |
| Sound Pressure Level (distance 1 m) Max. | 53 dBA |
| Process Volume Min. (active heat exchanger volume) Liters | 3.5 L (1.7 L) |
| Internal Usable Expansion Vol. (liters) | 2.7 L |
| Classification According to DIN12876-1 | Classification III (FL) |
| Cooling of Compressor | 1-stage Water |
| Cooling Water Connection | G ¾" male with barbed fittings for tubing ½" lD |
| Cooling Water Consumption | 1 l/min |
| Cooling Water Temperature | <30°C |
| Cooling Water Differential Pressure | 0.5 bar |
| Voltage | 208V/60Hz/15A |
Tip: Counter-cooling your PRESTO with a Recirculating Cooler
If there is no cooling water, the PRESTO W40 can be cooled down with a recirculating cooler with a cooling capacity of 2 kW at a flow temperature of 15°C. The required circulating pump has to ensure a flow rate of 1 l/min at a counter-pressure of 0.5 bar. The recommended minimum tank volume is 10 liters.
