Julabo VALEGRO 500 Recirculating Chillers, -20 to 40°C
Julabo VALEGRO 500 Recirculating Chillers, -20 to 40°C
Julabo VALEGRO 500 Recirculating Chillers, -20 to 40°C Julabo VALEGRO 500 Recirculating Chillers, -20 to 40°C Julabo VALEGRO 500 Recirculating Chillers, -20 to 40°C
FREE SHIPPING

Julabo VALEGRO 500 Recirculating Chillers, -20 to 40°C

Questions? Quotes? Let's chat!
$7,486 and up
SKU Description Filling Volume Temperature Range Temperature Stability Electrical Quantity Price Add to Cart
9610050.30003284 VALEGRO 500 Recirculating Chiller 1.5 to 3 L -20 to 40 °C ±0.3 °C 115V / 60Hz 1 Each $7,486
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
9610050.30003283 VALEGRO 500 Recirculating Chiller 1.5 to 3 L -20 to 40 °C ±0.3 °C 200-230V / 50-60Hz 1 Each $8,734
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

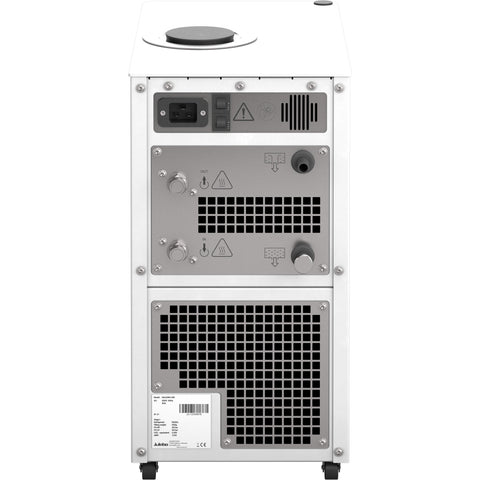

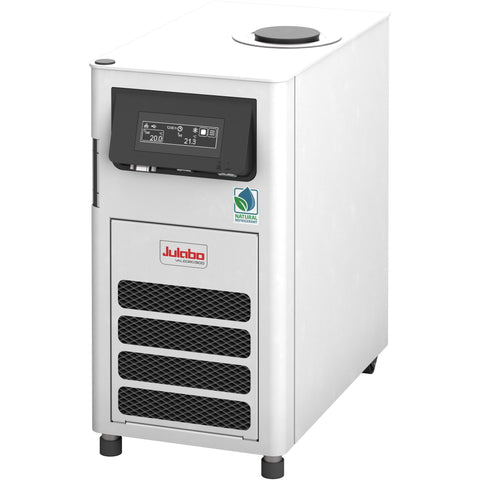

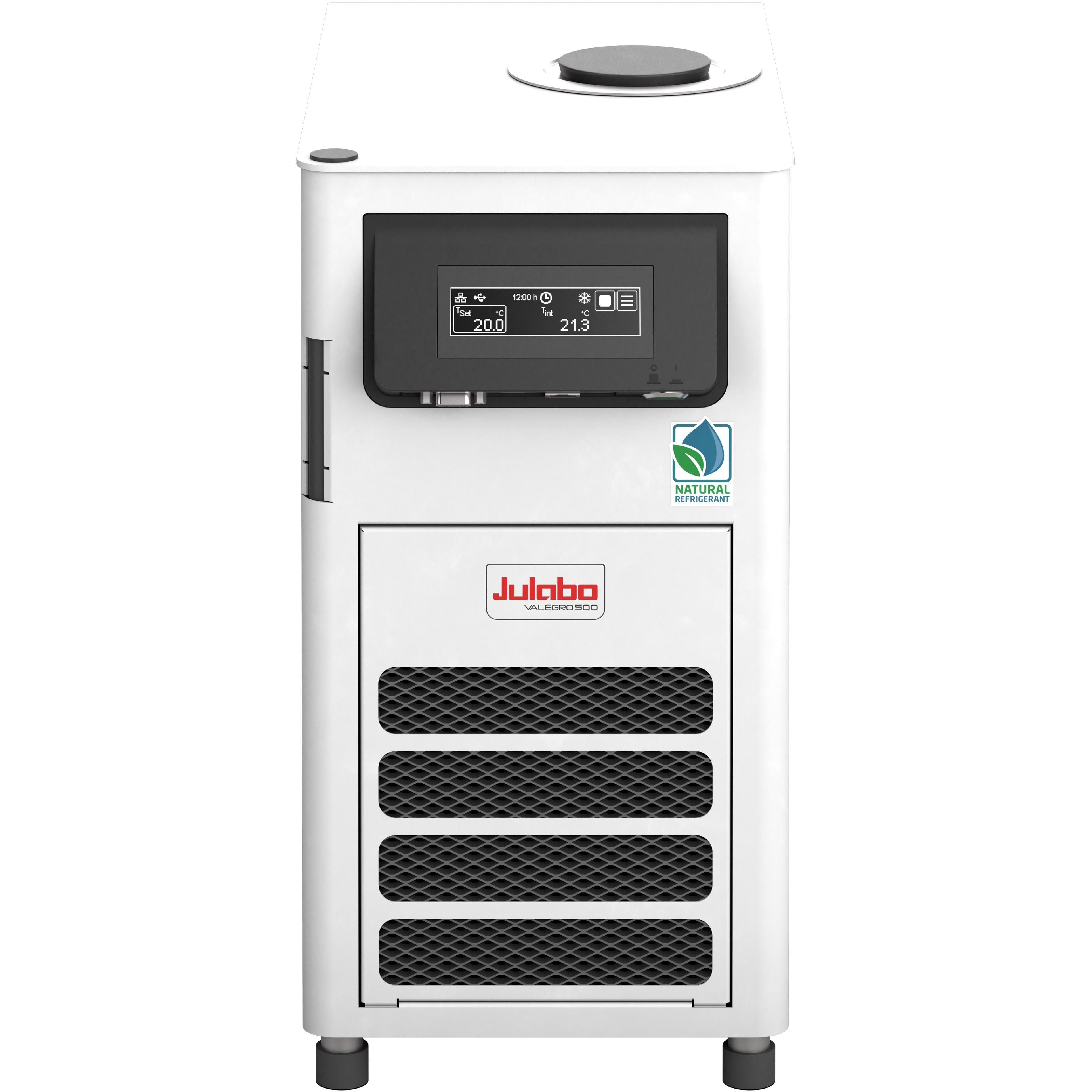

VALEGRO 500 compact recirculating chiller with -20…+40 °C operating range and 500W cooling power at 20 °C. The integrated pump generates a pump pressure up to 12.3 psi and 19 L/min with infinite adjustability to fit your application needs. Cooling via environmentally friendly natural refrigerant. OLED touch screen user interface with intuitive menu operation. Includes RS232 and USB-C interfaces for external communication with an optioni for Ethernet (part number 30004147). M16x1 male threaded pump connections with 8 and 12 mm hose barbs included.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)

  • Climate friendly Natural Refrigerant
  • OLED touchscreen user interface
  • USB-C and RS232 communication ports
  • Ethernet option
  • Illuminated level indicator
  • Adjustable pump to regulate flow / pressure

Specifications

Part Number 9610050.30003284 9610050.30003283
Working Temp Range -20 to 40 °C -20 to 40 °C
Cooling Capacity 0.08kW @ -20°C / 0.24kW @ -10°C / 0.35kW @ 0°C / 0.5kW @ 20°C 0.08kW @ -20°C / 0.24kW @ -10°C / 0.35kW @ 0°C / 0.5kW @ 20°C
Voltage Version 115V/60Hz 200-230V/50-60Hz
Power A 4 A 3 A
Plug Type NEMA 5-15P NEMA 6-15P
Pump Connection M16x1 male M16x1 male
PCF Pressure 12.3 psi 12.3 psi
PCF Rate 19 L/min 19 L/min
Bath Fill Volume 1.5 to 3 L 1.5 to 3 L
Fluid Type Water, Silicone, Water/Glycol Water, Silicone, Water/Glycol
Heating & Cooling Cooling Cooling
Dimensions W x L x H 9.1 x 17.7 x 17.7 in. 9.1 x 17.7 x 17.7 in.
Weight 57.3 lbs 57.3 lbs
Refrigerant R290 R290

Documentation

Product Data Sheets
VALEGRO 500, 115V Product Data Sheet
VALEGRO 500, 230V Product Data Sheet
