Ohaus® Compass® CX Series Portable Balances
$205
$184
and up
| Image | SKU | Description | Model | Capacity | Readability | Pan Size | Postal rate chart | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
|
30428199 | Ohaus Compass CX Portable Balance | CX221 | 220 g | 0.1 g | 142 mm x 128 mm | Not included | 1 Each |
|
|
|
30467746 | Ohaus Compass CX Portable Balance | CX221P | 220 g | 0.1 g | 142 mm x 128 mm | Included | 1 Each |
|
|
|
30428200 | Ohaus Compass CX Portable Balance | CX621 | 620 g | 0.1 g | 142 mm x 128 mm | Not included | 1 Each |
|
|
|
30428201 | Ohaus Compass CX Portable Balance | CX1201 | 1,200 g | 0.1 g | 142 mm x 128 mm | Not included | 1 Each |
|
|
|
30428202 | Ohaus Compass CX Portable Balance | CX2200 | 2,200 g | 1 g | 142 mm x 128 mm | Not included | 1 Each |
|
|
|
30467747 | Ohaus Compass CX Portable Balance | CX2200P | 2,200 g | 1 g | 142 mm x 128 mm | Included | 1 Each |
|
|
|
30428203 | Ohaus Compass CX Portable Balance | CX5200 | 5,200 g | 1 g | 142 mm x 128 mm | Not included | 1 Each |
|
|
|
30467761 | Ohaus Compass CX Portable Balance | CX5200P | 5,200 g | 1 g | 142 mm x 128 mm | Included | 1 Each |
|
Description
Overview
Designed with energy efficiency in mind, the Compass CX series offers a battery life of up to 1,000 continuous hours, allowing for uninterrupted operation. Featuring a slim, stackable and light-weight design, the CX fits ideally in lab, industrial, education, and even household settings. The streamlined two-button operation means that the balance can be operated easily, and large backlit LCD display enables easy viewing of weighing results.

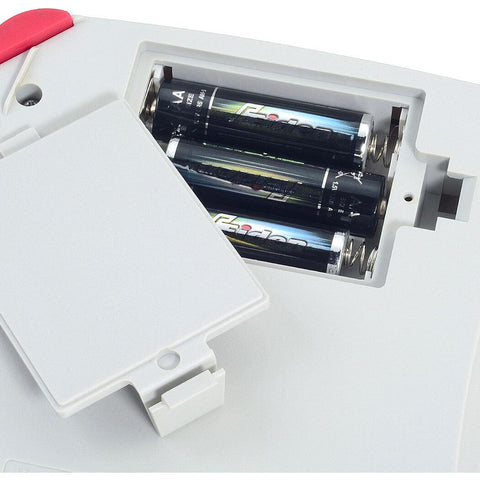

Designed with energy efficiency in mind, the Compass CX series features alkaline batteries capable of up to 1,000 hours of continuous use, providing peace of mind for daily weighing applications.

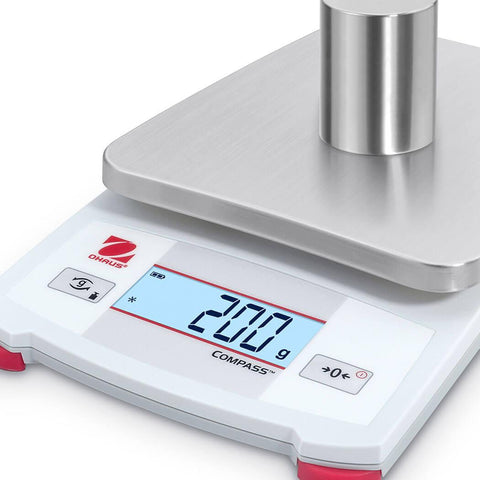

Combined with a simplified two-button operation, the Compass CX's large backlit display increases readability in dim lighting conditions, and makes it easier to view results from a distance.

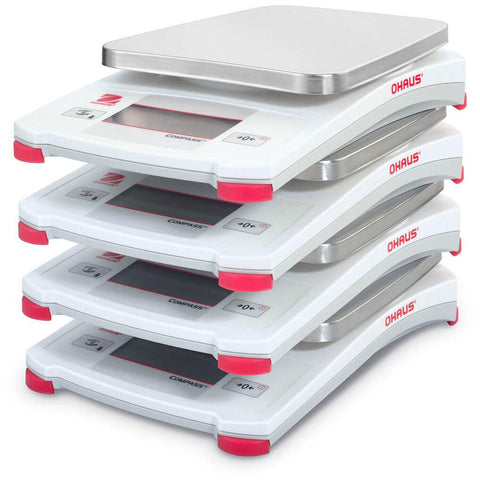

The Compass CX comes in an ingenious space-saving design, which allows you to stack up to 4 scales to save storage space. Additionally, the CX features a standard stainless steel pan for durable use.
Features
Applications
Weighing, Display Hold
Display
Liquid Crystal Display (LCD) with backlight
Operation
3 AA batteries (included) or AC adapter (not included)
Construction
ABS housing, stainless steel pan, transportation lock, slip-resistant feet
Design Features
Stability indicator, mechanical and software overload/underload protection, low battery indicator, auto shut-off
Specifications
| Model # | CX221 | CX221P | CX621 | CX1201 | CX2200 | CX2200P | CX5200 | CX5200P |
|---|---|---|---|---|---|---|---|---|
| Part # | 30428199 | 30467746 | 30428200 | 30428201 | 30428202 | 30467747 | 30428203 | 30467761 |
| Maximum Capacity | 220 g | 220 g | 620 g | 1,200 g | 2,200 g | 2,200 g | 5,200 g | 5,200 g |
| Readability | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 1 g | 1 g | 1 g | 1 g |
| Pan Size (LxW) | 5.6 in x 5 in (142 mm x 128 mm) | 5.6 in x 5 in (142 mm x 128 mm) | 5.6 in x 5 in (142 mm x 128 mm) | 5.6 in x 5 in (142 mm x 128 mm) | 5.6 in x 5 in (142 mm x 128 mm) | 5.6 in x 5 in (142 mm x 128 mm) | 5.6 in x 5 in (142 mm x 128 mm) | 5.6 in x 5 in (142 mm x 128 mm) |
| Battery Life | 1001 Hours with Disposable Batteries | 1001 Hours with Disposable Batteries | 1001 Hours with Disposable Batteries | 1001 Hours with Disposable Batteries | 1001 Hours with Disposable Batteries | 1001 Hours with Disposable Batteries | 1001 Hours with Disposable Batteries | 1001 Hours with Disposable Batteries |
| Communication | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable |
| Auxiliary Display Model | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable |
| Dimensions (HxLxW) | 1.6 in x 7.9 in x 5.3 in (41 mm x 201 mm x 135 mm) | 1.6 in x 7.9 in x 5.3 in (41 mm x 201 mm x 135 mm) | 1.6 in x 7.9 in x 5.3 in (41 mm x 201 mm x 135 mm) | 1.6 in x 7.9 in x 5.3 in (41 mm x 201 mm x 135 mm) | 1.6 in x 7.9 in x 5.3 in (41 mm x 201 mm x 135 mm) | 1.6 in x 7.9 in x 5.3 in (41 mm x 201 mm x 135 mm) | 1.6 in x 7.9 in x 5.3 in (41 mm x 201 mm x 135 mm) | 1.6 in x 7.9 in x 5.3 in (41 mm x 201 mm x 135 mm) |
| Display | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight |
| In-use cover | No | No | No | No | No | No | No | No |
| Legal for Trade | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable |
| Net Weight | 1.1 lb (0.5 kg) | 1.1 lb (0.5 kg) | 1.1 lb (0.5 kg) | 1.1 lb (0.5 kg) | 1.1 lb (0.5 kg) | 1.1 lb (0.5 kg) | 1.1 lb (0.5 kg) | 1.1 lb (0.5 kg) |
| Pan Construction | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Power | 3 AA (LR6) Batteries (Included); AC Adapter (Not Included) | 3 AA (LR6) Batteries (Included); AC Adapter (Not Included) | 3 AA (LR6) Batteries (Included); AC Adapter (Not Included) | 3 AA (LR6) Batteries (Included); AC Adapter (Not Included) | 3 AA (LR6) Batteries (Included); AC Adapter (Not Included) | 3 AA (LR6) Batteries (Included); AC Adapter (Not Included) | 3 AA (LR6) Batteries (Included); AC Adapter (Not Included) | 3 AA (LR6) Batteries (Included); AC Adapter (Not Included) |
| Stabilization Time | 1.5 s | 1.5 s | 1.5 s | 2 s | 1.5 s | 1.5 s | 1.5 s | 1.5 s |
| Tare Range | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction |
| Transportation Case | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory |
| Units of Measurement | Gram; Ounce; Newton | Gram; Ounce; Newton | Gram; Pound:Ounce; Ounce; Newton | Gram; Pound:Ounce; Ounce; Newton | Gram; Pound:Ounce; Ounce; Newton | Gram; Pound:Ounce; Ounce; Newton | Gram; Pound:Ounce; Ounce; Newton | Gram; Pound:Ounce; Ounce; Newton |
| Working Environment | 64°F – 77°F, 80%RH, non-condensing (18°C – 25°C, 80%RH, non-condensing) | 64°F – 77°F, 80%RH, non-condensing (18°C – 25°C, 80%RH, non-condensing) | 64°F – 77°F, 80%RH, non-condensing (18°C – 25°C, 80%RH, non-condensing) | 64°F – 77°F, 80%RH, non-condensing (18°C – 25°C, 80%RH, non-condensing) | 64°F – 77°F, 80%RH, non-condensing (18°C – 25°C, 80%RH, non-condensing) | 64°F – 77°F, 80%RH, non-condensing (18°C – 25°C, 80%RH, non-condensing) | 64°F – 77°F, 80%RH, non-condensing (18°C – 25°C, 80%RH, non-condensing) | 64°F – 77°F, 80%RH, non-condensing (18°C – 25°C, 80%RH, non-condensing) |
| Auxiliary Display Model | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable |
