|Image||SKU||Description||Pan Size||Readability||Capacity||Quantity||Price||Add to Cart|

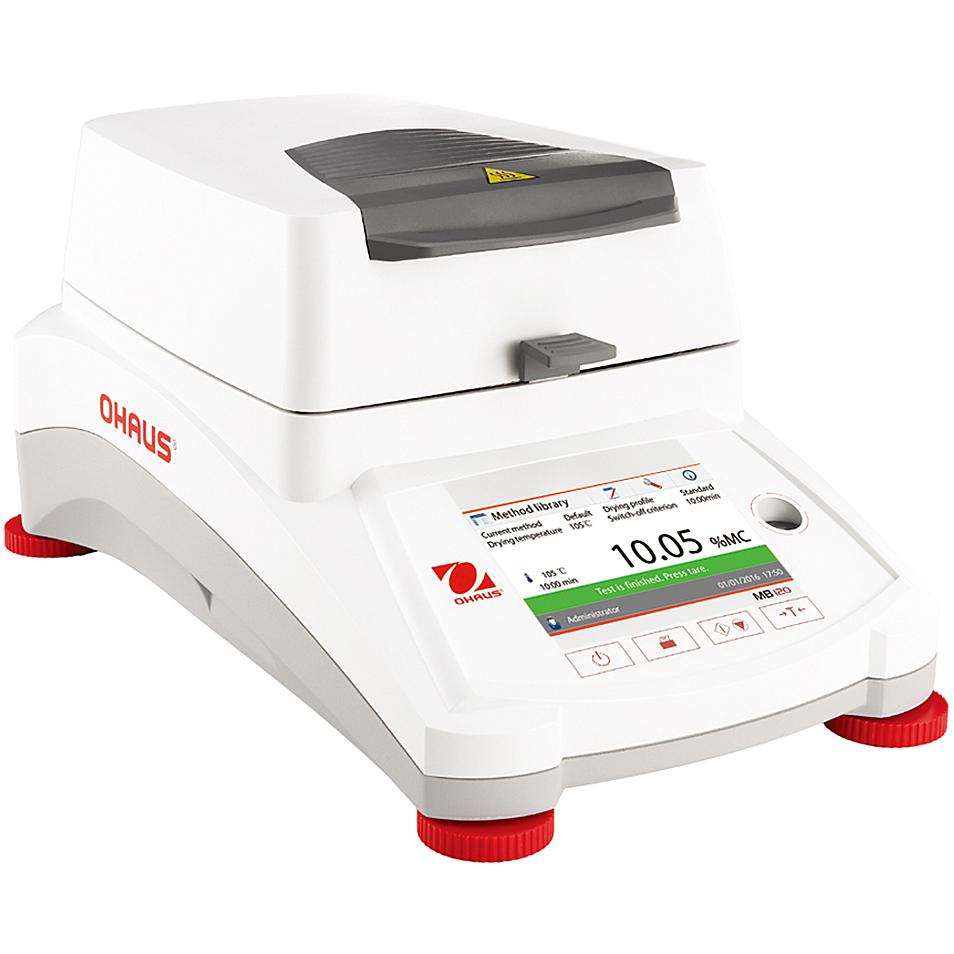

||30241165||Ohaus® MB120 Moisture Analyzer / Balance||3.5 in (90 mm)||1 mg / 0.01%||120 g||1 Each||
The MB120 delivers functionality and precision that you can rely on, and is easy to operate and clean - you can test more samples in less time! Advanced features such as a temperature guide help to analyze optimum drying temperature, and methods and results storage allows statistical analysis of measurements. Three levels of user management ensure data safety - set up and lock temperature settings and method parameters with administrator access.
MB120's Temperature Guide analyzes a sample and determines the optimal drying temperature. Store up to 100 drying methods for easy recall and up to 1000 total results for statistical analysis.
Precisely controlled halogen heating dries samples uniformly, producing repeatable results of 0.01% readability. Four drying profiles & seven shut-off criteria help to perform customized sample tests.
The MB120 features a removable pan handler and sample chamber for easy cleaning. Operating the MB120 is intuitive - simply follow the guided instructions on the touchscreen display.
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
4.3"""" TFT color touchscreen display
Power cord (included)
RS232 with GLP/GMP data output, USB Host and USB Device (included)
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Seven shut-off criteria (manual, timed, autofree %/s, autofree mg/s, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 100 methods and 1000 test results for all methods, user guide, 40° C to 230° C heating temperature range (1° C increments), 13 operational languages
|Maximum Capacity||120 g|
|Readability Moisture Content||1 mg/0.01%|
|Pan Size||3.5 in (90 mm)|
|Heater Type||Halogen Lamp|
|Communication||USB host x 2; USB device; RS232|
|Display||Full-Color 4.3 in Touchscreen WQVGA|
|Heating Profiles||Standard; Ramp; Step; Fast|
|Moisture Range||0 % - 100 %|
|Net Weight||11.53 lb (5.23 kg)|
|Operating Range (Temp.)||10 °C - 40 °C|
|Power||115 v, 60 Hz|
|Sample Size||0.5 g - 120 g|
|Shut-Off Criteria||Manual; Timed; Automatic - Preset Weight Loss/Time; Custom - User Set Weight Loss/Time; Custom-User Set Moisture% Loss/Time|
|Temperature Range||40 °C - 230 °C|
|Units of Measurement||Gram; %MC; %RG; %DC|
|Working Environment||50°F - 104°F, 85%RH, non-condensing (10°C - 40°C, 85%RH, non-condensing)|
