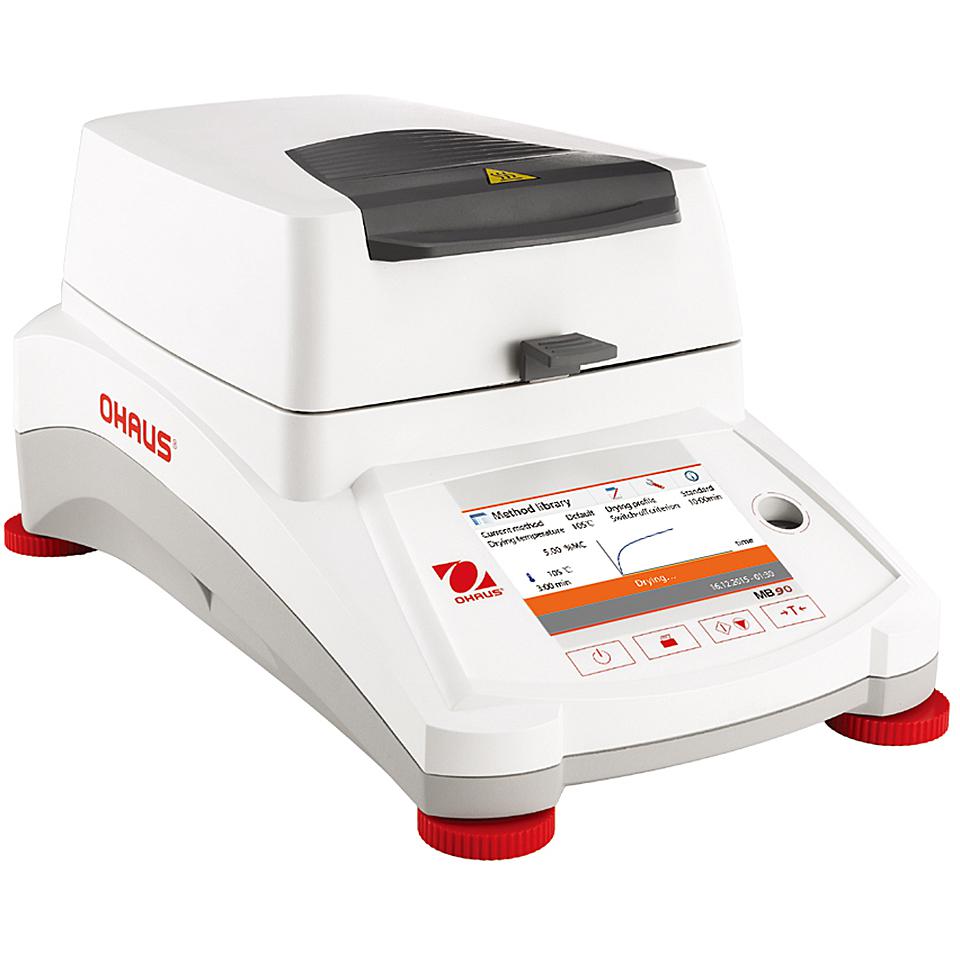

Ohaus® MB90 Moisture Analyzer / Balance
| Image | SKU | Description | Pan Size | Readability | Capacity | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
30241164 | Ohaus® MB90 Moisture Analyzer / Balance | 3.5 in (90 mm) | 1 mg / 0.01% | 90 g | 1 Each |
|
Description
Measuring moisture content has never been easier than with the MB90 Moisture Analyzer. The MB90's halogen heating distributes heat uniformly over the sample and speeds up the drying process, delivering fast and precise measurements. Designed for tool-free cleaning, its components can be easily removed for quick and easy maintenance. Operating the MB90 is intuitive with the icon-driven menu navigation on the touchscreen display.
The MB90's precisely controlled halogen heating dries samples quickly, and ensures uniform heating to yield fast, precise and repeatable results of 0.01% readability.
Designed with effortless maintenance in mind, the MB90 features a removable pan handler and heating chamber components that make cleaning quick and easy - no tools needed.
Icon-based menu navigation on the easy-to-read touchscreen display makes operating the MB90 intuitive. Perform routine sample testing in three easy steps - no training required.
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
4.3"" TFT color touchscreen display
Operation
Power cord (included)
Communication
RS232 with GLP/GMP data output, USB Host and USB Device (included)
Construction
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Design Features
Three shut-off criteria (manual, timed or auto), two drying profiles (standard and fast), storage up to two methods, user guide, 40° C to 200° C heating temperature range (1° C increments), 13 operational languages
Specifications
| Model | MB90 |
| Part # | 30241164 |
| Maximum Capacity | 90 g |
| Readability Moisture Content | 1 mg/0.01% |
| Pan Size | 90 mm |
| Heater Type | Halogen Lamp |
| Communication | USB host x 2; USB device; RS232 |
| Display | Full-Color 4.3 in Touchscreen WQVGA |
| Heating Profiles | Standard; Fast |
| In-use cover | Included |
| Moisture Range | 0 % - 100 % |
| Net Weight | 11.53 lb (5.23 kg) |
| Operating Range (Temp.) | 10 °C - 40 °C |
| Power | 115 v, 60 Hz |
| Sample Size | 0.5 g - 90 g |
| Shut-Off Criteria | Manual; Timed; Auto |
| Tare Range | 0g-225g |
| Temperature Range | 40 °C - 200 °C |
| Test Library | 2 |
| Units of Measurement | Gram; %MC; %RG; %DC |
| Working Environment | 50°F - 104°F, 85%RH, non-condensing (10°C - 40°C, 85%RH, non-condensing) |
