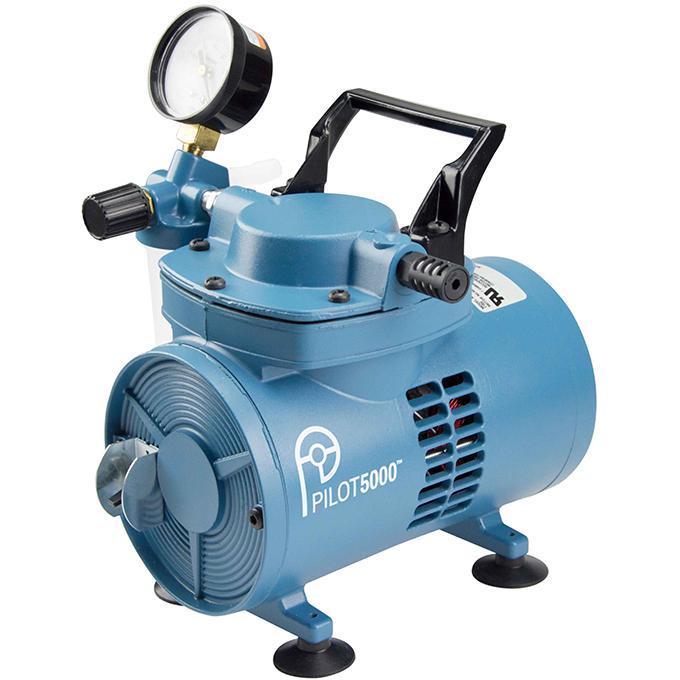

Pilot 5000 Diaphragm Vacuum Pump (Economical, Chemical-Resistant)
| SKU | Description | Compatible Tubing | Maximum Vacuum | Ultimate Pressure | Free Air Displacement | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| TLD5000 | PILOT5000 Vacuum Pump | 0.25 in | 24 in Hg | 150 Torr (200 mbar) | 1.3 cfm (37 L/min) | 115 V, 60 Hz | 1 Each |
|
|
| TLD5000C-02 | PILOT5000 Vacuum Pump | 0.25 in | 24 in Hg | 150 Torr (200 mbar) | 1.3 cfm (37 L/min) | 230 V, 60 Hz | 1 Each |
|
Description
Model PILOT5000 and PILOT5000C-02 diaphragm vacuum pumps are durable and chemical resistant. All contact surfaces are PTFE coated. They feature with a liquid inlet trap and vacuum regulator, making them a perfect choice for vacuum filtration, desiccation, and other mid-range vacuum applications. The TLD5000 and TLD5000C-02 are also bleach resistant, allowing them to be used with cell culture decontamination protocols.
The PILOT5000 has free air displacement at 115V / 60 Hz (50 Hz) and a maximum vacuum of 24"Hg (200 mbar), while the PILOT5000C-02 has free Air Displacement at 230V / 60 Hz (50 Hz). They are recommended for operations utilizing organic/aqueous solvents and/or light acid/base solutions.
The pump can also be used to pressurize up to 18 PSIG and comes with 115V line cord, plug, and convenient power switch.
The PILOT5000 and PILOT5000C-02 are resistant to bleach and acetone vapors allowing it to be used with cell culture decontamination protocols.
Applications
- Vacuum filtration
- Solid phase extraction
- Desiccation
- Microbiology
- Replace water aspirator
- Aspiration
- Degassing
- Vacuum drying
- Fume suction
Features
- Made in the USA
- PTFE contact surfaces
- Bleach safe for cell culture bio decontamination protocols
- Vacuum to 24" Hg
- Flow of 37 lpm
- Liquid inlet trap with ball check valve
- Vacuum regulator
- Exhaust muffler
- Compact, portable
- Quiet
- 1 year warranty
- Diaphragm membrane rated for 15,000 hours use
- 115V, 60Hz 1Ph
- Wt. 10.2 lbs
- 8.8" L x 5.0" W x 8.8" H
Specifications
| Specifications | PILOT5000 Chemical Resistant Vacuum Pump | PILOT5000C-02 Chemical Resistant Vacuum Pump |
|---|---|---|
| Free Air Displacement | CFM (L/min) @ 60Hz 1.3 (37) CFM (L/min) @ 50Hz 1.1 (31) |
CFM (L/min) @ 60Hz 1.3 (37) CFM (L/min) @ 50Hz 1.1 (31) |
| Maximum Vacuum, in. Hg | 24" | 24" |
| Ultimate Pressure, Torr (mbar) | 150 (200) | 150 (200) |
| Maximum continuous Pressure, PSIG | 18 | 18 |
| Tubing Needed, I.D., inches | 1/4" | 1/4" |
| Weight, lbs (kg) | 10.2 (4.6) | 10.2 (4.6) |
| Cord | North American 115V Plug | North American 230V Plug and 230V European Shuko |
| Motor H.P. | 1/5 | 1/5 |
| Rated Power | 160W | 80W |
| Motor Voltage & Frequency | 115V, 60Hz, 1 Phase | @ 230V / 60 Hz (50 Hz) |
| Motor Amps | 3.5 | 1.75 |
| Overall Pump Dimensions L x W x H inches (cm) | 8.75 x 5.0 x 8.75 (22.2 x 12.7 x 22.2) | 8.75 x 5.0 x 8.75 (22.2 x 12.7 x 22.2) |
| Carton Dimensions L x W x H inches (cm) | 15.31 x 12.31 x 12.69 (38.9 x 31.3 x 32.2) | 15.31 x 12.31 x 12.69 (38.9 x 31.3 x 32.2) |
| Shipping Weight, pounds (kg) | 12.4 (5.6) | 12.4 (5.6) |
| Certification | Pump marked CE |
