Process Reaction Vessels, Jacketed, Large Scale
Process Reaction Vessels, Jacketed, Large Scale
FREE SHIPPING

Process Reaction Vessels, Jacketed, Large Scale

Questions? Quotes? Let's chat!
$4,477.85
$4,419 and up
SKU Description Capacity Valve Size Flange ID Overall Height Quantity Price Add to Cart
CG-1930-30 Jacketed Process Reaction Vessels, 5 L Jacket Capacity, 1" Inlet/Outlet 10 L 0-20 mm Sealed 200 mm 490 mm 1 Each
$4,574.30
$4,501
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1930-31 Jacketed Process Reaction Vessels, 5 L Jacket Capacity, 1" Inlet/Outlet 10 L 2 in Detachable 200 mm 490 mm 1 Each
$4,477.85
$4,419
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1930-32 Jacketed Process Reaction Vessels, 7 L Jacket Capacity, 1" Inet/Outlet 15 L 0-20 mm Sealed 200 mm 565 mm 1 Each
$4,878.85
$4,817
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1930-33 Jacketed Process Reaction Vessels, 7 L Jacket Capacity, 1" Inet/Outlet 15 L 2 in Detachable 200 mm 565 mm 1 Each
$4,782.20
$4,722
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1930-35 Jacketed Process Reaction Vessels, 8 L Jacket Capacity, 1" Inlet/Outlet 20 L 0-20 mm Sealed 200 mm 675 mm 1 Each
$5,653.40
$5,579
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1968-61 Jacketed Process Reaction Vessels, 13 L Jacket Capacity, 1" Inlet/Outlet 30 L 2 in Detachable 300 mm 627 mm 1 Each
$9,105.20
$8,961
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1968-81 Jacketed Process Reaction Vessels, 17 L Jacket Capacity, 1" Inlet/Outlet 50 L 2 in Detachable 300 mm 877 mm 1 Each
$10,564.50
$10,386
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1968-95 Jacketed Process Reaction Vessels, 18 L Jacket Capacity, 1" Inlet/Outlet 50 L 2 in Detachable 300 mm 650 mm 1 Each
$12,602.05
$12,376
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1968-97 Jacketed Process Reaction Vessels, 27 L Jacket Capacity, 1.5" Inlet/Outlet 75 L 2 in Detachable 300 mm 899 mm 1 Each
$16,396.55
$16,151
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1968-99 Jacketed Process Reaction Vessels, 32 L Jacket Capacity, 1.5" Inlet/Outlet 100 L 2 in Detachable 300 mm 1114 mm 1 Each
$20,538.20
$20,196
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

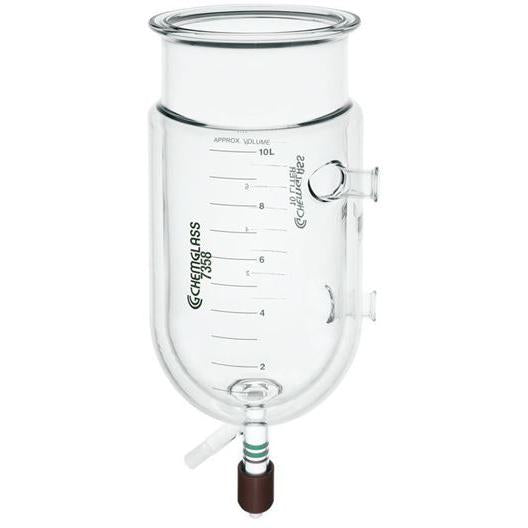

Jacketed large scale process reaction vessels. The 10, 15, and 20L vessels have a 200mm ID flange with an o-ring groove formed in the surface of the flange. The 30, 50, 75, and 100L have a 300mm ID flat ground flange. The inlet/outlet of the vessels are beaded pipe fittings for use with beaded pipe adapters. The 10, 15 and 20L are available with a choice of a 2 beaded pipe valve that is detachable or the 0-20mm valve with 3/4 sidearm that is permanently sealed.

These flush bottom (zero dead space) valves are designed to prevent solids from collecting in the bottom of the vessel. Vessels equipped with the 0-20mm sealed on valve are supplied complete with a TFE plug having Perfluoro chemically resistant o-rings. The 20, 30, 50, 75 and 100L vessels equipped with the detachable zero dead space valve have a lower silicone seal. Vessels are serial numbered and have a graduation scale on both sides showing the approximate volume.
