Reaction Kettle Flanges, Duran, with O-Ring Joints, Flangesgroove
$87
and up
| SKU | Description | Flange ID | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|
| CG-147-01 | Reaction Kettle Flange, Duran, with O-Ring Joint | 60 mm | 1 Each | $87 | |
| CG-147-02 | Reaction Kettle Flange, Duran, with O-Ring Joint | 100 mm | 1 Each | $116 | |
| CG-147-03 | Reaction Kettle Flange, Duran, with O-Ring Joint | 120 mm | 1 Each | $189 | |
| CG-147-04 | Reaction Kettle Flange, Duran, with O-Ring Joint | 150 mm | 1 Each | $209 | |
| CG-147-05 | Reaction Kettle Flange, Duran, with O-Ring Joint | 200 mm | 1 Each | $310 |
Description

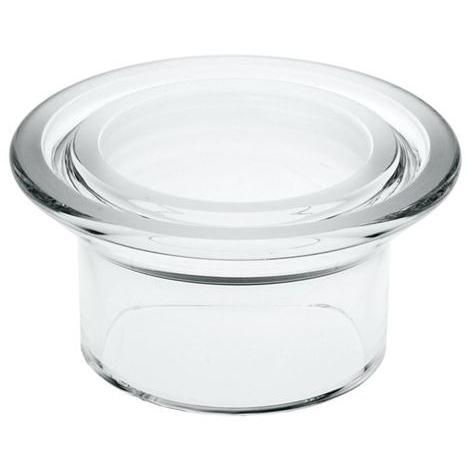

Flange is formed with a groove in the flat portion of the mating surface to accept an O-Ring. The flange also has a ground surface, permitting assembly with either a flat flange or lid blank using grease. In the greased application, the O-Ring groove prevents grease from entering the reaction kettle and causing possible contamination. Outer taper of flange is formed at a 45° angle to accept the clamp.
