Reaction Vessel Lids, 5-Necks, 2-10° Angled Side Necks
$559.75
$531
and up
| SKU | Description | Center Neck | Side Necks | Flange | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| CG-1946-E-01 | Reaction Vessel Lid, 5-Necks, Low-Profile | 24/40 | 2x 24/40, 2 x 2/40 Angled 10° | 100 mm | 1 Each |
|
|
| CG-1946-D-01 | Reaction Vessel Lid, 5-Necks | 24/40 | 2 x 24/40 Vertical, 2 x 24/40 Angled 10° | 100 mm | 1 Each |
|
|
| CG-1946-E-03 | Reaction Vessel Lid, 5-Necks, Low-Profile | 29/42 | 2x 24/40, 2 x 2/40 Angled 10° | 100 mm | 1 Each |
|
|
| CG-1946-D-03 | Reaction Vessel Lid, 5-Necks | 29/42 | 2 x 24/40 Vertical, 2 x 24/40 Angled 10° | 100 mm | 1 Each |
|
|
| CG-1946-E-05 | Reaction Vessel Lid, 5-Necks, Low-Profile | 24/40 | 2x 24/40, 2 x 2/40 Angled 10° | 150 mm | 1 Each |
|
|
| CG-1946-D-05 | Reaction Vessel Lid, 5-Necks | 24/40 | 2 x 24/40 Vertical, 2 x 24/40 Angled 10° | 150 mm | 1 Each |
|
|
| CG-1946-E-11 | Reaction Vessel Lid, 5-Necks, Low-Profile | 45/50 | 2x 24/40, 2 x 2/40 Angled 10° | 150 mm | 1 Each |
|
|
| CG-1946-D-11 | Reaction Vessel Lid, 5-Necks | 45/50 | 2 x 24/40 Vertical, 2 x 24/40 Angled 10° | 150 mm | 1 Each |
|
|
| CG-1946-D-50 | Reaction Vessel Lid, 5-Necks | 45/50 | 2 x 45/50 Vertical, 2 x 60mm O-Ring Flange Angled 20° | 200 mm | 1 Each |
|
Description

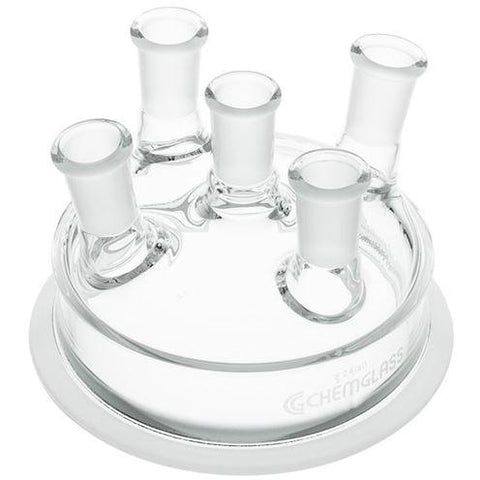

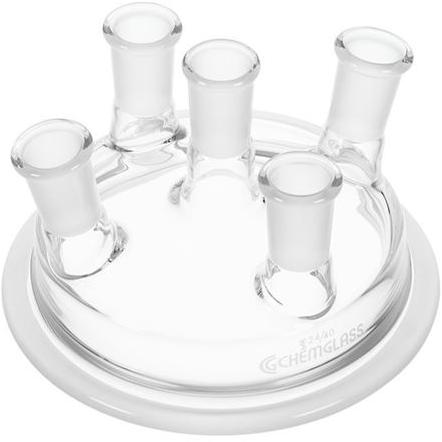

Five neck vessel lid to fit reaction vessels. Two side necks are vertical and two necks have a 10° degree angle. Angled side neck is designed for use with angled distillation adapters. Lid has a flat ground surface allowing it to be greased or used with an o-ring.
