Reaction Vessels, Cylindrical, Unjacketed, Large Scale
SKU Description Capacity Flange ID Valve Size Overall Height Quantity Price Add to Cart
CG-1924-30 Large-Scale Cylindrical Unjacketed Reaction Vessel 10 L 200 mm 0-20 mm Sealed 420 mm 1 Each $1,827
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1924-31 Large-Scale Cylindrical Unjacketed Reaction Vessel 10 L 200 mm 2 in Detachable 420 mm 1 Each $1,774
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1924-32 Large-Scale Cylindrical Unjacketed Reaction Vessel 15 L 200 mm 0-20 mm Sealed 475 mm 1 Each $2,351
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1924-33 Large-Scale Cylindrical Unjacketed Reaction Vessel 15 L 200 mm 2 in Detachable 475 mm 1 Each $2,303
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1924-34 Large-Scale Cylindrical Unjacketed Reaction Vessel 20 L 200 mm 2 in Detachable 510 mm 1 Each $2,743
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1924-35 Large-Scale Cylindrical Unjacketed Reaction Vessel 20 L 200 mm 0-20 mm Sealed 510 mm 1 Each $2,771
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1972-61 Large-Scale Cylindrical Unjacketed Reaction Vessel 30 L 300 mm 2 in Detachable 530 mm 1 Each $3,166
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1972-81 Large-Scale Cylindrical Unjacketed Reaction Vessel 50 L 300 mm 2 in Detachable 810 mm 1 Each $4,009
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

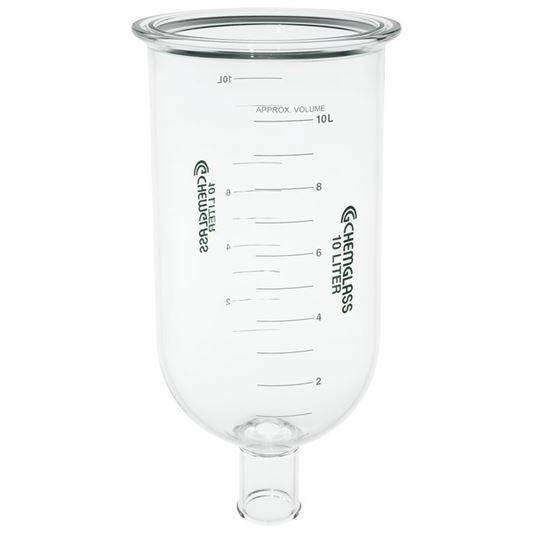

Unjacketed large scale process reaction vessels. The 10, 15, and 20L vessels have a 200mm ID flange with an o-ring groove formed in the surface of the flange. The 30L and 50L have a 300mm ID flat ground flange. The 10, 15, and 20L are available with a choice of a 2 beaded pipe drain that is detachable, or the 0-20mm valve with 3/4 sidearm that is permanently sealed.

These flush bottom (zero dead space) valves are designed to prevent solids from collecting in the bottom of the vessel. Vessels equipped with the 0-20mm sealed on valve are supplied complete with a TFE plug having Perfluoro chemically resistant o-rings. Vessels are serial numbered and have a graduation scale on both sides showing the approximate volume.
