Reaction Vessels, Jacketed, Benchtop, Detachable Drain Valves
$1,169
and up
| SKU | Description | Capacity | Flange | Hose Connection | Valve Size | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| CG-1929-19 | Reaction Vessels, Jacketed, Benchtop, Detachable Drain Valves | 2000 mL | 150 mm Schott O-Ring | 3/4 in Beaded Pipe | 1.5 in | 1 Each | $1,169 | |
| CG-1929-23 | Reaction Vessels, Jacketed, Benchtop, Detachable Drain Valves | 3000 mL | 150 mm Schott O-Ring | 3/4 in Beaded Pipe | 1.5 in | 1 Each |
|
|
| CG-1929-27 | Reaction Vessels, Jacketed, Benchtop, Detachable Drain Valves | 4000 mL | 150 mm Schott O-Ring | 3/4 in Beaded Pipe | 1.5 in | 1 Each | $1,717 | |
| CG-1929-29 | Reaction Vessels, Jacketed, Benchtop, Detachable Drain Valves | 5000 mL | 150 mm Schott O-Ring | 3/4 in Beaded Pipe | 1.5 in | 1 Each | $1,804 |
Description

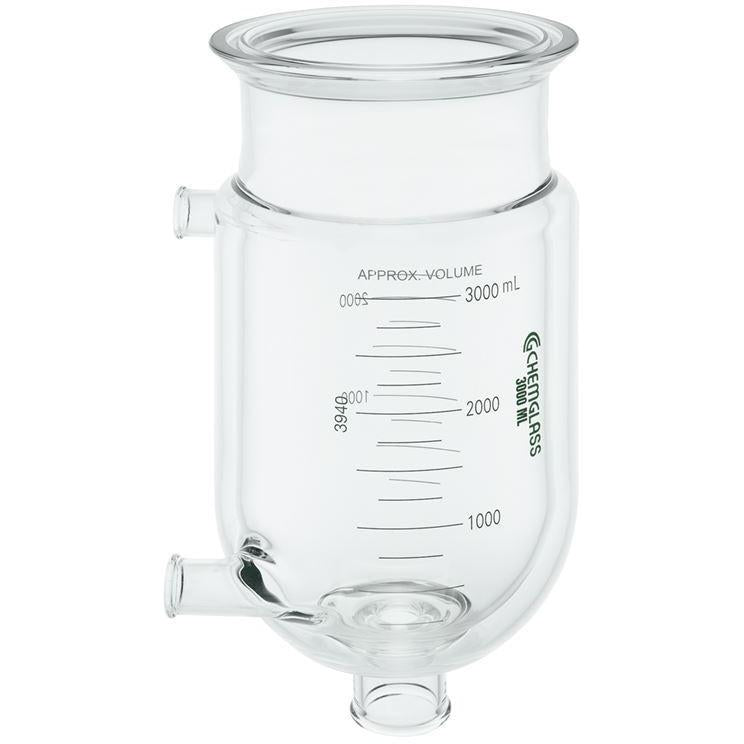

Jacketed reaction vessel with graduation scale on both sides. Vessels are available with our 1.5" beaded pipe detachable drain valve. Reaction vessel is constructed with a flange having a groove formed in the sealing surface of the flange. Flange is also ground to permit a greased seal with any of the lids CG-1940 through CG-1946. Inlet/outlet is a 3/4" beaded pipe fitting. For clamp see CG-141 or CG-141-T. For o-ring see CG-147.
Please note: beaded pipe couplings and adapters must be purchased separately.
