Reaction Vessels, Jacketed, Benchtop, Tool-Free Flat Flanges
Reaction Vessels, Jacketed, Benchtop, Tool-Free Flat Flanges
FREE SHIPPING

Reaction Vessels, Jacketed, Benchtop, Tool-Free Flat Flanges

Questions? Quotes? Let's chat!
$1,048.50
$1,034 and up
SKU Description Capacity Flange Hose Connection Valve Size Quantity Price Add to Cart
CG-1929-X11 Reaction Vessel, Jacketed, Graduated Both Sides 300 mL 100 mm Flat Flange 0-14 mm Stem 1 Each
$1,048.50
$1,034
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-X13 Reaction Vessel, Jacketed, Graduated Both Sides 500 mL 100 mm Flat Flange 0-14 mm Stem 1 Each
$1,095.70
$1,084
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-X15 Reaction Vessel, Jacketed, Graduated Both Sides 1000 mL 100 mm Flat Flange 0-14 mm Stem 1 Each
$1,221.90
$1,210
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-X18 Reaction Vessel, Jacketed, Graduated Both Sides 2000 mL 150 mm Flat Flange 20 mm Extended Tip 1 Each
$1,542.80
$1,530
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-X22 Reaction Vessel, Jacketed, Graduated Both Sides 3000 mL 150 mm Flat Flange 20 mm Extended Tip 1 Each
$1,931.40
$1,921
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-X26 Reaction Vessel, Jacketed, Graduated Both Sides 4000 mL 150 mm Flat Flange 20 mm Extended Tip 1 Each
$2,089
$2,086
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-X28 Reaction Vessel, Jacketed, Graduated Both Sides 5000 mL 150 mm Flat Flange 20 mm Extended Tip 1 Each $2,169
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

Features:

  • Tool-Free™ Jacket Connection Design Allows Hose to be Attached or Removed by Hand Without Using Tools
  • Chemically Resistant Perfluoro O-Rings on All CG-911-A and CG-511 Drain Valves
  • Graduation Scale on Both Sides Showing the Approximate Volume
  • Sidearm on Lower Drain Valve can be Used with a Standard 1/2” or 3/4” TFE, PFA or Polypropylene Compression Fitting
  • All Vessels are Serial Numbered

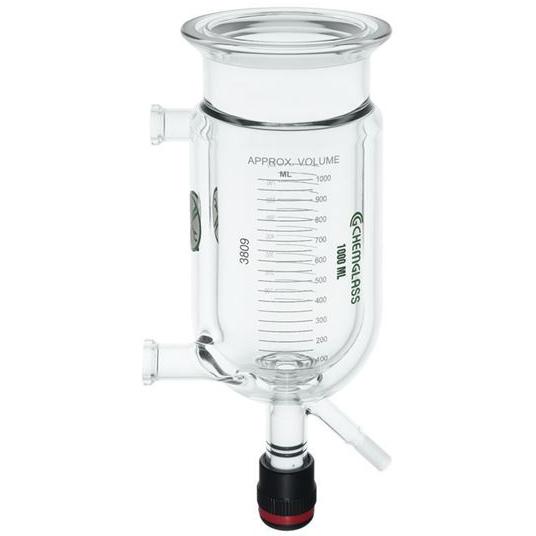

Jacketed reaction vessel with graduation scale on both sides. Inlet/outlet has our tool-free flat flange connector. No Tools Are Necessary to attach hose fittings to the inlet and outlet of the jacket. Vessels with capacities 300mL to 1000mL are available with our new 0-14mm drain valve supplied complete with one-piece plug and control knob with red indicator band used for high temperature applications up to 230° C. A low temperature plug and control knob, designated by a blue indicator band, is available as an optional item listed below, and can be used down to -60° C.

The sidearm on the CG-911-A valve is 1/2” Swagelok®. Vessels with capacities 2L and larger, use the CG-511-02 style drain valve. The sidearm on the CG-511-02 valve is 3/4” Swagelok®. Both valves are designed to seal flush with the bottom of the flask avoiding the dead space normally associated with stopcock drains. This feature permits total mixing and draining of the contents of the reactor. Reaction vessel is constructed with a flange having a groove formed in the sealing surface of the flange. Flange is also ground to permit a greased seal.

Please note: tool-free jacket fittings must be ordered separately
