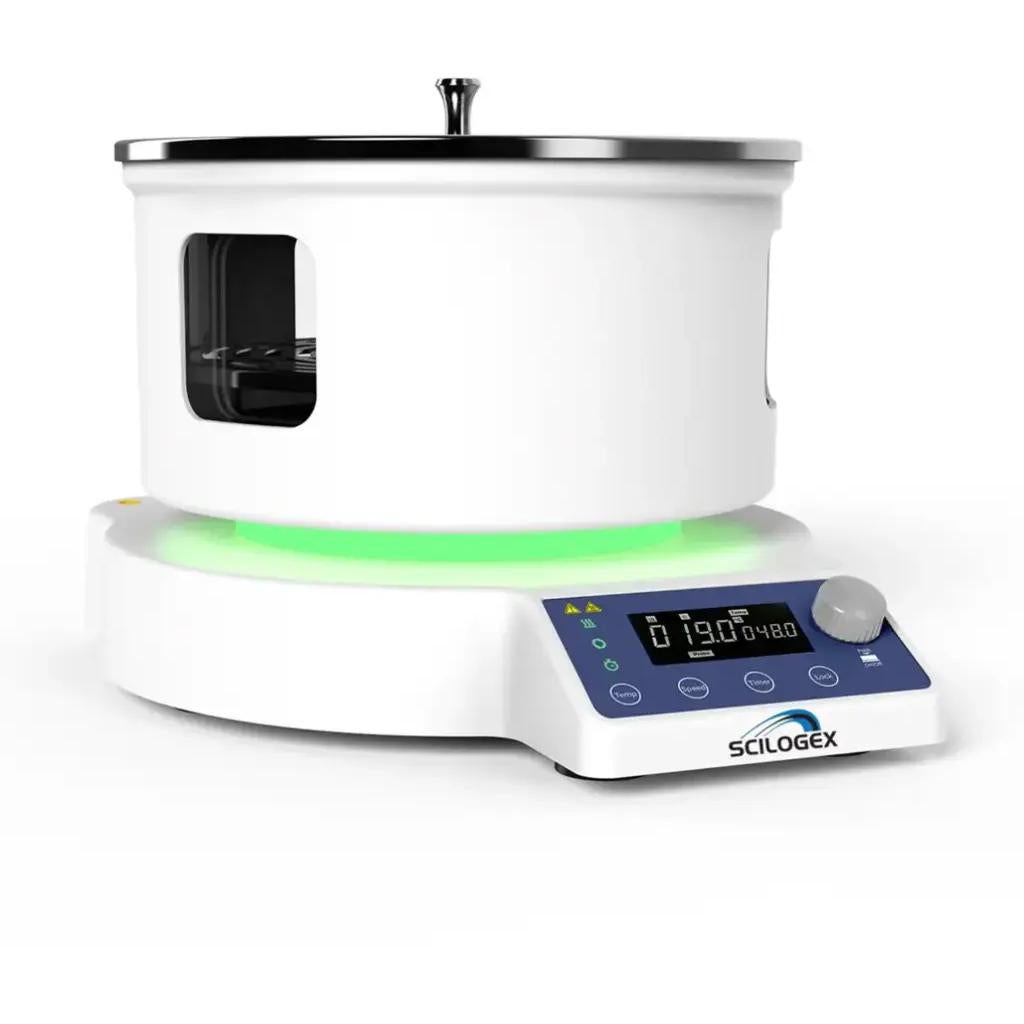

Scilogex SCI220 Digital Magnetic Stirring Heated Water Bath
SKU Description Capacity Temperature Range Electrical Quantity Price Add to Cart
873032419999 SCI220-H3 LCD Digital Magnetic Stirring Heated Water Bath 3 L Ambient 220 °C 100–120V, 60Hz 1 Each
$796
$621
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
873033419999 SCI220-H5 LCD Digital Magnetic Stirring Heated Water Bath 5 L Ambient 220 °C 100–120V, 60Hz 1 Each
$946
$727
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

Features

  • High borosilicate glass liner with window for monitoring reaction product changes.
  • Dual-use stirring bath for water and oil, with optional stirring in the bath ensuring uniform heating of both bath liquid and sample.
  • Features a timer function with a range of 1 min to 99h 59min. Heating continues when the countdown ends but continues stirring to prevent heat damage to the sample.
  • Touch buttons with audible prompts. Working status indicator light: Green during operation, flashing green before reaching set temperature; alarm red.
  • Reversible stirring function.
  • Protection features: dry burning protection, over-current protection, ground fault protection, and over-temperature protection.
  • Residual heat warning function. When the plate temperature is above 50°C, heating is turned off, and the screen flashes "HOT" as a reminder of the high temperature even after the power is off.
  • DC brushless motor, spark-free, long life; low noise, maintenance-free, stable operation.
  • LCD displays speed, time, and temperature parameters clearly and intuitively.

Specifications

Model SCI-220H3 SCI-220H5
Heating pan material High borosilicate glass + stainless steel base High borosilicate glass + stainless steel base
Motor type Brushless DC motor Brushless DC motor
Max. stirring quantity (H₂O) 3 L 5 L
Max. magnetic bar length 40 mm 40 mm
Speed range 100–1500 rpm, ±10 rpm 100–1500 rpm, ±10 rpm
Speed display LCD LCD
Temperature display LCD LCD
Heating temperature range Ambient to 220 °C Ambient to 220 °C
Heating temperature control accuracy ±1 °C ±1 °C
Overheating temperature protection 350 °C 350 °C
Temperature display accuracy 0.1 °C 0.1 °C
External temperature sensor PT1000 PT1000
"Hot" warning 50 °C 50 °C
Buzzer Yes Yes
Positive and negative rotation Yes Yes
Protection class IP21 IP21
Motor rating output 20W 20W
Heating output 850W 850W
Power 900W 900W
Voltage, Frequency 100–120V, 60Hz 100–120V, 60Hz
Bath size Ø220 × 105 mm Ø240 × 135 mm
Maximum flask volume that can be placed 3 L 5 L
Dimensions (W×D×H) 343 × 215 × 283mm 343 × 228 × 283mm
Timer function 1 min – 99h59 min 1 min – 99h59 min
Voltage, Frequency 100–120V, 60Hz 100–120V, 60Hz

Documentation

Product Data Sheets
Scilogex SCI220 Digital Magnetic Stirring Heated Water Bath Literature
AScilogex SCI220 Digital Magnetic Stirring Heated Water Bath Operating Manual
