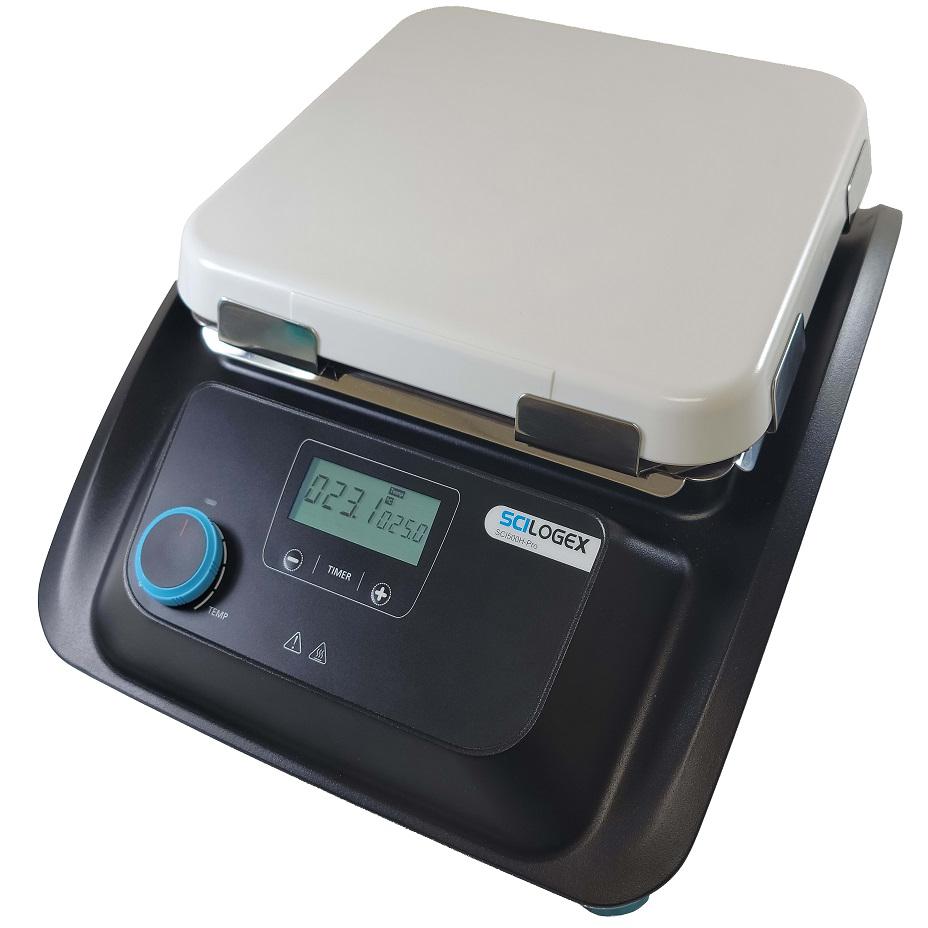

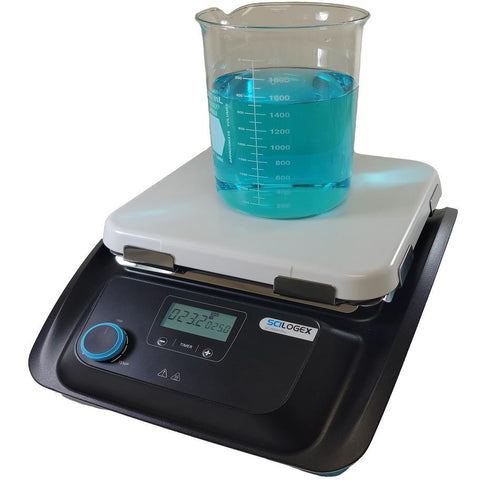

Scilogex SCI500H-Pro LCD Digital Hotplate, 10x10 inch
SKU Description Plate Dimensions Temperature Range Plate Material Electrical Quantity Price Add to Cart
50311321159999 Digital Hotplate 10 x 10 in. to 500 °C Glass Ceramic 110V, 50/60Hz US Plug 1 Each
  • 1
  • 2
  • 3
  • 4
  • 5


Scilogex SCI500H-Pro LCD Digital 10 x 10 Hotplate Features:

  • LCD screen shows temperature, Max. temperature up to 500°C
  • 10-inch glass ceramic work plate provides
  • excellent chemical-resistant performance and most efficient heat transfer
  • External temperature control is possible by connecting the temperature sensor (PT 1000) with an accuracy at ±0.2°C
  • The "Hot" warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
  • Heating temperature: room temperature ~500°C
  • The included SD Card can record the instrument's running data in real time.
  • Timing function: the heat time can be easily set.


Work plate Dimension [WxD] 254x254 mm (10 x 10 inch)
Work plate material Glass ceramic
Heating Position 1
Heating temperature range Room 500°C, increments 1°C
Temperature control accuracy ±1°C (<100°C) ±1% (>100°C)
Temperature, Time display LCD
Timer function 1min to 99h59min
Temperature display accuracy ±0.1°C
External temperature sensor PT1000 (±0.2°C)
"Hot" warning 50°C
Protection class IP21
Power class 1400W
Heating output 1350W
Voltage Frequency 110V, 50/60Hz US Plug
Dimension [WxDxH] 328x424x138 mm
Weight 7.18kg
Permissible Ambient temperature and humidity 5-40°C, 80%RH
