Vacuum Trap, Dual Assembly, #15 O-Ring Joints
SKU Description Quantity Price Add to Cart
V115712 Vacuum Trap, Dual Assembly, #15 O-Ring Joints, Complete Kit 1 Kit
  • 1
  • 2
  • 3
  • 4
  • 5

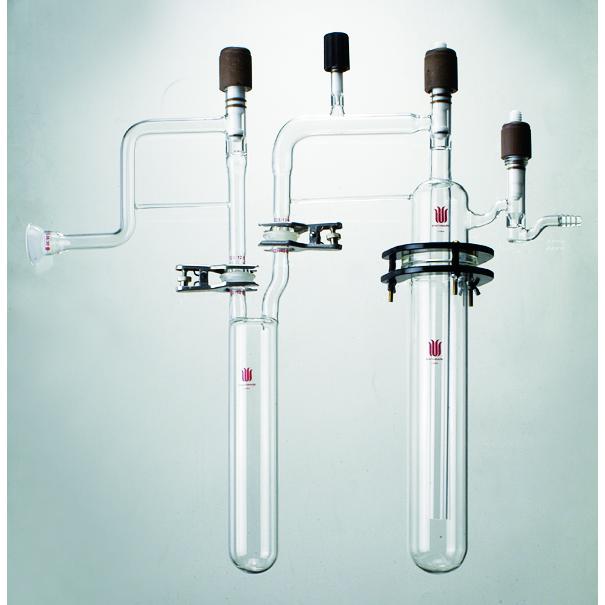

For use with manifolds having #15 O-ring joints on banks. From left to right: first and third valves are S540012 as the shut off. Second valve is S540004 having 9mm O.D. tubing. Fourth valve is S540008. The pre-trap uses two 28/15 ball joints to add more flexibility to the assembly. The post-trap uses a 57 mm O-ring flange connection.

The complete assembly comes with one R116 FKM O-Ring, two #15 O-ring joint clamps, one R331 FKM O-ring and one 57mm horseshoe clamp.
