|SKU||Description||Quantity||Price||Add to Cart|
|AF-0200-01||Complete Schlenk Vacuum Trap, O-Ring, Airfree||1 Each||
|AF-0200-02||Vacuum Trap Body Only, Airfree, Schlenk, 57mm O-Ring Flange||1 Each||
|AF-0200-03||Vacuum Trap Stopper Only, Airfree, Schlenk, 57mm O-Ring Flange||1 Each||

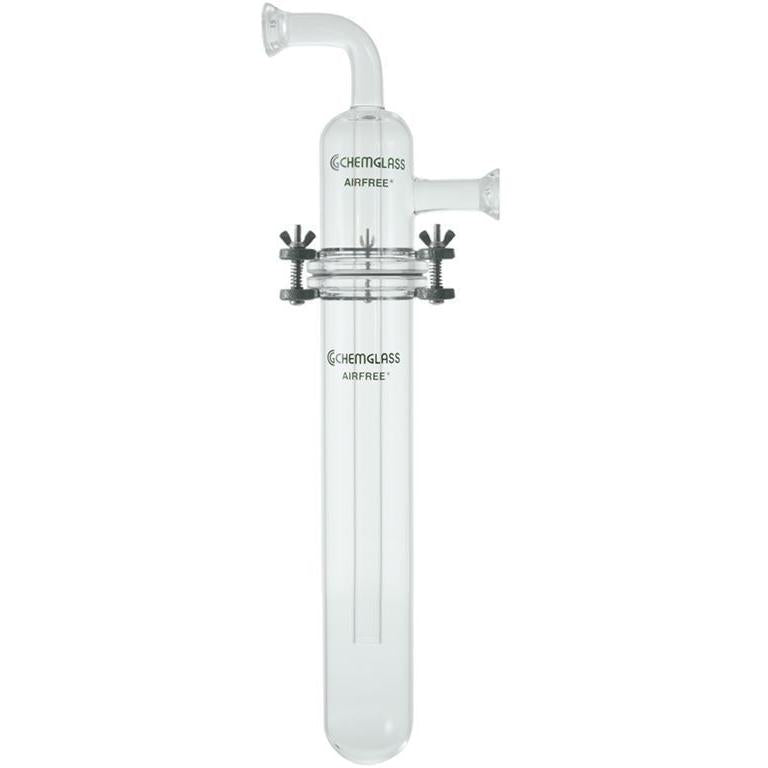

Two-piece vacuum trap with #15 o-ring joints on both the inlet and outlet ports. The seal between the trap stopper and body is made with a 57mm flat o-ring flange for total grease-free operation when used with either the AF-0060 or AF-0061 manifolds. Trap body is 57mm OD x 300mm in length to be used with a 4,300mL dewar flask (CG-1593-05 or CG-1594-05). Complete item consists of the trap stopper and body, one CG-139-02 horseshoe clamp, one #331 Viton o-ring and two #116 Viton o-rings.
