Welch® ChemStar Chemical-Resistant Belt-Drive Vacuum Pumps
Image SKU Description Ultimate Pressure Free Air Displacement Electrical Quantity Price Add to Cart
products/welchnew_1376n_6122012_1a.jpg
1376N-01 ChemStar Chemical Resistant Pump 1 x 10-4 Torr (0.00013 mbar) 10.6 cfm (300 L/min) 115V, 60Hz 1 Each
$5,700
$5,300
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/1400n_01_v10_3_2014_1024x1024_72aefc3b-0bd0-4075-9c0c-9480c814d156.jpg

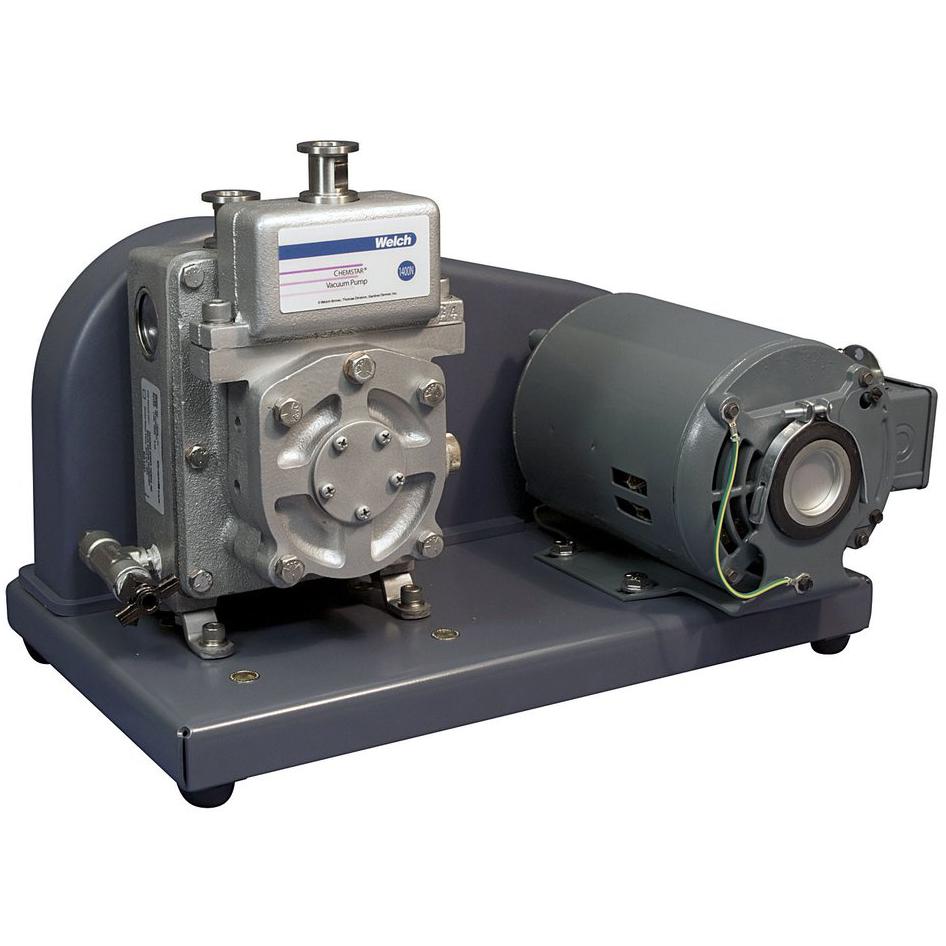

1400N-01 ChemStar Chemical Resistant Pump 1 x 10-4 Torr (0.00013 mbar) 0.9 cfm (25 L/min) 115V, 60Hz 1 Each
$2,820
$2,723
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/1402n_01_wc_16772f02_09d3_4fc5_a5a6_d260161cdeda.jpg
1402N-01 ChemStar Chemical Resistant Pump 1 x 10-4 Torr (0.00013 mbar) 5.6 cfm (160 L/min) 115V, 60Hz 1 Each
$4,055
$3,842
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

ChemStar belt-driven Vacuum Pump is designed to tolerate harsh chemical contamination. Vital pump parts are corrosion resistant. The large oil reservoir with PTFE surfaces dilutes contamination and the low pump rotational speed lessens friction to reduce operating temperature and chemical effects. PTFE surfaces, fluorcarbon gaskets and seals, Nitrogen purge to cool and degas oil. ChemStar system comes with Gold Oil, a synthetic lubricant designed to minimize effects of chemical contaminants.

Key Features

  • Low rotation speed for longer service life
  • Vital parts corrosion resistant
  • Large oil reservoir dilutes contaminants

Specifications

Model Number 1400N 1402N 1376N
Applications Vacuum Manifolds, (Schlenk Lines), High boiling point evaporations (to 195 deg. C), General laboratory. HCl, O3, H2SO4*HBr, HOAC, SOx*Br2, F3CCO2H, H2S*Cl2, CH2O, HNO3*SF6, CF4 Fragments and other gases; Freeze dryers, vacuum ovens. HCl, O3, H2SO4*HBr, HOAC, SOx*Br2, F3CCO2H, H2S*Cl2, CH2O, HNO3*SF6, CF4 Fragments and other gases Freeze dryers, vacuum ovens. HCl, O3, H2SO4*HBr, HOAC, SOx*Br2, F3CCO2H, H2S*Cl2, CH2O, HNO3*SF6, CF4 Fragments and other gases
Type Belt-Drive Vacuum Pump, chemical resistant Belt-Drive Vacuum Pump, chemical resistant Belt-Drive Vacuum Pump, chemical resistant
Free Air Displacement cfm (l/min.) @60Hz 0.9(25) 5.6(160) 10.6(300)
Ultimate Pressure 1 x10-4(0.00013) 1 x 10-4(0.00013) 1 x 10-4(0.00013)
Pump RPM 580 525 525
Oil Capacity 0.62(0.59) 2.25(2.1) 2.5(2.37)
Motor Horsepower (watts) 1/3(250) 1/2(370) 1(750)
Adjustable Vac. / Gas Ballast Yes Yes Yes
Tubing Needed 7/16(11) 13/16(21) 13/16(21)
ISO Exhaust / Intake Flange NW 16 NW 25 NW 25
Overall Dimensions LxWxH in. (cm) 17.8x9x12.6 (45.2x22.9x32) 19.3x14.1x15.4 (49x35.3x39.1) 19.3x12.3x15.6 (49x31.2x39.6)
Ship Weight 71(32.3) 133(60.5) 181(82.3)
Shipping Carton Dimensions LxWxH in. (cm) 20.5x13.8x14.5 (52.1x35.1x36.8) 22.5x15.5x19.5 (57.2x39.4x49.5) 22x18x19 (59.5x45x48)
