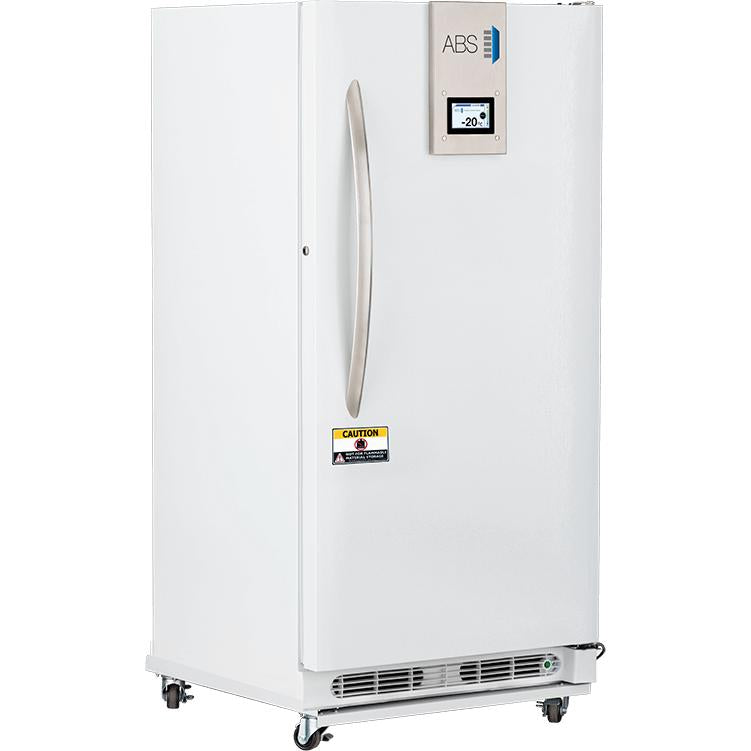

ABS TempLog Premier Manual Defrost Freezers
$15,132
$11,302
and up
| Image | SKU | Description | Capacity | Temperature Range | Defrost Type | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
ABT-MFP-30-TS | ABS TempLog Premier Manual Defrost Freezer | 30 cu ft | -15 to -25 °C | Manual | 115V, 60Hz, 6A, 1/3HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-MFP-3030-TS | ABS TempLog Premier Manual Defrost Freezer | 30 cu ft | -27 to -33 °C | Manual | 115V, 60Hz, 10.7A, 1HP, UL/C-UL Listed | 1 Each |
|
Description
ABS TempLog Premier Manual Defrost Freezers are purpose-built for scientific and medical applications. Units feature a digital microprocessor temperature controller which allows for the precise temperature management necessary for critical samples and supplies. A manual defrost design prevents product damaging temperature spikes from defrost cycles.
Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The Touchscreen temperature display and alarm module offers the latest in advanced temperature control and data logging. Industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller. Periodic manual defrosting is required.
Features
- Inner "fast-freeze compartments" with doors for temperature maintenance and recovery
- Microprocessor Temperature Controller
- Adjustable Operating Temperature Range: -15°C to -25°C
- Touchscreen Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
- Password-protected Control Panel
- Sample simulated digital temperature display; .1° Resolution
- Adjustable temperature display in Celsius or Fahrenheit
- Active Temperature Scale Bar Display
- Resettable 1-point Min/Max History
- Digital 24-hour Temperature Chart
- Temperature Data Logging
- USB Port for Data Transfer and Software Updates
- Real-time Operational Display Clock
- 4-20mA Output
- Electronic Troubleshooting Guide
- Electronic QR Code to access owner’s manual & technical support contact information
- Adjustable Alarm Volume
- Audible and Visual High/Low Temperature Alarms
- Sensor Error Alarm
- One probe access port (3/8")
- White textured cabinet and door
- High density urethane foam cabinet and door insulation
- CFC-free refrigerant, foam insulation and packaging
- Three year parts and labor warranty, plus additional two year compressor parts warranty
- Manual defrost
- UL/C-UL listed
- NOTE: All products are designed to operate in ambient room temperatures not to exceed 75°F/50% RH (relative humidity). Failure to maintain these conditions may result in operational and/or performance issues
- Power Failure Alarm
- Door Ajar Alarm
- Low Battery Alarm
- Operation Indicator
- Alarm Validation (audible, visual, and remote alarm)
- Alarm Mute with Ring Back
- Remote Alarm Contacts
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handle
- Caster platform (4")
Specifications
| Part # | Capacity (cu ft) | Temperature Range | Defrost | Doors | Shelves | W (in) | D (in) | H (in) | RL | Volts | Hertz | H.P. | Amps | Int Doors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ABT-MFP-14-TS | 14 | -15°C to -25°C | Manual | 1 Solid | 3 Fixed | 29.875 | 32.75 | 66 | R134a | 115 | 60 | 0.33 | 5 | 4 |
| ABT-MFP-17-TS | 17 | -15°C to -25°C | Manual | 1 Solid | 3 Fixed | 34 | 30.75 | 71.5 | R134a | 115 | 60 | 0.33 | 5 | 4 |
| ABT-MFP-20-TS | 20 | -15°C to -25°C | Manual | 1 Solid | 4 Fixed | 34 | 32.75 | 77.25 | R134a | 115 | 60 | 0.33 | 5 | 5 |
| ABT-MFP-2030-TS | 20 | -27° to -33°C | Manual | 1 Solid | 4 Fixed | 34 | 32.75 | 77.25 | R134a | 115 | 60 | 0.33 | 5 | 5 |
| ABT-MFP-30-TS | 30 | -15°C to -25°C | Manual | 1 Solid | 4 Fixed | 35.75 | 34.25 | 76.5 | R404a | 115 | 60 | 0.33 | 6 | 5 |
| ABT-MFP-3030-TS | 30 | -27° to -33°C | Manual | 1 Solid | 4 Fixed | 35.75 | 34.25 | 76.5 | R404a | 115 | 60 | 1 | 10.7 | 5 |
