ABS Ultra Low-Temp Freezers
$20,758
$15,499
and up
| Image | SKU | Description | Capacity | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
ABT-115V-1786 | ABS Ultra Low-Temp Freezer | 17 cu ft | -50 to -86 °C | 115V, 60Hz, 16A, ½ x ½ HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-230V-1786 | ABS Ultra Low-Temp Freezer | 17 cu ft | -50 to -86 °C | 230V, 60Hz, 10A, ½ x ½ HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-115V-2186 | ABS Ultra Low-Temp Freezer | 21 cu ft | -50 to -86 °C | 115V, 60Hz, 16A, ½ x ½ HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-230V-2186 | ABS Ultra Low-Temp Freezer | 21 cu ft | -50 to -86 °C | 230V, 60Hz, 10A, ½ x ½ HP, UL/C-UL Listed | 1 Each |
|
|
|
ABT-230V-2586 | ABS Ultra Low-Temp Freezer | 25 cu ft | -50 to -86 °C | 230V, 60Hz, 10A, ½ x ½ HP, UL/C-UL listed | 1 Each |
|
Description

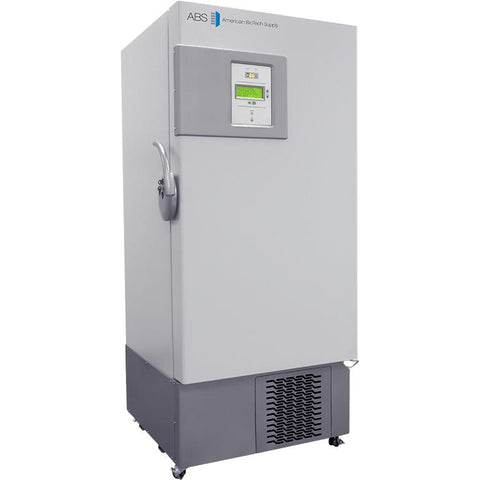

ABS Ultra Low-Temperature Freezers deliver rich features and benefits for the most demanding cold storage applications. Designed to utilize standard racks, this unit offers high efficiency with low noise by utilizing two high efficiency compressors that keep decibel levels low, while still having 300 BTUh reserve capacity.
The interior of the unit features a triple gasket seal, vacuum relief port, five double walled insulated doors & 5.5 to 6" of Urethane insulation in critical areas. Units are made in the USA and are UL and C-UL listed.
Warnings
- Periodic manual defrosting is required.
- All products are designed to operate in ambient room temperatures not to exceed 75°F/50% RH (relative humidity). Failure to maintain these conditions may result in operational and/or performance issues
Features
- Microprocessor temperature controller
- Touch pad keys and four line display for easy programming
- Large LED temperature readout
- Swivel casters (4")
- Audible and visual alarms with silence key for audible alarms
- Programmable high and low temperature alarm set points
- Programmable access code to limit access to set points and controller configuration
- Automatic voltage boost to compensate for low line voltages
- Normally open, normally closed alarm contacts and 4-20mA signal available to connect to central alarm system
- RS-232 serial output
- Battery backup to support temperature monitoring and alarms
- Temperature Range: -50°C to -86°C
- Cam action handle for one hand latching of exterior door.
- Handle supplied with key lock and door switch for audible and visual alarm.
- Heavy duty swivel casters with locks
- Vacuum relief port for quick access after door closures
- Five insulated inner doors
- Cascade refrigeration system
- CFC Free Refrigerant
- UL Listed
- Made in the USA
Specifications
| Part # | Capacity (cu ft) | Temperature Range | Defrost | Doors | Shelves | W (in) | D (in) | H (in) | RL | Volts | Hertz | H.P. | Amps | Int Doors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ABT-115V-1786 | 17 | -50° to -86°C | Manual | 1 Solid | 4 Adj. | 37.6 | 36.3 | 79.6 | n/a | 115 | 60 | .5 x .5 | 16 | 5 Insulated |
| ABT-230V-1786 | 17 | -50° to -86°C | Manual | 1 Solid | 4 Adj. | 37.6 | 36.3 | 79.6 | n/a | 230 | 60 | .5 x .5 | 10 | 5 Insulated |
| ABT-115V-2186 | 21 | -50° to -86°C | Manual | 1 Solid | 4 Adj. | 43.3 | 36.3 | 79.6 | n/a | 115 | 60 | .5 x .5 | 16 | 5 Insulated |
| ABT-230V-2186 | 21 | -50° to -86°C | Manual | 1 Solid | 4 Adj. | 43.3 | 36.3 | 79.6 | n/a | 230 | 60 | .5 x .5 | 10 | 5 Insulated |
| ABT-230V-2586 | 25 | -50° to -86°C | Manual | 1 Solid | 4 Adj. | 49 | 36.6 | 79.6 | n/a | 230 | 60 | .5 x .5 | 10 | 5 Insulated |
