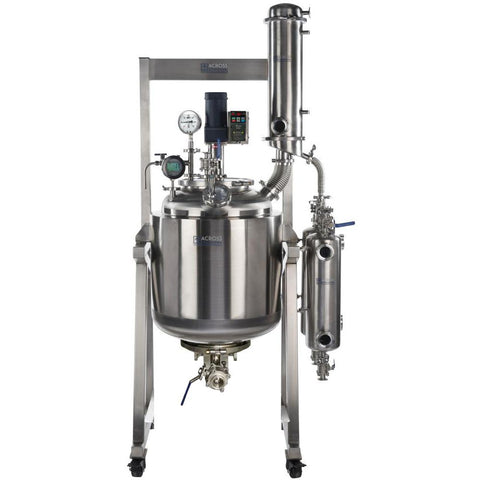

Ai 100L Dual-Jacketed, 316L-Grade Stainless Steel Filter Reactor
$25,990
$24,690
and up
| SKU | Description | Motor Type | Collection Tank | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|
| SR100F.E.K10 | 100L Dual-Jacketed Stainless Steel Filter Reactor | Electric Stirring Motor (ETL, UL, CSA) | Dual 10L 316L SST tanks w/ manifold | 1 Kit |
|
|
| SR100F.E.K50 | 100L Dual-Jacketed Stainless Steel Filter Reactor | Electric Stirring Motor (ETL, UL, CSA) | 50L 304 SST tank w/ dolly | 1 Kit |
|
|
| SR100F.E.K100 | 100L Dual-Jacketed Stainless Steel Filter Reactor | Electric Stirring Motor (ETL, UL, CSA) | 100L 304 SST tank w/ dolly | 1 Kit |
|
|
| SR100F.PR.K10 | 100L Dual-Jacketed Stainless Steel Filter Reactor | Pneumatic Stirring Motor (C1D1 peer review by PSI) | Dual 10L 316L SST tanks w/ manifold | 1 Kit |
|
|
| SR100F.PR.K50 | 100L Dual-Jacketed Stainless Steel Filter Reactor | Pneumatic Stirring Motor (C1D1 peer review by PSI) | 50L 304 SST tank w/ dolly | 1 Kit |
|
|
| SR100F.PR.K100 | 100L Dual-Jacketed Stainless Steel Filter Reactor | Pneumatic Stirring Motor (C1D1 peer review by PSI) | 100L 304 SST tank w/ dolly | 1 Kit |
|
Description
Ai 316L Grade Stainless Steel Reactor Features:
- Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
- All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
- Shell and tube heat exchanger with 70 tubes for the best condensing results
- ElectroPolished internal chamber
- Greatly reduces surface roughness by leveling micro-peaks and valleys
- Improved vacuum pressures, out-gassing rates, and pumping speed
- Prolong equipment lifespan by reducing friction and wear
- Much better sterilized and semiconductor grade surface
- Detachable condenser and collection tanks
- Dual collection tanks with big sight glass allows you to drain without breaking vacuum

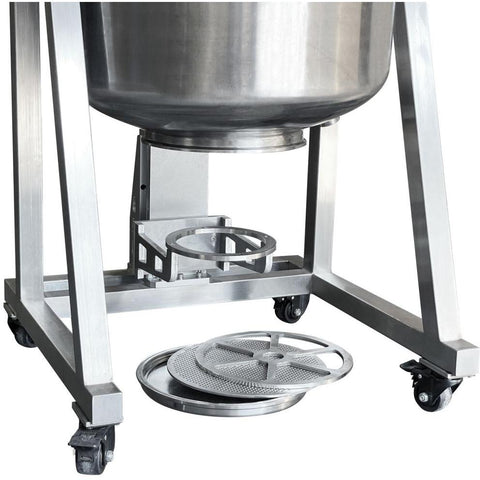

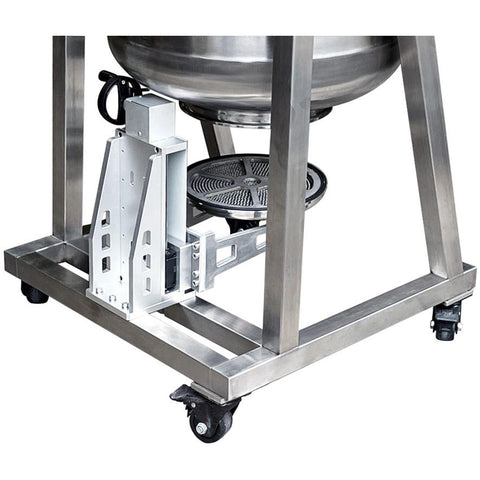

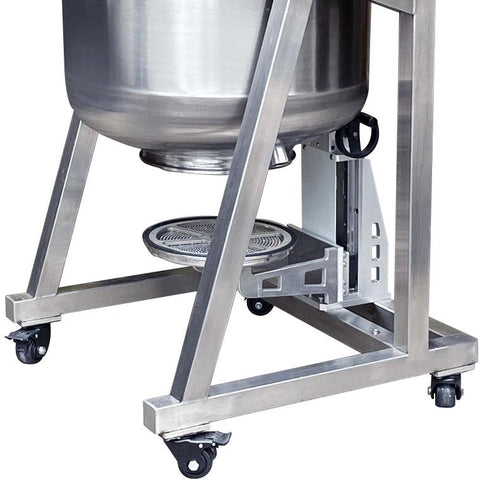

- High drain port clearance for easy draining or added filtration
- Large ports (top 12" bottom 6") allows easy chamber cleaning
- Top placed vacuum port on condenser provides better flow and condensing results
- No messy cable, with space saving integrated stirring motor controller
- Heavy-duty stainless-steel frame with swivel casters
- Built-in flashlight gives you a clear view inside the chamber
- Positive/negative pressure gauge
- Matte finish stainless steel
- Customizable lid for various application
- Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
- Choice of bolted or pin clamp for various pressure applications
- Flexible bellow condenser connection reduces shipping damage
- Electric motor and controller model is ETL certified to UL and CSA standards (optional)
- Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane. (optional)
CAUTION!
- Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
- Always leave ample fluid space in heater reservoir to allow fluid heat expansion
- Always keep system vacuum passage or drain valve open when heating up circulation jackets
- Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits
| Model | SR100F |
|---|---|
| Electric Stirring Motor (optional) | 220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP Rotation: 450 rpm max. (±8%) Starting torque: 3.0 N.m Rated toruqe: 1.54 N.m Built-in gearbox ratio: 3:1 to 180:1 Controller: Delta, UL listed |
| Pneumatic Stirring Motor (optional) | Power: 1/4 HP Rotation: 450 rpm max. (±8%) Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa) Working temperature: -10C to +70C For constant use: set rpm to 80% of maximum rpm Motor lubricant: Daphne Eponex EP-No. 1; Check/replenish/replace every 500 hours Air lubricant Type: JIS K2213-1 (ISOVG32); Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32; Speed: 2-3 drops per minute For safety purpose, detach compressed air supply when not in use, left un-attended or at night Do not run motor un-loaded Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action. Make sure exhaust port/hole is clear from any debris or blockage Check every 2-3 days: Air Lubricant, Air Filter water drain |
| Port Configuration | Lid: 12" triclamp Center motor port: 3" triclamp Drain port: 6" triclamp Drain port on/off valve: 2" triclamp Vacuum port: 1.5" triclamp Condenser recirculating fluid port: 1/2" female NPT Vessel jacket recirculating fluid ports: 1" female NPT 50L/100L collection tank lid: 6" tri-clamp, with 1.5" tri-clamp x 4 |
| Main Vessel | Volume: 100L (min. fill volume 25L) Material: 316L grade stainless steel Interior finish: ElectroPolished |
| Agitator | Structure: propeller, 3-blade, dual-layer (standard) Material: 316L grade stainless steel Detachable length: 20 inches |
| Center Fluid Jacket | Volume: 22L Material: 304 grade stainless steel |
| Outer Insulation Jacket | Sealed Material: 304 grade stainless steel |
| Collection Tank | Option 1: 10L x 2, 316L stainless steel, with manifold Option 2: 50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly) Option 3: 100L x 1, 304 stainless steel, with dolly (15.5" diameter, 43" height, 49.5" with dolly) |
| Material | All wetted parts 316L grade stainless steel on main reactor body; Rest of reactor in 304 grade stainless steel, including motor coupling, triclamps, temp/pressure gauge adapters, and chassis. |
| Main Condenser | Style: shell and tube heat exchanger Number of tubes: 70 Condensing area: 0.89 m2 |
| Pressure | Ultimate vacuum level: 1 Torr |
| Temperature Range | -55°C to +250°C (-67°F to +482°F) |
| Temperature Sensor/Display | Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp |
| Sealing Gasket | Food grade Viton |
| Main Mounting Frame | Heavy duty 2 x 2" 304 grade stainless steel, mounted on four casters |
| Drain Port Ground Clearance | Drain port: 19.5 inches Drain valve: 13 inches |
| Unit/Shipping Weight | 255 lbs / 350 lbs |
| Unit/Shipping Dimensions | 38 x 32 x 82" (W x D x H) |
| Compliance | ETL tested to UL and CSA standards C1D1 peer review by PSI (optional) |
