Ai DeepFreeze Upright Freezers, -40°C
Image SKU Description Capacity Temperature Range Defrost Type Electrical Quantity Price Add to Cart
products/d16_left_dfb9ffbb-0c0d-42d5-af1d-bc5d23cba0e4.jpg

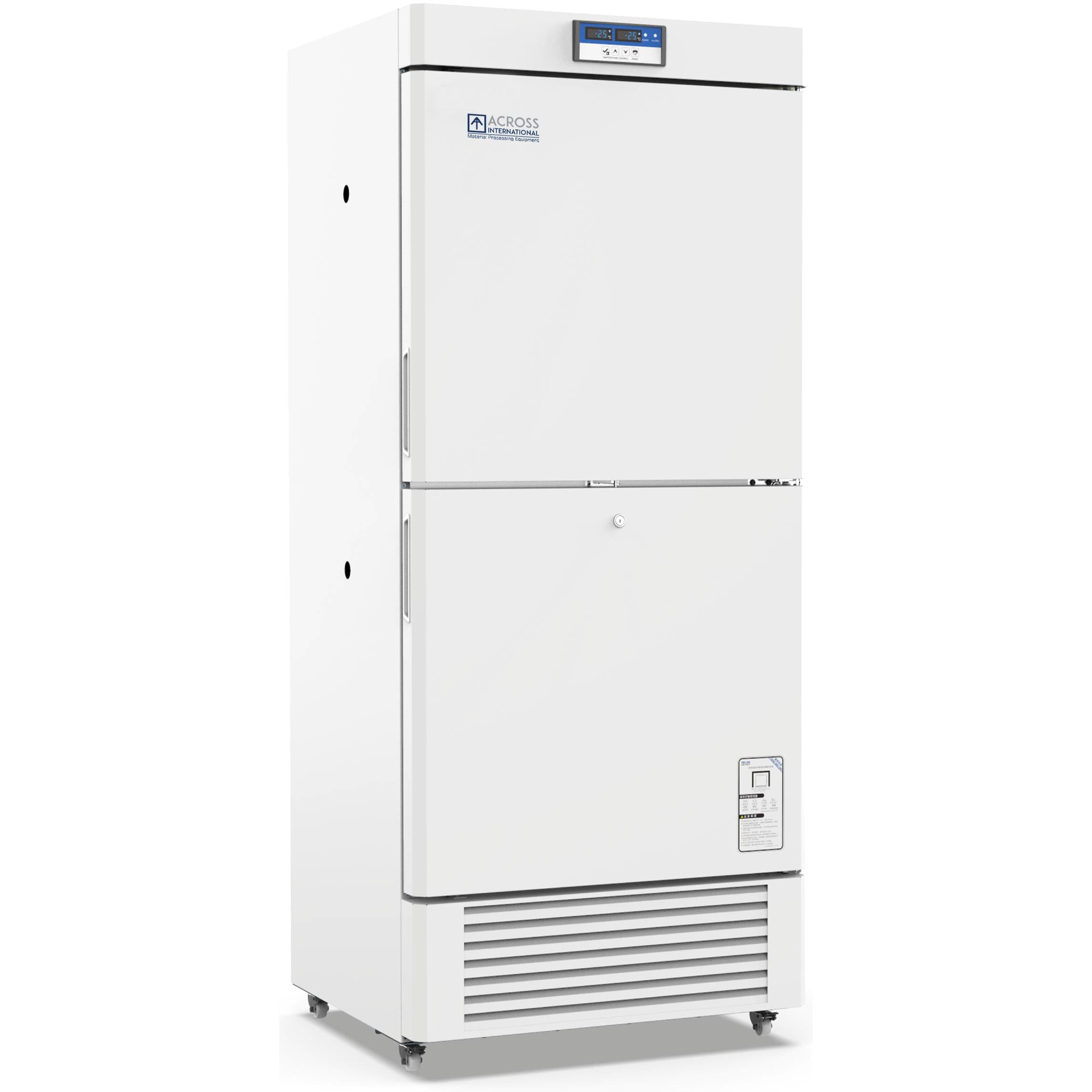

D16.110 Ai DeepFreeze Upright Freezer 16 cu ft -20 to -40 °C Manual 110V (±10%) 60Hz 1-Ph 8.89A 1 Each
$4,990
$4,596
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/d27_side_blue_179430b7-a73b-459f-99d5-9c874faa5961.jpg

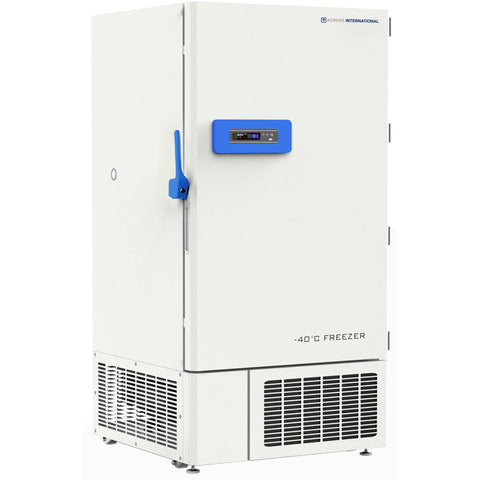

D27.110 Ai DeepFreeze Upright Freezer 27 cu ft -20 to -40 °C Manual 110V (±10%) 60Hz 1-Ph 1320W 12A 1 Each
$7,990
$7,359
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/d35_side_blue_282c325a-6760-484c-933d-b0b2ad2a6fd3.jpg

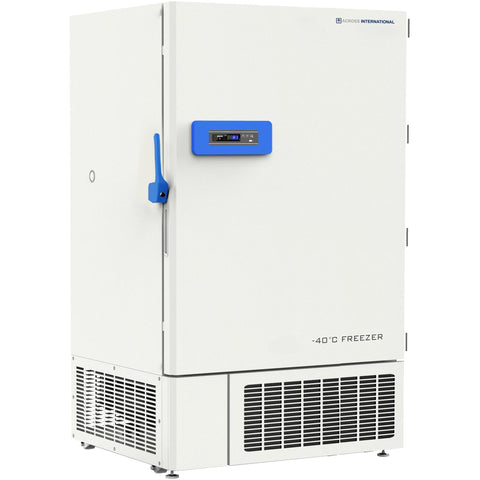

D35.110 Ai DeepFreeze Upright Freezer 35 cu ft -20 to -40 °C Manual 110V (±10%) 60Hz 1-Ph 1375W 12.5A 1 Each
$9,990
$9,201
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The Ai DeepFreeze series -40C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.

Features

  • Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum
  • High/low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
  • Dual silicon sealing gaskets for ultra airtight operation
  • Battery backup for controller
  • Built-in remote alarm and RS-485 port
  • USB interface for data export and storage
  • Environmentally friendly refrigerant
  • Use only RoSH compliant non-toxic components and materials

Important!

  • Stable, well-ventilated platform with no excessive dust
  • Keep freezer at least 12 inches from any walls or ceiling
  • Use dedicated power, do not share outlet
  • Extension power cable should be less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spill and do NOT use freezer outdoor
  • Clean condenser fins and remove frost inside chamber at least once a month

Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.

Specifications

Model D16 D27 D35
Electrical requirements 110V (±10%) 60Hz 1-Phase 8.89A 110V (±10%) 60Hz 1-Phase 1320W 12A 110V (±10%) 60Hz 1-Phase, 1375W 12.5A
Temperature range -20°C to -40°C -20°C to -40°C -20°C to -40°C
Chamber capacity 15.9 cu ft 27.1 cu ft 35 cu ft
Number of compressors 2 2 (SECOP) 2 (SECOP)
Defrost mode manual manual manual
Style parallel parallel parallel
Chamber Dimensions 25.5 x 22.5 x 24.5" (WxDxH) 36.5 x 27.5 x 51" 40 x 27 x 54"
Number of chambers two one one
Chamber material stainless steel 304 stainless steel 304 stainless steel
Shelf quantity 2 per chamber; 4 total three adjustable shelves (4 compartments) three adjustable shelves (4 compartments)
Shelf style fixed adjustable adjustable
Shelf material stainless steel 304 stainless steel 304 stainless steel
Doors two one with dual sealing gasket, lock-able; Inner door: four, each with one sealing gasket one with dual sealing gasket, lock-able; Inner door: four, each with one sealing gasket
Working environment 16°C to 32°C, <80% Rh, Altitude: < 2000 m / 6561 Ft 16°C to 32°C, <80% Rh, Altitude: < 2000 m / 6561 Ft 16°C to 32°C, <80% Rh, Altitude: < 2000 m / 6561 Ft
Access port two two, one on the side and one in the back, one inch diameter two, one on the side and one in the back, one inch diameter
Communication Remote alarm 4-20mA transmitter, USB, RS-485 Remote alarm 4-20mA transmitter, USB, RS-485 Remote alarm 4-20mA transmitter, USB, RS-485
Built-in swivel casters Four, two with brakes Four, with two leveling feet Four, with two leveling feet
Noise level 52 dBA 52 dBA 52 dBA
Unit weight / Shipping weight 320 lbs / 345 lbs 635 lbs / 866 lbs 735 lbs / 964 lbs
Unit dimensions / Shipping dimensions 30.5 x 26.5 x 73" / 37.5 x 34.5 x 80" (WxDxH) 47.5 x 41.5 x 77.5" / 51 x 46 x 85" (WxDxH) 54 x 41.5 x 78.5" / 59 x 45 x 86" (WxDxH)
Safety Compressor over-temp protection
Compressor power surge delay protection
Power failure protection
Low battery, door open, filter clogging, system failure, sensor error, condenser overheat alarms
External door with lock
Warranty One year One year One year
