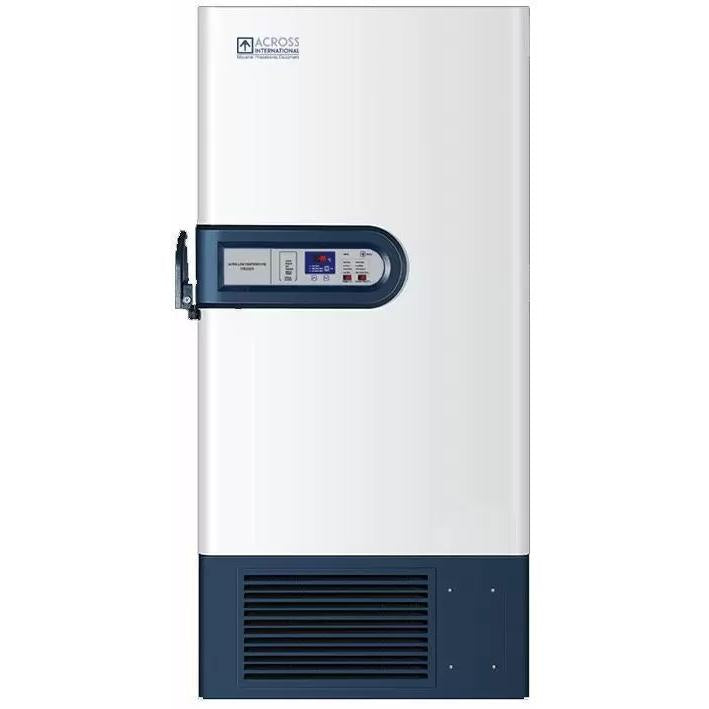

Ai RapidChill Ultra-Low Upright Freezers, -86°C, 26 cu ft
Image SKU Description Capacity Temperature Range Electrical Quantity Price Add to Cart
files/g26h_front_g26h_1_336f6b6b-93a1-4bf5-9b46-c240dc2fcf5b.jpg
G26H Ai Ultra-Low Upright Freezer 25.7 cu ft -40 to -86 °C 110V (±10%) 60Hz, 1-Ph, 1000W, UL/CSA Certified 1 Each
$14,990
$14,240
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The Ai RapidChill series -86°C ultra-low upright ULT freezers is designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.

Features:

  • CDC and VFC compliant, great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
  • UL certified
  • State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
  • Safe, environmentally friendly, energy efficient, and easy to acquire HC refrigeration system
  • Remote alarm, RS-485, 4-20mA transmitter
  • Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
  • Digital temperature display with microprocessor-based temperature controller
  • Dual silicon sealing gaskets for ultra airtight operation
  • 48-hour battery backup for controller and alarm
  • Extremely quiet and reliable
  • Compliant to Energy Star, UL 61010-1 and CSA C22.2 standards

Important!

Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
This unit is NOT designed to be used on a mobile platform.

Specifications

Model G26H
Capacity 25.7 cu ft
Electrical 110V (±10%) 60Hz 1-Phase 1000 watts
Temperature Range -40°C to -86°C
Time from ambient to -86°C 5 hours
Temperature Uniformity ±4°C ±4°C ±4°C
Time from -86°C to -50°C with door close (ambient 25°C) 5 hours

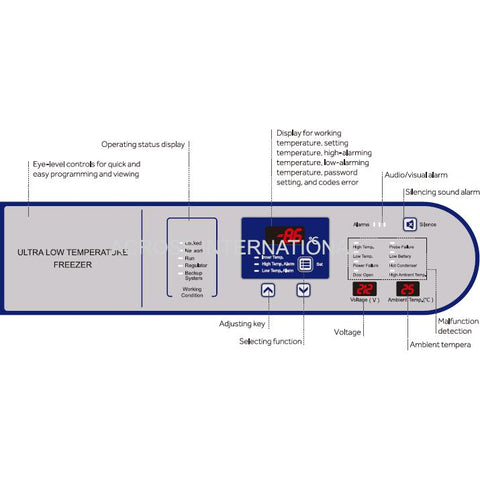

Controller Style: microcomputer controlled with analog display Range: -40°C to -86°C Step: 1°C Thermo Sensor: PT100 Displays: internal temperature, ambient temperature, input voltage, error code Indicators: high/low temperature/battery alarms, sensor failure, power failure, condenser failure, door open, high ambient temperature, working condition
Compressor Make: SECOP (formerly known as Danfoss), Germany
Style: direct cooling Power: 115V 60Hz 1-PHASE, 0.54HP x 2 (G26H: 0.85HP x 2)
Number of compressor: two
HC Refrigerants: R290 (stage 1), R170 (stage 2)

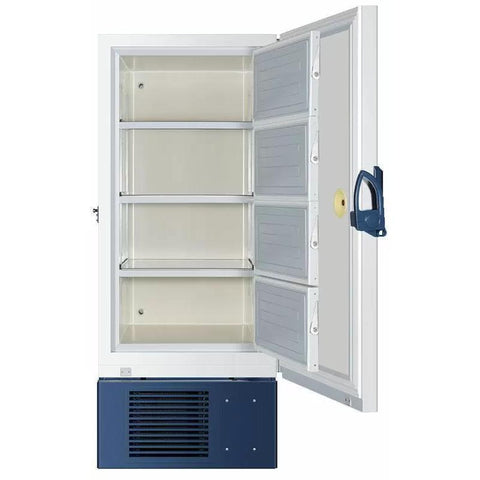

Chamber Dimensions: 30.5 x 28.2 x 51.6" (WxDxH)
Material: powder coated steel
Capacity: 25.7 cu ft
Insulation: VIP (Vacuum Insulated Panel)
Shelf Come with unit: 3 (4 compartments), fully adjustable
Dimensions: 29.5 x 26.7" (WxD)
Max. load capacity: 200 Lbs
Material: 304 stainless steel
Door and Gasket Inner door: four, each with one sealing gasket
External door: one with four sealing gaskets, lock-able
Access Port Two
Noise Level 50 dBA
Communication Standard: RS-485, USB (stores 15 years of data for compliance purpose)
Optional: 4-20mA transmitter
Working Environment Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
Humidity: <80% Rh
Altitude: < 2000 m / 6561 Ft
Stable, well-ventilated platform with no excessive dust
Keep freezer at least 12 inches from any walls or ceiling
Use dedicated power, do not share outlet
Extension power cable should be less than 10 feet is required
Freezer and power outlet should be grounded properly
Avoid direct sunlight, water spill and do NOT use freezer outdoor
Clean condenser fins and remove frost inside chamber at least once a month
Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery Backup System 48 hours (for controller display and alarms only)
Unit/Shipping Weight 760 Lbs / 850 Lbs
Unit/Shipping Dimensions 41 x 38.5 x 78" / 45 x 42 x 82" (WxDxH)
Safety Compressor over-temp protection
Ambient over-temp protection
Compressor power surge delay protection
Password protection
Sensor failure protection
Over-temperature and low-temperature protection
Power failure protection
Low battery, door open, condenser clogging, system failure alarms
External door with lock
Compliance UL 61010-1; CSA C22.2; Energy Star
Warranty 2-year full service, 3-year parts, 5-year compressor
