BINDER ED Classic.Line Drying and Heating Oven with gravity convection
Image SKU Description Capacity Temperature Range Electrical Quantity Price Add to Cart

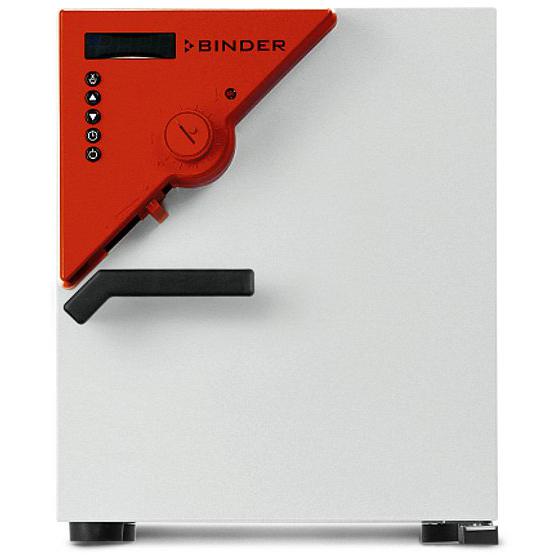

products/002_4528_e30e3863-5c40-4ce4-a95f-3d023ade33b7.jpg
9010-0192 Model ED 23 Oven with gravity convection 0.7 cu ft ambient +5 °C to 300 °C 120 V, 60 Hz, 12.5 A, UL Certified 1 Each
$1,609
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/002_4528_92a8cc74-256d-4e47-a738-8b9fa3cfd1f8.jpg
9010-0193 Model ED 23 Oven with gravity convection, RS 422 Interface 0.7 cu ft ambient +5 °C to 300 °C 120 V, 60 Hz, 12.5 A, UL Certified 1 Each
$1,868
$1,852
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

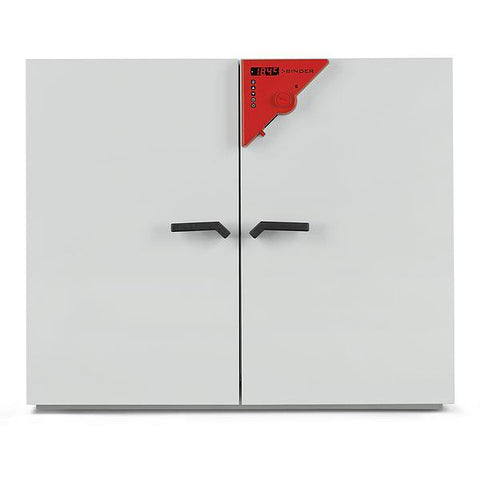

products/002_4526_73b69451-7885-4596-8915-806b71b1882e.jpg
9010-0168 Model ED 400 Oven with gravity convection, RS 422 Interface 14.1 cu ft ambient +5 °C to 300 °C 208 V, 60 Hz, 3 x 16 A, UL Certified 1 Each
$5,900
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the gravity convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.

Features:

  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line™ preheating chamber technology
  • Gravity convection
  • Adjustable exhaust air flap
  • Controller with timer functions
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

Documentation

Product Data Sheets
E | ED | ED-S | FD | FD-S | FED | FP | M Series Brochure
BD | ED | FD Series Operating Manual

Specifications

SKU 9010-0192 9010-0193 9010-0168
Model ED023UL-120V ED023UL-120V-I ED400UL-208V-I
Capacity 0.7 cu ft 0.7 cu ft 14.1 cu ft
Temperature Range ambient +5 °C to 300 °C ambient +5 °C to 300 °C ambient +5 °C to 300 °C
Temperature Stability ±0.5 K at 150 °C ±0.5 K at 150 °C ±0.5 K at 150 °C
Temperature Uniformity ±2.8 K at 150 °C ±2.8 K at 150 °C ±3 K at 150 °C
Heat-Up Time 28 mins to 150 °C 28 mins to 150 °C 71 mins to 150 °C
Air Change 13 x/h at 150 °C 13 x/h at 150 °C 10 x/h at 150 °C
Doors 1 1 2
Interior Dimensions 11.82" D x 13" H x 8.75" W 11.82" D x 13" H x 8.75" W 22.73" D x 24.63" H x 24.19" W
Exterior Dimensions 20.49" D x 19.5" H x 17.14" W 20.49" D x 19.5" H x 17.14" W 11.82" D x 13" H x 8.75" W
Number of Shelves 2 standard (4 max.) 2 standard (4 max.) 2 standard (10 max.)
Maximum Load 55 lbs 55 lbs 198 lbs
Electrical 120 V, 60 Hz, 12.5 A, UL Certified 120 V, 60 Hz, 12.5 A, UL Certified 208 V, 60 Hz, 3 x 16 A, UL Certified
Energy Consumption 148 Wh/h at 150 °C 148 Wh/h at 150 °C 672 Wh/h at 150 °C
Weight 60 lbs 60 lbs 276 lbs
