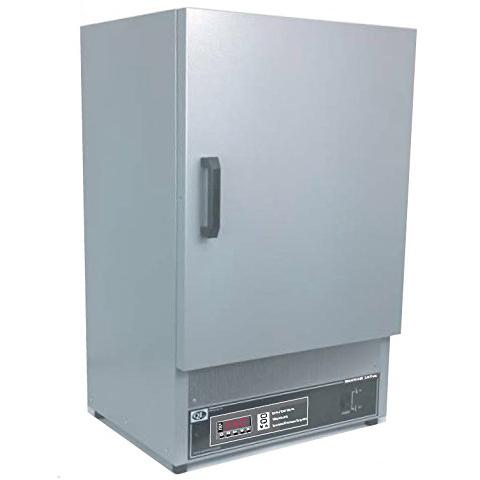

Digital Gravity Convection Ovens

from $815.00 $733.00

SKU DESCRIPTION CAPACITY TEMPERATURE RANGE INTERIOR DIMENSIONS EXTERIOR DIMENSIONS ELECTRICAL QUANTITY PRICE ADD TO CART
10GCE Digital Gravity Convection Oven 0.7 cubic feet Ambient + 25 to 450 °F 12.0 x 10.0 x 10. in 14.0 x 17.0 x 12.3 in 115 V, 5.2 A, 600 W 1 Each
$815
$733
20GCE Digital Gravity Convection Oven 1.27 cubic feet Ambient + 25 to 450 °F 13.0 x 13.0 x 13.0 in 15.0 x 21.5 x 15.3 in 115 V, 6.3 A, 750 W 1 Each
$925
$832
30GCE Digital Gravity Convection Oven 2.0 cubic feet Ambient + 25 to 450 °F 18.0 x 15.6 x 12.0 in 20.0 x 25.5 x 14.3 in 115 V, 10.5 A, 1200 W 1 Each
$1,025
$922
40GCE Digital Gravity Convection Oven 3.0 cubic feet Ambient + 25 to 450 °F 18.0 x 21.8 x 14.0 in 20.0 x 31.5 x 16.3 in 115 V, 12.5 A, 1500 W 1 Each
$1,155
$1,039

Features

  • Digital microprocessor control
  • Durable double-wall construction
  • Scratch-resistant hammer finish
  • Corrosion-resistant aluminized interiors
  • Proven realiability
  • Full 18-month factory warranty

Advanced Design

Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high-desnity mineral wool, and interiors are made of corrosion-resistant aluminized steel.

Controls

The digital control combines the features of the analog model but offers the ease of temperature setting and the stability of a full PID microprocessor that accurately maintains settings within +/- 0.5 °C (1 °F), even in varying ambient or power supply conditions. This feature helps to confirm stability or indicate any control malfunction or power loss thorougout a process period. The digital controller features large LEDs that continuously display set temperature and process temperature, as well asa setting lock mode that provides protection against accidental or inadvertent adjustment.

Heating Elements

Energy-efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly throughout the product chamber.

GCE Series

The GCE series gravity convection ovens are design to meet the laboratory needs of industry, research organizations, and schools. Well-crafted and versatile, they are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing. The GCE series has a temperature range to 450 °F / 232 °C, are competitively priced, and offer exceptional value and reliability.

Specifications

Model 10GCE 20GCE 30GCE 40GCE
Interior Dimensions (in) 12x10x10 13x13x13 18x15.6x12 18x21.8x14
Interior Dimensions (cm) 30.5x25.4x25.4 33x33x33 45.7x39.6x30.5 45.7x55.4x35.6
Exterior Dimensions (in) 14x17.5X12.3 15x21.5x15.3 20x25.5x14.3 20x31.5X16.3
Exterior Dimensions (cm) 35.6x44.5x31.2 38x54.6x38.9 50.8x64.8x36.2 50.8x80x41.4
Capacity (cubic ft) 0.7 1.27 2 3
Capacity (liters) 19.8 36 56.6 85
Temperature Range (° F) Ambient +25 °F to 450 °F Ambient +25 °F to 450 °F Ambient +25 °F to 450 °F Ambient +25 °F to 450 °F
Temperature Range (° C) Ambient +25 °F to 232 °C Ambient +25 °F to 232 °C Ambient +25 °F to 232 °C Ambient +25 °F to 232 °C
Max Shelves per Unit 10 13 16 22
Max Pounds per Shelf 35 35 35 35
Electrical 115V, 5.2A, 600W 115V, 6.3A, 750W 115V, 10.5A, 1200W 115V, 12.5A, 1500W
Plug Type 5-15P 5-15P 5-15P 5-15P
Unit Weight (lbs) 31.4 43.5 57.2 72.5
Shipping Weight (lbs) 42.6 57 76.2 91.5
Control Stability 0.5 °C / 1.0 °F 0.5 °C / 1.0 °F 0.5 °C / 1.0 °F 0.5 °C / 1.0 °F
Time to Max from Ambient 43 minutes 52 minutes 37 minutes 42 minutes
