BINDER UF V Ultra-Low Temperature Freezers with climate-neutral refrigerants
$19,890
$19,367
and up
| Image | SKU | Description | Capacity | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
9020-0351 | Model UF V 500 Ultra-Low Temperature Freezer | 16.8 cu ft | -40 to -90 °C | 120 V, 60 Hz, 13 A, UL Certified | 1 Each |
|
|
|
9020-0352 | Model UF V 700 Ultra-Low Temperature Freezer | 24.7 cu ft | -40 to -90 °C | 120 V, 60 Hz, 13 A, UL Certified | 1 Each | $23,094 |
Description

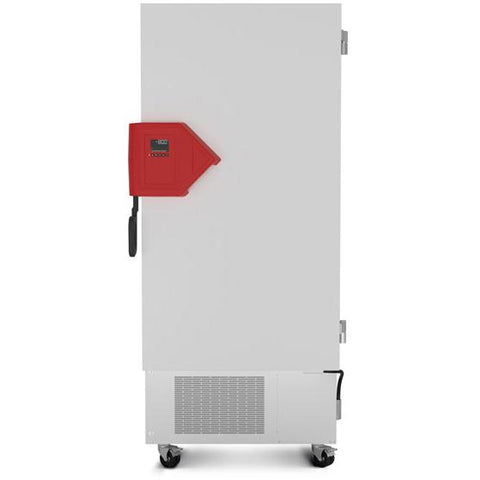

The BINDER ultra low temperature freezer ensures the safe storage of samples at -90 °C. It combines outstanding environmental friendliness with low energy consumption, convenient operation and an individual safety concept.
Features:
- Range of temperature controller: -90 °C to -40 °C
- Lowest energy consumption in its class
- Powerful cascade compressor cooling unit
- Environmentally friendly refrigerants R-290 and R-170
- Efficient thermal insulation with vacuum insulation panels
- Innovative door gasket concept reduces buildup of ice
- Ergonomic door handle
- Rust-proof interior made completely of stainless steel

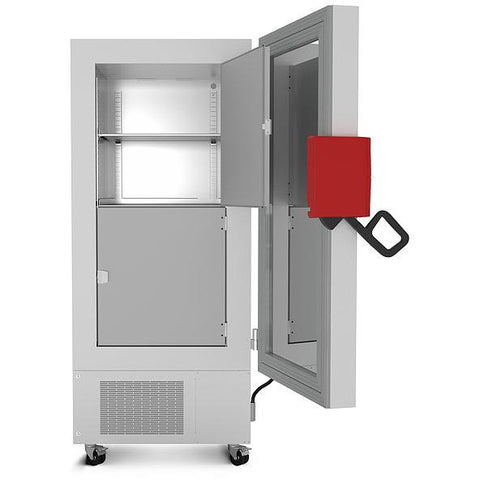

- Detachable inner doors made of stainless steel
- 3 stainless-steel shelves providing flexible placement
- Zero-voltage alarm contact for in-house alarm system
- Ethernet interface
- Elapsed time indicator
- 2 access ports, Ø 28 mm, rear
Documentation
| Product Data Sheets |
|---|
| E | UF V Series Brochure |
| UF V Series Operating Manual |
Specifications
| SKU | 9020-0351 | 9020-0352 |
|---|---|---|
| Model | UFV500UL-120V | UFV700UL-120V |
| Capacity | 16.8 cu ft | 24.7 cu ft |
| Temperature Range | -40 to -90 °C | -40 to -90 °C |
| Temperature Stability | ±1.5 K at -80 °C | ±1.5 K at -80 °C |
| Temperature Uniformity | ±2.5 K at -80 °C | ±2.5 K at -80 °C |
| Cool-Down Time | 360 mins from 22 °C to -80 °C | 450 mins from 22 °C to -80 °C |
| Doors | 1 | 1 |
| Interior Dimensions | 23.84" D x 51.2" H x 23.88" W | 23.84" D x 51.2" H x 35.07" W |
| Exterior Dimensions | 36.96" D x 77.5" H x 32.54" W | 36.96" D x 77.5" H x 43.7" W |
| Number of Shelves | 3 standard (13 max.) | 3 standard (13 max.) |
| Maximum Load | 441 lbs (110 lbs per compartment) | 441 lbs (110 lbs per compartment) |
| Electrical | 120 V, 60 Hz, 13 A, UL Certified | 120 V, 60 Hz, 13 A, UL Certified |
| Energy Consumption | 7.9 kWh/d at -80 °C | 8.1 kWh/d at -80 °C |
| Noise Level | 47 dB(A) | 47 dB(A) |
| Weight | 545 lbs | 635 lbs |
