IKA RCT digital Hot Plate Stirrers
| Image | SKU | Description | Plate Dimensions | Temperature Range | Speed Range | Includes | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
|
0010003302 | RCT digital Hot Plate Stirrer Package | Ø 135 mm | 0 to 310 °C | 50 to 1500 rpm | PT 1000.60 temperature sensor, H 38 Holding rod, H 16 V Support rod, H 44 Boss head clamp | 115 V, 50/60 Hz | 1 Package | $1,438 | |
|
0025005389 | RCT digital Hot Plate Stirrer | Ø 135 mm | 0 to 310 °C | 50 to 1500 rpm | RCT digital Hot Plate Stirrer ONLY | 115 V, 50/60 Hz | 1 Each | $1,280 |
Description
IKA Plate (RCT digital)
The IKA Plate (RCT digital) features a round top made of aluminum alloy, capable of stirring volumes of up to 20 liters (H₂O) at speeds ranging from 50 to 1500 rpm. Designed with simplicity and modernity in mind, it combines reduced forms and intuitive operating elements with the sleek aesthetic of a hardened glass surface — enhancing not only visibility, chemical resistance and safety, but also redefining the look of a modern magnetic stirrer.
Performance and technology
Using Alnico magnetic technology, the IKA Plate (RCT digital) achieves excellent temperature stability, high residual induction and maximum vortex performance. The integrated timer and counter function supports precise control of kinetics and sensitive reactions, while the IKA SmartTemp® function protects users intelligently and predictably by automatically switching off the magnetic stirrer if the connected external temperature sensor is not immersed in the medium. This function is selectable and the timeout time is adjustable (Error 5).
Continuous improvement via firmware updates
The IKA Plate (RCT digital) improves over time with regular firmware updates, ensuring the device remains current and continues to deliver optimal performance throughout its service life.
Scope of delivery

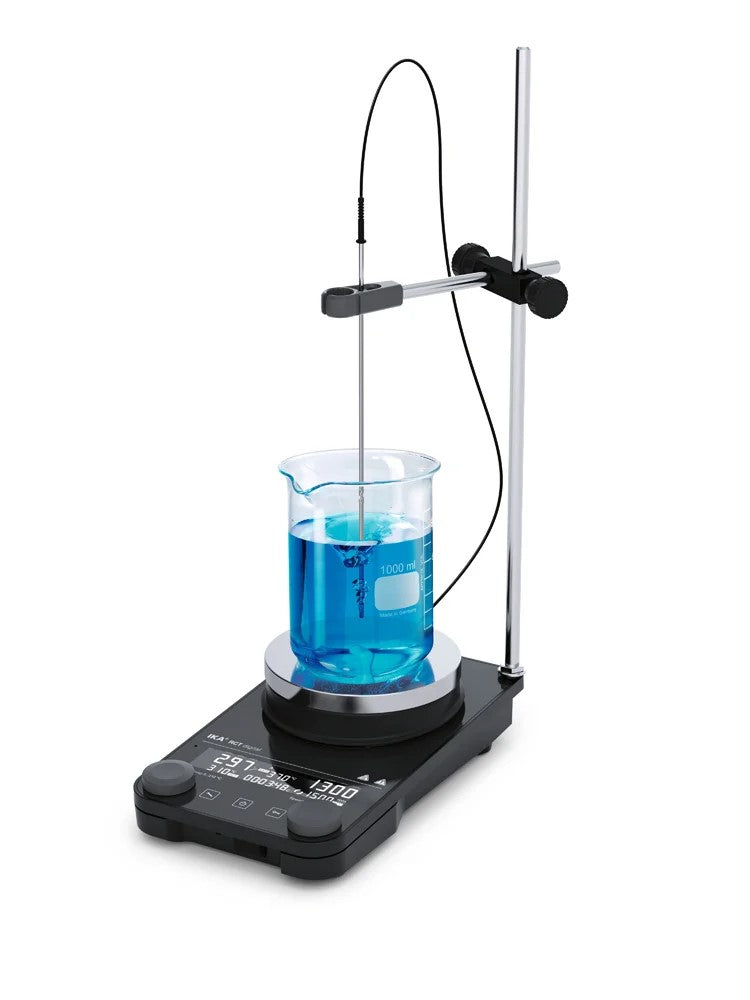

The IKA Plate is available as a standalone unit or as a complete package. The standalone unit includes a PT 1000.60 temperature sensor. The IKA Plate Package includes all of the above, plus the following additional items for enhanced versatility:
- H 38 Holding rod
- H 16 V Support rod
- H 44 Boss head clamp
Technical Data
| Number of stirring positions | 1 |
|---|---|
| Stirring quantity max. per stirring position (H₂O) | 20 l |
| Maximum load | 25 kg |
| Motor rating output | 9 W |
| Direction of rotation | Right / left |
| Speed display set-value | LCD |
| Speed display actual-value | LCD |
| Speed adjustment | Turning knob |
| Speed range | 50 – 1500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring bar length | 20 – 80 mm |
| Self-heating of the set-up plate by max. stirring (RT: 22°C / duration: 1h) | +17 K |
| Heat output | 600 W |
| Temperature display set-value | LCD |
| Temperature display actual-value | LCD |
| Temperature unit | °C / °F |
| Heating temperature range | Room temp. + device self heating – 310 °C |
| Heat control | Turning knob |
| Temperature setting range | 0 – 310 °C |
| Temperature setting resolution of heating plate | 1 K |
| Connection for ext. temperature sensor | PT1000, ETS-D5, ETS-D6 |
| Temperature setting resolution of medium | 1 K |
| Heat control accuracy of medium (set/act) | ±0.5 K |
| Adjustable safety circuit | 50 – 370 °C |
| Set-up plate material | Aluminium alloy |
| Set-up plate dimensions | Ø 135 mm |
| Automatic reverse rotation | Yes |
| Intermittent mode | Yes |
| Viscosity trend measurement | Yes |
| Timer | Yes |
| Sensor in medium detection | Yes |
| Speed deviation (no load, nominal voltage, at 1500 rpm + 25°C) | ±2 % |
| Heating rate (1 l H₂O in H1500) | 6.5 K/min |
| Heat control accuracy of heating plate (at 100°C) | ±5 K |
| Heat control accuracy with ext. PT1000 (500 ml H₂O in 600 ml beaker, 40 mm stirring bar, 600 rpm, 50°C) | ±0.5 K |
| Heat control accuracy with ETS-D5 (500 ml H₂O in 600 ml beaker, 40 mm stirring bar, 600 rpm, 50°C) | ±0.5 K |
| Heat control accuracy with ETS-D6 (500 ml H₂O in 600 ml beaker, 40 mm stirring bar, 600 rpm, 50°C) | ±0.2 K |
| Dimensions (W x H x D) | 160 x 85 x 270 mm |
| Weight | 2.3 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| RS 232 interface | Yes |
| USB interface | USB-B |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 650 W |
| Power input standby | 1.6 W |
