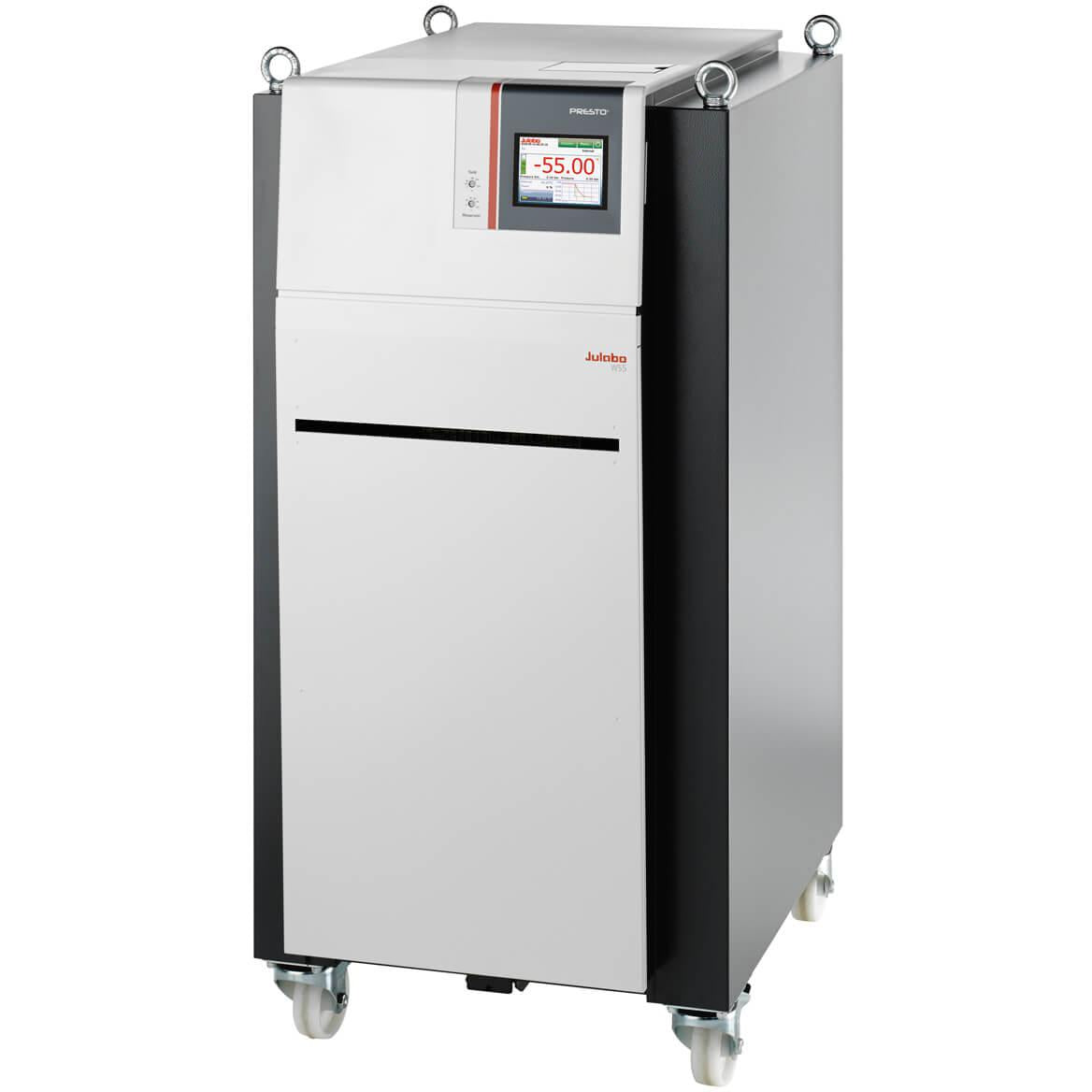

Julabo PRESTO W55 Refrigerated Heating Recirculators
Image SKU Description Filling Volume Temperature Range Temperature Stability Electrical Quantity Price Add to Cart
9421552.16 PRESTO W55 11.5 L -55 to 250 °C ±0.05 to ±0.1 °C 3 x 208 / 60Hz / 48A - without plug 1 Each $76,767
  • 1
  • 2
  • 3
  • 4
  • 5


Temperature Control System / Process System

Reactor temperature control, tests for all kinds of substances or temperature simulation – the PRESTO are made for highly precise temperature control and rapid temperature changes. Highly efficient components allow extremely fast compensation of exothermic and endothermic reactions. Lab users benefit from high flow rates, constant pressure, and a controlled build-up of pump pressure. Permanent internal monitoring and self-lubricating pumps contribute to the PRESTO's long service life. The integrated 5.7" industrial touch screen displays all important information clearly and concisely enhancing ease of use considerably.

Your advantages

  • For highly precise, external temperature applications
  • Rapid heating and cooling
  • Wide working temperature ranges without changing fluids
  • Highest performance with small footprint
  • Space-saving design optimizes space utilization in your lab
  • 5.7" industrial color TFT touch screen
  • USB (Host und Device)
  • Ethernet
  • SD-Card slot
  • RS232
  • Modbus
  • RS485 (Accessory)
  • Profibus DP (Accessory)
  • Stand-by input
  • Water Cooled


Part Number 9421552
Model Series PRESTO
Category Temperature Control
Working Temperature Range -55 to 250°C
Temperature Control ICC
Temperature Stability ±0.05 to ±0.1°C
Setting / Display Resolution 0.01°C
Integrated Programmer 8x60 steps
Temperature Display TFT Touchscreen
Heating Capacity 12kW
Cooling Capacity (Medium:JULABO Thermal | Ethanol) 13.5kW @ 200°C | 15kW @ 20°C / 10kW @ 0°C / 6.5kW @ -10°C / 4kW @ -20°C / 2.5kW @ -30°C / 1.2kW @ -40°C / 0.3kW @ -50°C
Pump Capacity Flow Rate 35 to 80 l/min
Pump Capacity Flow Pressure 0.48 to 3.0 bar
Viscosity Max 50 cSt
Pump Connections M30x1.5
Refrigerant Stage 1 R452A
Filling Volume Refrigerant Stage 1 1600 g
Global Warming Potential for R452A 2140
Carbon Dioxide Equivalent Stage 1 3.424 t
External Pt100 Sensor Connection Integrated
Digital Interfaces RS232
SD memory card
Optional: RS485, Profibus
Analog Connection Input / Output Optional
Ambient Temperature 5 to 40°C
Dimensions W x L x H 61 x 85.5 x 125 cm
Weight 288 kg
Sound Pressure Level (distance 1 m) Max. 65 dBA
Process Volume Min. (active heat exchanger volume) Liters 11.5 L (7 L)
Internal Usable Expansion Vol. (liters) 7.5 L
Classification According to DIN12876-1 Classification III (FL)
Cooling of Compressor 1-stage Water
Cooling Water Connection G ¾" male with barbed fittings for tubing ½" lD
Cooling Water Consumption 8-12 l/min
Cooling Water Temperature <30°C
Cooling Water Differential Pressure 0.5 bar
Voltage 3 x 208/60Hz/48A - Without Plug
