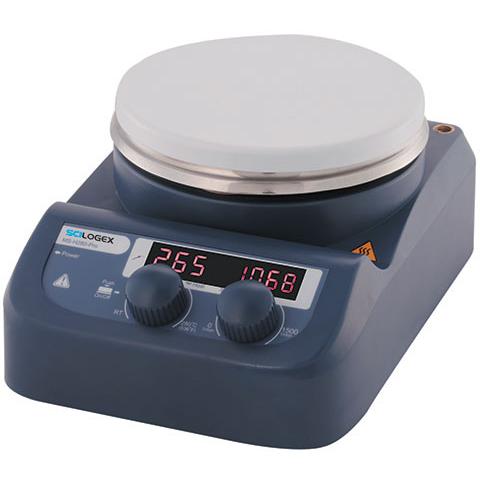

Scilogex SCI280-Pro Circular-top LED Digital Hotplate Stirrers
- 2 Year Warranty
- Brushless DC Motor ensures long life
- Highly economical, compact hot plate stirrer
$400
$305
| SKU | Description | Plate Dimensions | Temperature Range | Speed Range | Plate Material | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| 861431019999 | Scilogex SCI280-Pro Digital Hotplate Stirrer | 5 in diameter | Ambient to 280 °C | 200 to 1500 rpm | Ceramic Coated Stainless Steel | 110V, 50/60Hz | 1 Each |
|
Description
The SCI280 hotplate-stirrer is a very economically priced LED digital hotplate-stirrer ideal for handling small volume task on daily application, as a low temperature magnetic stirrer with max. temperature at 280°C. This compact unit can be used as a hotplate, stirrer or combination.
Features
- Heat only, stir only or heat and stir together functions
- Digital temperature control with max. temperature up to 280°C
- Digital speed control with max. speed up to 1500rpm, with new brushless motor
- Stainless steel work plate with ceramic coating provides good chemical resistant performance and easy cleaning
- LED display shows temperature and speed
- External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C
- The "HOT" warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
- Accessory reaction blocks for flasks and vessels available
- Electronic speed control for constant speed even during changes in load
- Comes with a free 50mm L x 5mm Dia. Magnetic Stir bar
- cTUVus approved for UL and CSA
- 2 Year Warranty
Specifications
| Specifications | 861431019999 |
|---|---|
| Work plate dimension | φ135mm (5 inch) |
| Work plate material | stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor input power | 5W |
| Motor output power | 3W |
| Power | 515W |
| Heating output | 500W |
| Voltage | 110V, 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity [H2O] | 3L |
| Max. magnetic bar [length] | 50mm |
| Speed range | 200 to 1500rpm |
| Speed display | LED |
| Temperature display | LED |
| Speed display resolution | ±1rpm |
| Heating temperature range | Room Temp. to 280°C, increment 1°C |
| Temperature control accuracy | ±1°C (<100°C); ±1% (>100°C) |
| Over temperature protection | 320°C |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.5°C) |
| "Hot" warning | 50°C |
| Protection Class | IP21 |
| Dimension [WxDxH] | 150×260×80mm |
| Weight | 1.8kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
