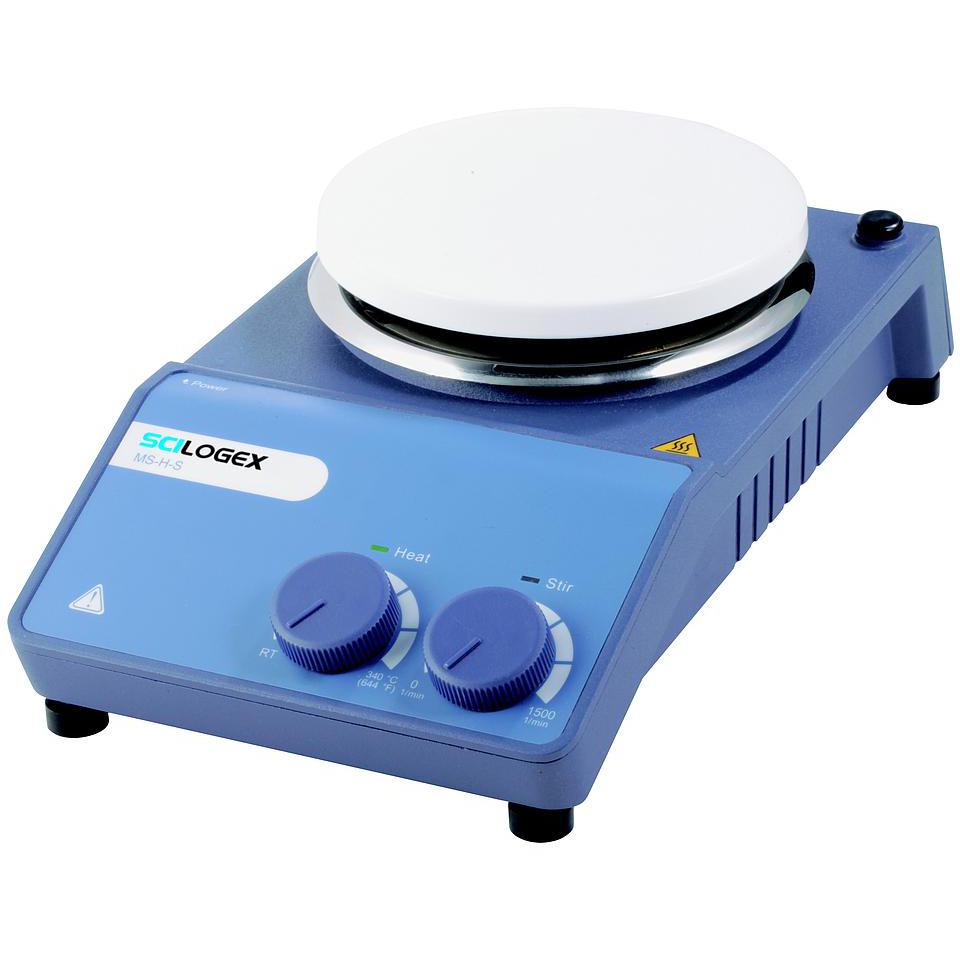

Scilogex SCI340-HS Circular-top Analog Hotplate Stirrer
$550
$413
| SKU | Description | Plate Dimensions | Speed Range | Temperature Range | Plate Material | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| 811121029999 | Scilogex SCI340-HS Analog Hotplate Stirrer | 5 in diameter | 50 to 1500 rpm | Ambient to 340 °C | Ceramic Coated Stainless Steel | 110V, 50/60Hz | 1 Each |
|
Description
Features
- Electronic speed control for constant speed even during changes in load
- Low heat temperature stability
- Maintenance free brushless DC motor
- Max. temperature to 340°C
- Stirring speed up to 1500 rpm
- Stainless steel work plate with ceramic coating provides good chemical-resistant performance
- Long life brushless motor
- High magnetic adhesion
- Safety circuits provide overheating protection
- A wide variety of accessories are available
- cTUVus approved for UL and CSA
- 2 year warranty
Specifications
| Specifications | 811121029999 |
|---|---|
| Work plate dimension | 35mm (5 inch) |
| Work plate material | stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor input power | 18W |
| Motor output power | 10W |
| Power | 530W |
| Heating output | 500W |
| Voltage | 110V, 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity [H2O] | 20L |
| Max. magnetic bar [length] | 80mm |
| Speed range | 50-1500rpm, resolution ±1rpm |
| Speed display | Scale |
| Temperature display | Scale |
| Heating temperature range | Room Temp. to 340°C |
| Over temperature protection | 350°C |
| Temperature display accuracy | ±0.5°C |
| Protection Class | IP42 |
| Dimension [WxDxH] | 160×280×85 mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
