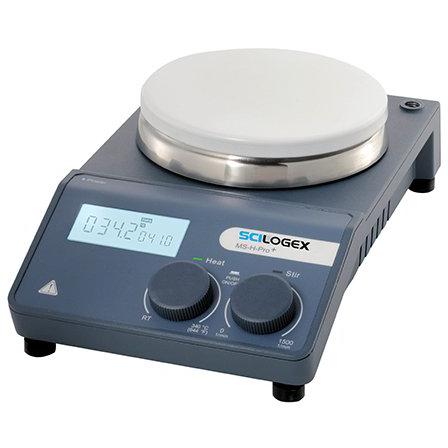

Scilogex SCI340-Pro Circular-top LCD Digital Hotplate Stirrer

  • Free Shipping

from $670.00 $536.00

SKU DESCRIPTION PLATE DIMENSIONS TEMPERATURE RANGE SPEED RANGE PLATE MATERIAL ELECTRICAL QUANTITY PRICE ADD TO CART
861442019999 Scilogex SCI340-Pro Digital Hotplate Stirrer 5 in diameter Ambient to 340 °C 100 to 1500 rpm Ceramic Coated Stainless Steel 110V, 50/60Hz 1 Each
$670
$536

The SCI340-Pro is one of the most technically advanced hotplate-stirrers in the marketplace. With independent back-lit LCD displays for both heat and stirring functions and PID technology and controls temperature at +/- 1ºC. It also incorporates a DC brushless motor for extremely long life and excellent performance.

Scilogex 340°C magnetic hotplate stirrers include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals, etc.

Features

  • Heat only, stir only or heat and stir together functions, High-resolution LCD display shows actual temperatures and speed
  • Digital speed control with max. speed up to 1500rpm
  • External temperature control is possible by connecting the optional temperature sensor(PT-1000) with accuracy at ±0.2°C
  • Max. stirring quantity of H2O at 20L
  • RS232 function provides PC control and data transmission (free software available)
  • The "HOT" warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
  • Automatic spin bar retrieval
  • Low temperature stability
  • Microprocessor temperature control
  • Stainless steel work plate with ceramic coating provides excellent chemical-resistance
  • Accessory reaction blocks for flasks and vessels sold separately
  • Electronic speed control for constant speed even during changes in load
  • Brushless DC motor is maintenance free
  • High magnetic adhesion
  • Free software for control data logging by PC
  • Comes with a free 50mm L x 5mm Dia. Magnetic Stir bar
  • cTUVus approved for UL and CSA
  • 2 Year Warranty

Specifications

Specifications 861442019999
Work plate dimension φ135mm (5 inch)
Work plate material stainless steel cover with ceramic
Motor type Brushless DC motor
Motor input power 18W
Motor output power 10W
Power 550W
Heating output 500W
Voltage 110V, 50/60Hz
Stirring positions 1
Max. stirring quantity [H2O] 20L
Max. magnetic bar [length] 80mm
Speed range 100 to 1500rpm, resolution ±1rpm
Speed display LCD
Temperature display LCD
Heating temperature range Room Temp.to 340°C, increment 1°C
Temperature control accuracy ±1°C (<100°C); ±1% (>100°C)
Over temperature protection 360°C
Temperature display accuracy ±0.1°C
External temperature sensor PT1000 (accuracy ±0.2)
"Hot" warning 50°C
Data connector RS232
Protection Class IP42
Dimension [WxDxH] 160×280×85mm
Weight 2.8kg
Permissible ambient temperature and humidity 5-40°C, 80%RH
