FREE SHIPPING

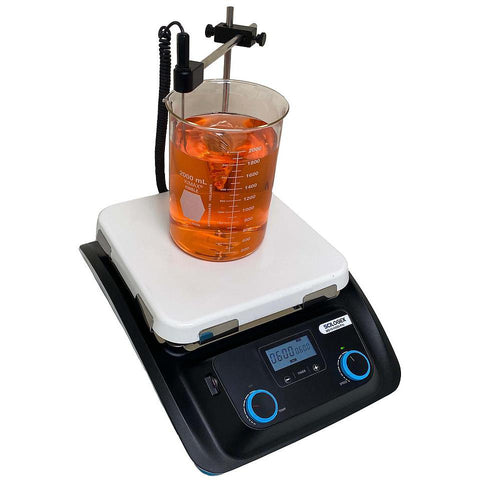

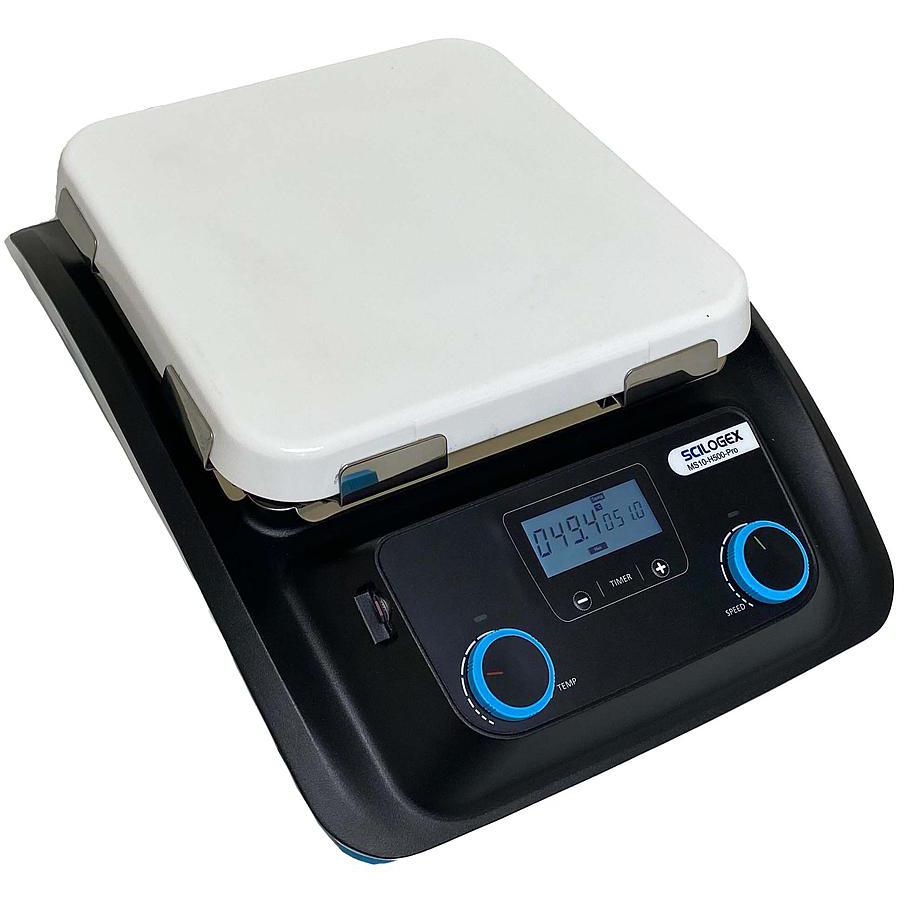

Scilogex SCI500HS-Pro LCD Digital Hotplate Stirrer, 10x10 inch
$1,500
$1,125
and up
| Image | SKU | Description | Plate Dimensions | Temperature Range | Speed Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
80301321159999 | Digital Hotplate Magnetic Stirrer | 10 x 10 in. | to 500 °C | 100 to 1500 rpm | 110V, 50/60Hz US Plug | 1 Each |
|
|
|
80301321159999-B | Digital Hotplate Magnetic Stirrer, with PT1000 Sensor & Sensor Stand | 10 x 10 in. | to 500 °C | 100 to 1500 rpm | 110V, 50/60Hz US Plug | 1 Set |
|
Description
SCI500HS-Pro LCD Digital 10x10 Magnetic Hotplate Stirrer Features:
- Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
- Glass ceramic work plate provides excellent chemical resistant performance and efficient heat transfer
- LCD display for precise monitoring of speed and temperature. Liquid temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C
- Digital speed control of 100~1500 rpm
- Max. heating plate temperature 500°C
- The "Hot" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
- Free SD card records the instrument's running data in real time
- Timing function; the run time of the instrument can be set
Specifications
| Work plate Dimension [WxD] | 254x254mm(10 x 10inch) |
|---|---|
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring quantity, [H2O] | 30 L |
| Max. Magnetic bar [length] | 80 mm |
| Speed range | 100-1500rpm resolution ±1rpm |
| Speed, Time, Temperature display | LCD |
| Timer function | 1min to 99h59min |
| Heating temperature range | Room Temp.to 500°C, increments 1°C |
| Temperature control accuracy | ±1°C(<100°C)±1%(>100°C) |
| Overheating Protection | 540°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (±0.2°C) |
| "Hot" warning | 50°C |
| Data Connector | SD Card |
| Protection class | IP21 |
| Power class | 1400W |
| Heating output | 1350W |
| Voltage Frequency | 110V, 50/60Hz US Plug |
| Dimension [WxDxH] | 328x424x138mm |
| Weight | 7.18kg |
| Permissible Ambient temperature and humidity | 5-40°C, 80%RH |
