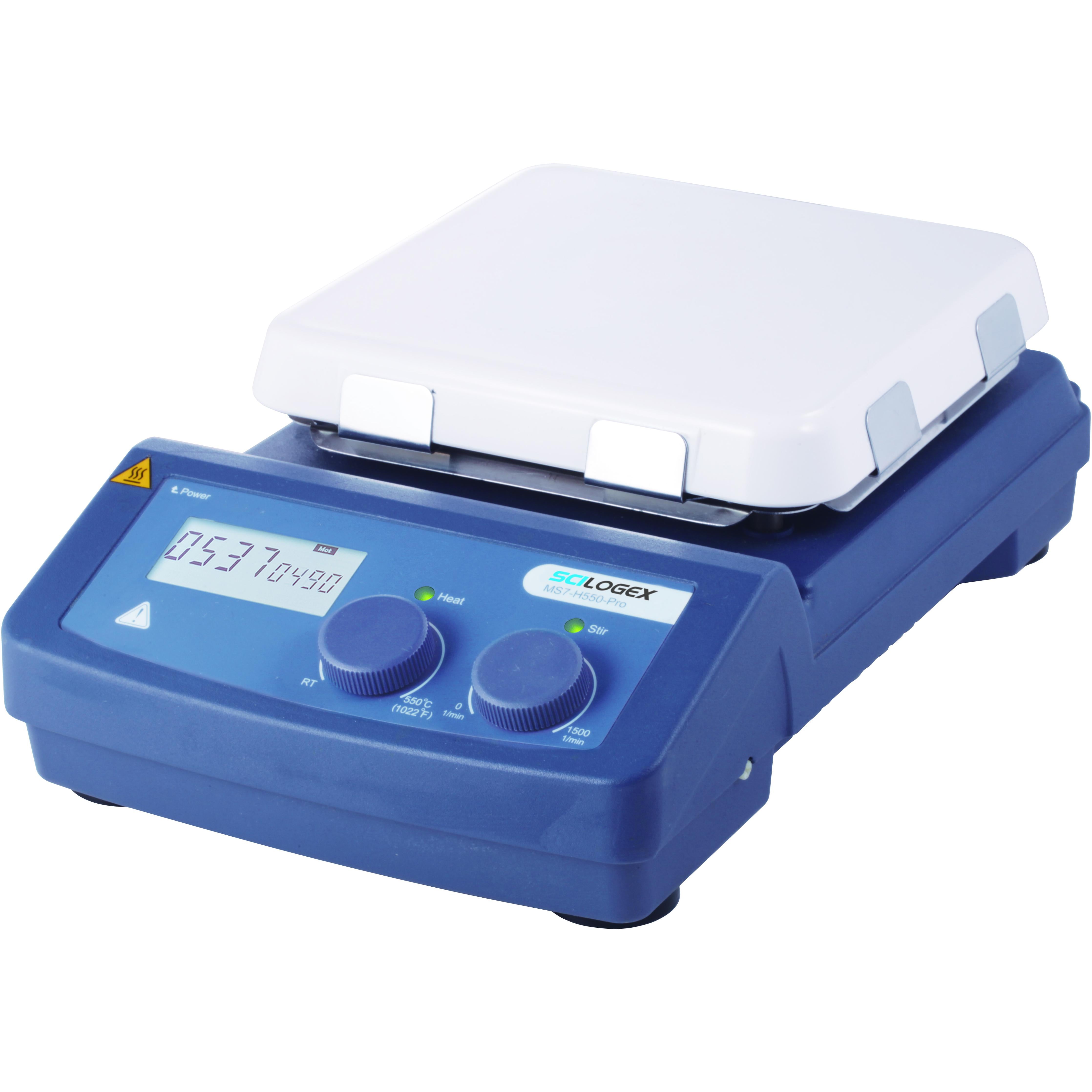

Scilogex MS7-H550-Pro LCD Digital Hotplate Stirrers
SKU Description Plate Dimensions Temperature Range Speed Range Electrical Quantity Price Add to Cart
813223009999 Scilogex SCI550-Pro LCD Digital Hotplate Stirrer 7 x 7 in Ambient to 550°C 100 to 1500 rpm 110V, 50/60Hz 1 Each
$872
$697
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The SCI550-Pro is one of the most technically advanced hotplate-stirrers in the marketplace. With independent back-lit LCD displays for both heat and stirring functions and PID technology. The SCI550-Pro controls temperature at +/- 1ºC. It also incorporates a DC brushless (spark free) motor for extremely long life and excellent performance.

Scilogex 550°C series magnetic stirrer is developed for demanding applications. It is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc. Combining with glass ceramic work plate, brushless DC motor and external temperature sensor, the work plate temperature is optimized up to 550°C.

Features

  • Easy-to-read independent back-lit LCD displays for heat and stirring
  • Digital speed controlling, max. speed at 1500rpm
  • Built-in PID controller ensures safe heating of the medium with overheating protection
  • Heat only, stir only or heat and stir together functions
  • Max. heating plate temperature 550°C
  • Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
  • RS232 for remote control, providing PC control and data transmission
  • Low temperature stability
  • External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C
  • Accessory PT-1000 stand available (built in stand mount)
  • Electronic speed control for constant speed even during changes in load
  • Maintenance free DC brushless motor for long life and more stirring power
  • Two rotating knobs enable easy adjustment of speed and temperature
  • High magnetic adhesion
  • "HOT" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
  • cTUVus approved for UL and CSA
  • 2 YEAR WARRANTY

Specfications

Work plate dimension [W x D] 184x184mm (7 inch)
Work plate material Glass ceramic
Motor type Brushless DC motor
Motor input power 18W
Motor output power 10W
Power 1050W
Heating output 1000W
Voltage 100-120/200-240V 50/60Hz
Stirring positions 1
Max. stirring quantity [H2O] 20L
Max. magnetic bar [length] 80mm
Speed range 100-1500rpm, resolution ±1rpm
Speed display LCD
Temperature display LCD
Heating temperature range Room Temp.-550°C, increment 1°C
Temperature control accuracy ±1°C(<100°C) ±1%(>100°C)
Overheating protection 580°C, ±0.1°C
External temperature sensor PT1000 (accuracy ±0.2)
"Hot" warning 50°C
Data connector RS232
Protection class IP21
Dimension [WxDxH] 215 x 360 x 112mm
Weight 5.3kg
Permissible ambient temperature
and humidity
5-40°C, 80%RH
