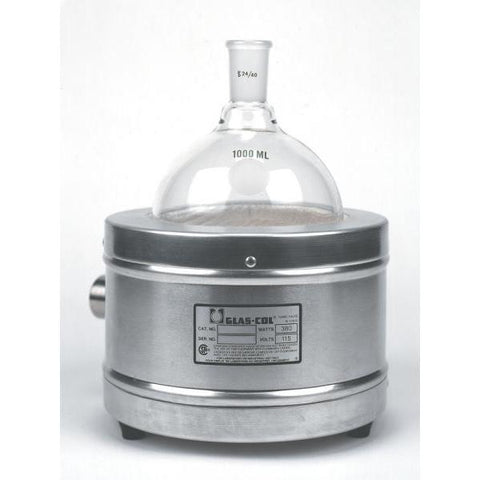

Glas-Col Series STM Heating Mantles, High Temperature Round Bottom

Questions? Quotes? Let's chat!
$424
$391 and up
SKU Description Capacity Voltage Wattage Quantity Price Add to Cart
100B STM400 Aluminum Housed Heating Mantle, High Temp 100 mL 115 V 230 W 1 Each
$424
$391
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM500 Aluminum Housed Heating Mantle, High Temp 125 mL 115 V 230 W 1 Each
$438
$403
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM600 Aluminum Housed Heating Mantle, High Temp 200 mL 115 V 300 W 1 Each
$444
$409
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM700 Aluminum Housed Heating Mantle, High Temp 250 mL 115 V 470 W 1 Each
$447
$412
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM800 Aluminum Housed Heating Mantle, High Temp 300 mL 115 V 470 W 1 Each
$456
$420
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM900 Aluminum Housed Heating Mantle, High Temp 500 mL 115 V 470 W 1 Each
$471
$434
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM1000 Aluminum Housed Heating Mantle, High Temp 1000 mL 115 V 600 W 1 Each
$560
$516
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM1100 Aluminum Housed Heating Mantle, High Temp 2000 mL 115 V 870 W 1 Each
$698
$643
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM1200 Aluminum Housed Heating Mantle, High Temp 3000 mL 115 V 970 W 1 Each
$828
$763
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM1300 Aluminum Housed Heating Mantle, High Temp 5000 mL 115 V 2@700 W 1 Each
$1,008
$929
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM1400 Aluminum Housed Heating Mantle, High Temp 12000 mL 115 V 2@1000 W 1 Each
$2,080
$1,918
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
100B STM1500 Aluminum Housed Heating Mantle, High Temp 22000 mL 115 V 3@1000 W 1 Each
$2,504
$2,309
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The Series STM mantles perform the same function as Series TM heating mantles, plus operations requiring more heat. With an upper internal operating temperature of 600°C, the mantles resist burnout.

Specifications

Certification: All 115 volt units are CSA certified
Electrical: STM400 - STM1300 detachable 4-ft., 3-wire cord and locking connector. STM1400 and STM1500 terminal box.
Options: Sizes smaller than 12L available sealed with inert gas purge fitting. 12L and larger available with switches and pilot lights.

WARNING: Series STM mantles are recommended for use with flammable solvents only when used with a Ponsho Safety Shield.

HEATING MANTLES MUST BE OPERATED THROUGH A POWER CONTROL
