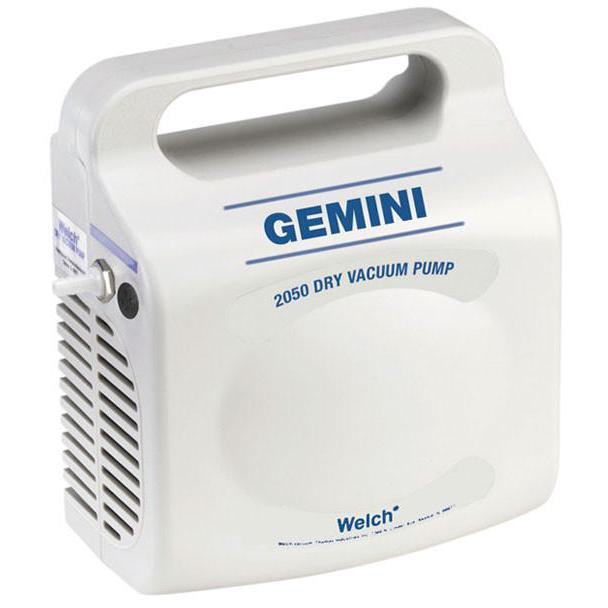

Welch® Gemini Portable Vacuum Filtration Pump
Image SKU Description Maximum Vacuum Ultimate Pressure Free Air Displacement Type Electrical Quantity Price Add to Cart
products/2050_wc_1024x1024_67dced8b-8779-455c-a95d-89d79290bef6.jpg
2050B-01 Gemini Portable Vacuum Filtration Pump 22 in Hg 200 Torr (266 mbar) 0.46 cfm (13 L/min) Pump only 115V, 60Hz 1 Each
$710
$691
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/2060_wc_1024x1024_c2f490f2-e230-4f4e-ac9b-b859d280dadc.jpg
2060B-01 Gemini Portable Vacuum Filtration Pump 22 in Hg 200 Torr (266 mbar) 0.46 cfm (13 L/min) Includes vacuum regulator & gauge 115V, 60Hz 1 Each
$835
$815
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

Bring vacuum to where you need it. GEMINI pumps operate on DC power and are readily used with a car adapter or 120VAC adapter. Excellent vacuum for filtration or sampling - 190 torr, 9 l/min. Small, lightweight, portable. Polyarlyamide heads, fluoropolymer elastomer diaphragms, tubing, valves.

Key Features

  • Powerful, portable, economical
  • Advanced chemical resistance

Suggested Applications

  • Vacuum Filtration
Model Number 2050 2060
Applications Field or lab filtrations and sampling Field or lab filtrations and sampling
Type Laboratory Vacuum Pumps Laboratory Vacuum Pumps
Free Air Displacement m3/hr (l/min.) @50Hz .3(8.5) 0.46(13)
Maximum Vacuum 190 torr 200 torr
Intake Thread NPT 3/8 3/8
ISO Exhaust / Intake Flange 1/8 1/8
Overall Dimensions LxWxH in. (cm) 5.3(2.4) 11(5)
Ship Weight 7(3.2) 13(5.9)
