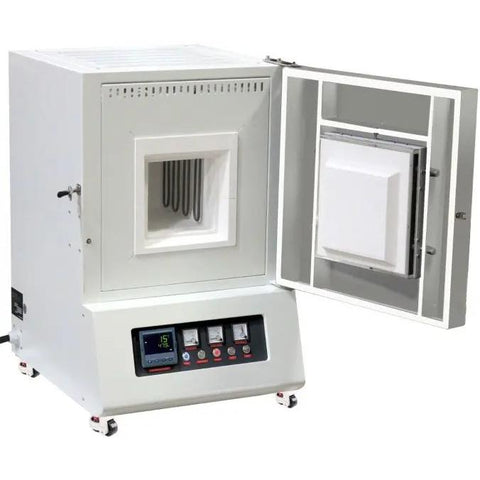

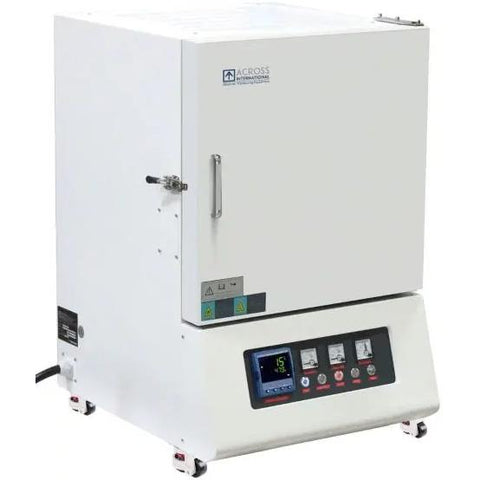

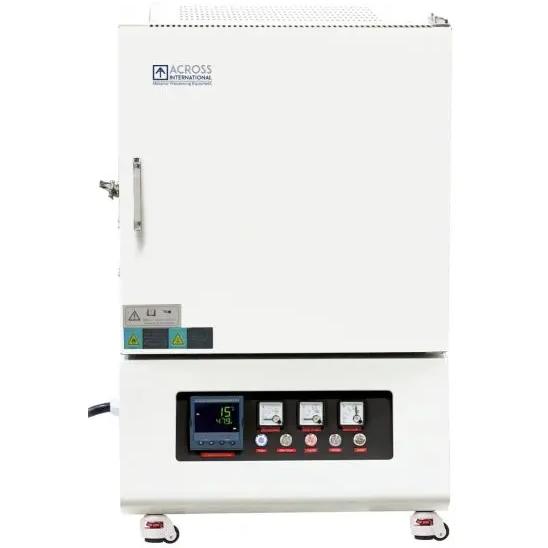

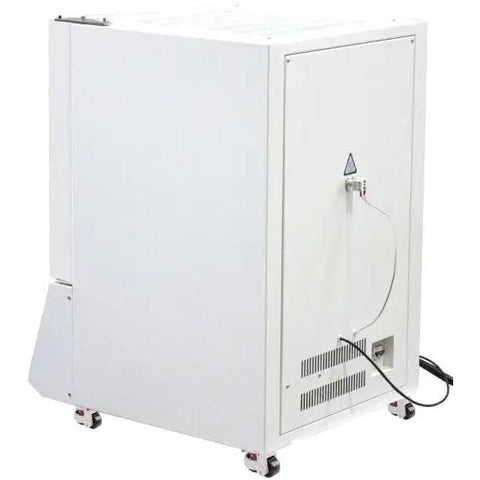

Ai 1700°C 40-Segment Muffle Furnace, PC Interface
$10,790
$10,250
and up
| SKU | Description | Temperature Range | Chamber Dimensions | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| CF1700.6.6.6 | 40-Segment Muffle Furnace PC Interface | 300 to 1700°C | 6 x 6 x 6 in. | 208-240V, 50/60Hz, single phase | 1 Each |
|
|
| CF1700.6.6.6-UL | 40-Segment Muffle Furnace PC Interface | 300 to 1700°C | 6 x 6 x 6 in. | 208-240V, 50/60Hz, single phase, UL/CSA Certified | 1 Each |
|
|
| CF1700.12.8.8 | 40-Segment Muffle Furnace PC Interface | 300 to 1700°C | 12 x 8 x 8 in. | 208-240V, 50/60Hz, single phase | 1 Each |
|
|
| CF1700.12.8.8-UL | 40-Segment Muffle Furnace PC Interface | 300 to 1700°C | 12 x 8 x 8 in. | 208-240V, 50/60Hz, single phase, UL/CSA Certified | 1 Each |
|
|
| CF1700.16.12.12 | 40-Segment Muffle Furnace PC Interface | 300 to 1700°C | 16 x 12 x 12 in. | 208-240V, 50/60Hz, single phase | 1 Each |
|
|
| CF1700.16.12.12-UL | 40-Segment Muffle Furnace PC Interface | 300 to 1700°C | 16 x 12 x 12 in. | 208-240V, 50/60Hz, single phase, UL/CSA Certified | 1 Each |
|
Description
Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type B thermocouple.
- CE compliant
- Safety
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions. Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Specifications
| Electrical requirements | 208-240VAC, 50/60Hz, single phase | ||
|---|---|---|---|
| Min. working temperature | 300C (572F) recommend at least 800C for longer heating element life | ||
| Max. constant working temperature | 1700C (3092F) max. / 1600C (2912F) constant | ||
| Refractory lining | Mitsubishi (Japan) high quality grade 1800 fiber alumina | ||
| Heating element & thermocouple type | Molybdenum Silicide (MoSi2) / B-type | ||
| Temperature controller | Shimaden FP93 (Japan) with 4 patterns and 40 segments (ie. 4 x 10 segments or 2 x 20 segments) | ||
| Max heating rate | < 15C (59F) / min | ||
| Temperature accuracy | +/- 1C | ||
| Compliance | ETL tested to UL and CSA standards (optional), CE | ||
| Chamber size (DxWxH) | 6 x 6 x 6" | 12 x 8 x 8" | 16 x 12 x 12" |
| Usable chamber space (DxWxH) | 4 x 5 x 5.5" | 10 x 7 x 7.5" | 14 x 11 x 11.5" |
| Chamber capacity (cu ft) | 0.13 cu ft | 0.44 cu ft | 1.33 cu ft |
| Installed heating element (pc) | 4 | 8 | 10 |
| Maximum output | 3 kW | 7 kW | 13 kW |
| Unit/shipping dimensions (LxWxH) | 22 x 21 x 34" / 30 x 29 x 42" | 26 x 29 x 39" / 30 x 37 x 47" | 26 x 29 x 39" / 30 x 37 x 47" |
| Unit/shipping weight | 230 / 300 lbs | 550 / 660 lbs | 660 / 800 lbs |
