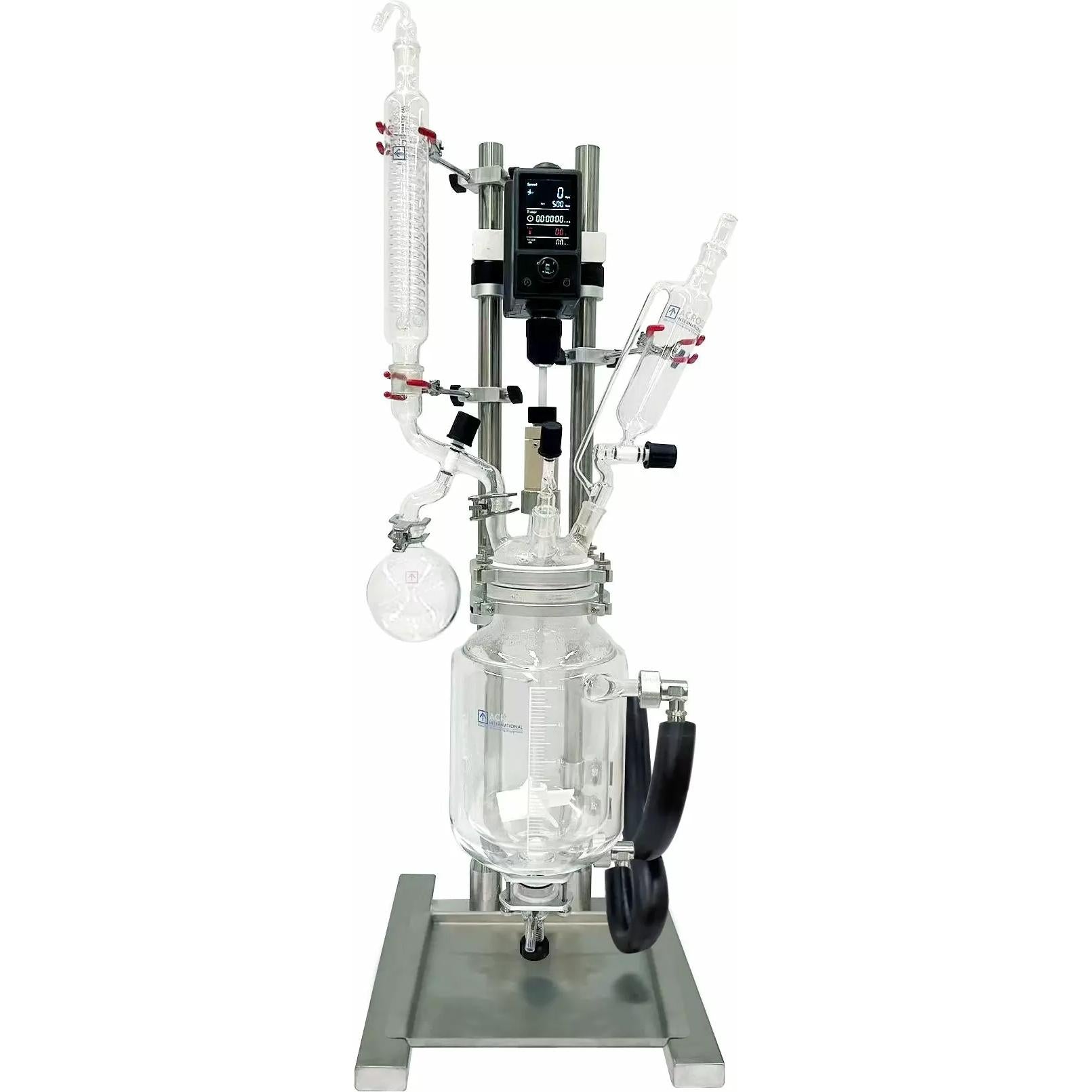

Ai 5L R Series Single Jacketed Glass Reactor
SKU Description Jacket Electrical Quantity Price Add to Cart
R05.115 Ai R Series 5L Jacketed Glass Reactor Single 115V, 50/60Hz 1 Each
$5,390
$5,120
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
R05.220 Ai R Series 5L Jacketed Glass Reactor Single 220V, 50/60Hz 1 Each
$5,390
$5,120
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

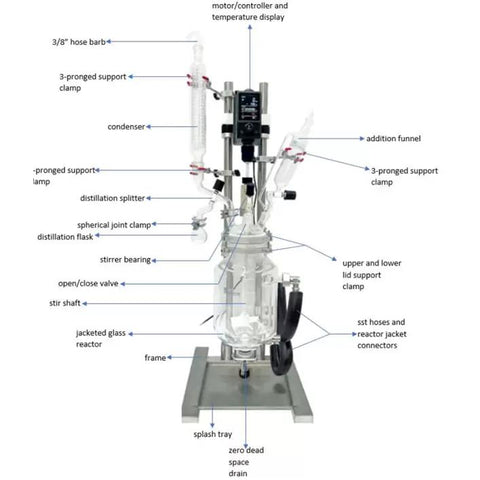

Introducing the Ai R-series single glass reactors bench top reactors. Both the 2L and 5L reactor vessels can be used on the same frame, allowing for greater flexibility and customizability. Reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

  • Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
  • All glassware is hand-made from food grade high borosilicate glass that is corrosion-resistant.
  • Adjustable stirring rate provides great torque or high speed.
  • Wide range of temperature operations, from -120C to -200C.
  • Large condenser cooling surface for exceptional condensation performance.
  • Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.

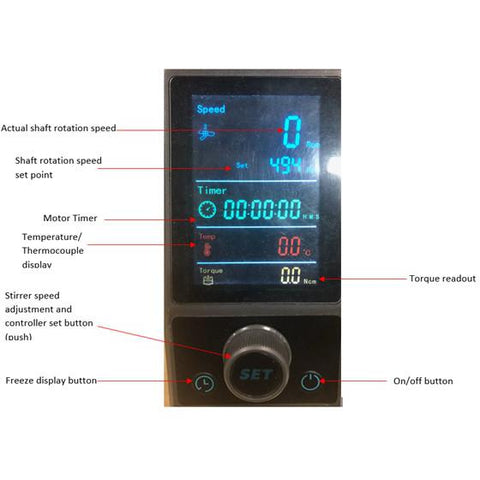

  • Visual operation with digital speed and temperature displays.
  • Easy swap between 2L and 5L capacity (additional vessel required, not included)
  • One year warranty and US-based parts, service, and support.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly the entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in the breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

Model R05
Electrical Requirement 115V-230V, 50/60Hz
Power Output 70W
Environmental Conditions Temperature 5-40C
Max. relative humidity 80% for temperatures up to 30ᵒC decreasing linearly to 50 % relative humidity at 40ᵒC
Mains supply volt fluctuations up to ±10 % of the nominal voltage
Transient overvoltage up to the levels of overvoltage category II (See Note 1).
Temporary overvoltage occurring on the mains supply.
Applicable pollution degree of the intended environment (pollution degree 2 in most cases (See Note 2).
Note 1: These levels of transient overvoltage are typical for equipment supplied from the building wiring.
Note 2: Manufacturers may specify more restricted environmental conditions for operation, nevertheless the equipment must be safe within these normal environmental conditions.
Glass Vessel Temperature Range From -120ᵒC to 200ᵒC
Cooling/Heating Jacket Capacity 3.5L
Maximum Jacket Pressure 0.08 MPa
Vacuum Gauge Mechanical
Vacuum Level 300 torr
Vacuum Sealinge PTFE
Rotation Controller Located on the motor itself
Temperature Display Located on the motor itself
Reaction Glass Vessel Capacity 5L
Agitator 4-blades with a 45-degree pitch
Glass Material High borosilicate glass 303
Vessel Head Domed with 5 ports
Drain Valve Zero dead space with a flat flange clamp
Condenser Single-cooling coil design
Funnel Pressure Equalizing
Unit Dimensions (LxWxH) 17"x 18" x 48"
Frame Dimensions (LxWxH) 17" x 18"x 45"
Shipping Dimensions 24" x 20" x 55"
Shipping Weight 155 lbs
