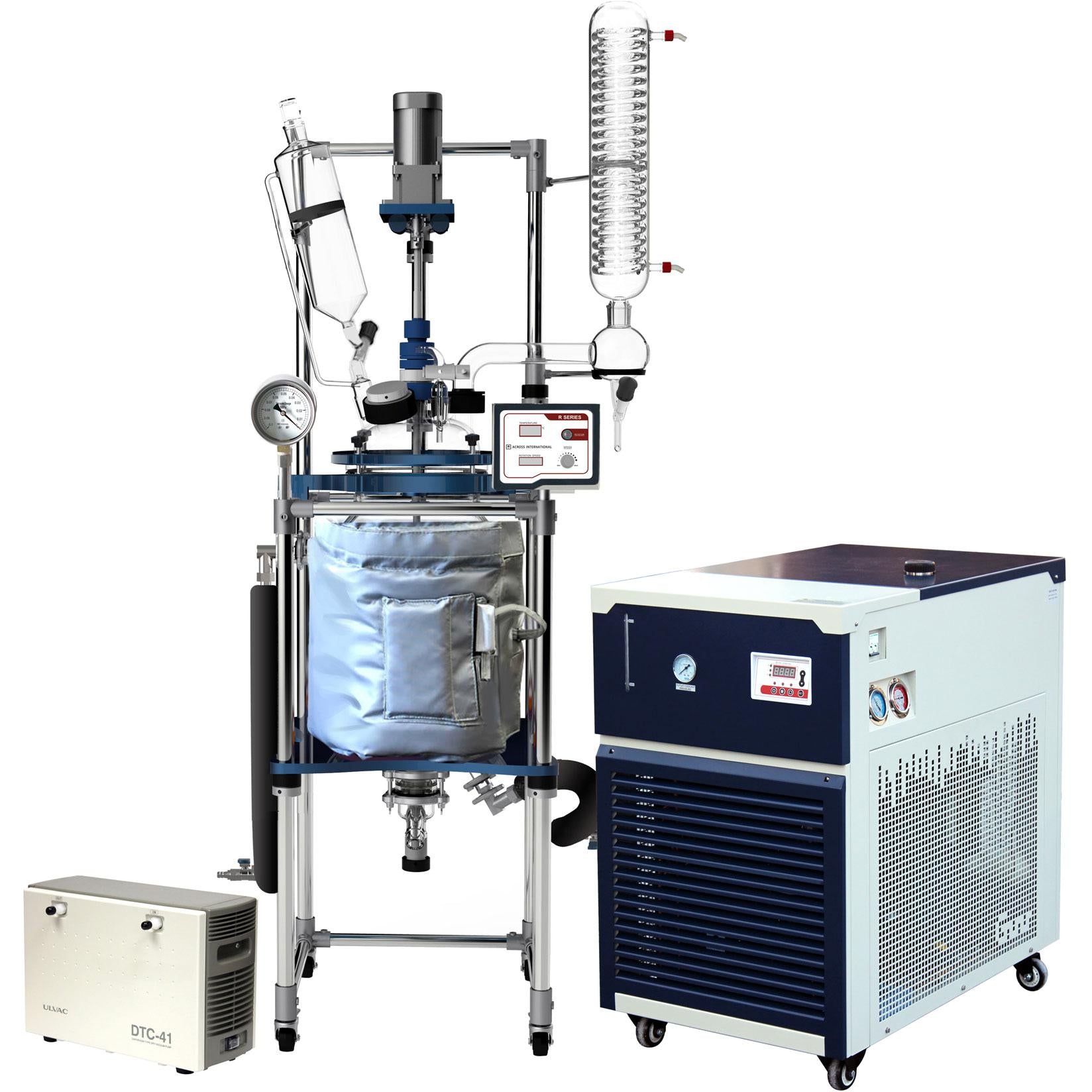

Ai R Series Turnkey Jacketed Glass Reactor Kits, 20 Liter, with Chiller & Pump

  • Save time + money with a pre-selected turnkey glass reactor kit from Across International.
  • Gain peace of mind thanks to the 1-year warranty and the guaranteed compatibility of all components.
  • Choose between a single- or dual-jacketed reactor based on your lab's requirements.

from $20,870.00 $19,222.00

SKU DESCRIPTION JACKET ELECTRICAL QUANTITY PRICE ADD TO CART
2R20-S2 Ai R Series 20L Glass Reactor Kit, with Chiller and Pump Dual 110V, 60Hz, 1-PH, 90W 1 Kit
$23,970
$22,077
R20-S2 Ai R Series 20L Glass Reactor Kit, with Chiller and Pump Single 110V, 60Hz, 1-PH, 90W 1 Kit
$20,870
$19,222

Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover materials at the same controlled rate of speed.

Features

  • Now includes a FREE high quality thermo insulation jacket (a $459 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
  • Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
  • Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
  • All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
  • Adjustable stirring rate provides great torque or high speed.
  • Patented PTFE stirring rod bearing for reliable and quiet operation.
  • Optional multi-layer stirring blades for optimal reaction results.
  • Wide range of temperature operations, from -110°F to 400°F.
  • Large condenser cooling surface for exceptional condensation performance.
  • Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
  • Easily visual operation with digital speed and temperature displays.
  • Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
  • One year warranty and lifetime US-based parts, service, and support.

How to stay safe

Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

Model R20-S2 / 2R20-S2
Electrical requirements 110V, 60Hz, 1-PH, 90W
Reaction glass vessel capacity 5.3 gallons (20L)
Cooling/heating jacket capacity 1.6 gallons (6L)
Glass material High borosilicate glass 3.3
Rotation controller Digital controller with variable frequency drive
Maximum jacket pressure 4.4 psi or 0.03 MPa
Drain valve Flush seal design with large opening and flat flange clamp
Agitator Anchor design, type-304 stainless steel reinforced PTFE structure
Condenser Dual-cooling coil design
Funnel Pressure equalizing
Vacuum gauge Mechanical
Swivel caster Four
Glass vessel temperature range -110°F to 400°F
Vacuum level < 700 torrs
Vacuum sealing Glass or PTFE
Drain port ground clearance 13 inches
Reactor dimensions (WxDxH) 20 x 27 x 80"
Shipping dimensions 24 x 75 x 31"
Shipping weight 265 Lbs



Specifications

Part description Quantity
Ai 220V C30-40 -30°C 30L/min recirculating chiller and accessories 1 set
ULVAC 110V DTC-41 1.6 cfm 7.5 torr 2-head diaphragm pump and vacuum hose 1 set

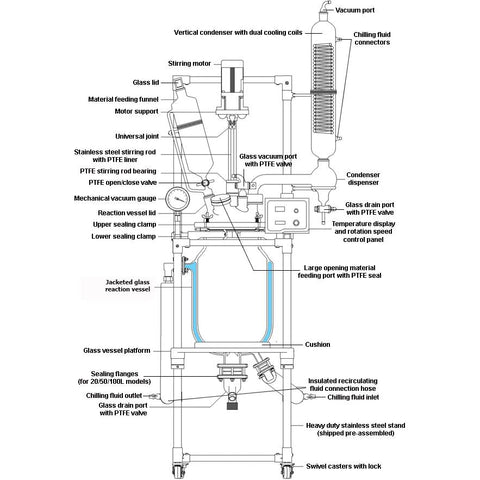

Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled) 1 set
Glass vessel insulation jacket with openable viewing window 1 pc
Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass 1 pc
Glass condenser dispenser with drain port and PTFE open/close valve 1 set
Glass material feeding funnel, lid, and PTFE open/close valve 1 set
Glass bottom drain port with PTFE open/close valve 1 set
Glass vacuum valve 1 set
Stirring motor controller with material temperature display 1 pc
Stirring motor and motor support 1 set
Mechanical vacuum gauge with two 3/8" hose barb ports 1 pc
Temperature probe with PTFE seal 1 pc
PTFE stirring blades, stainless steel rod with PTFE liner 1 pc
Glass vessel 3/8" stainless steel chilling fluid adapter 2 sets
PTFE sealing tape 1 pc
PTFE stirring rod positioner/bearing kit 1 set
Condenser dispenser connection kit 1 set
Large opening material feeding port kit 1 set
Bottom drain port connection kit (for 10L) 1 set
Bottom drain port sealing flange (for 20/50/100L) 1 set
Rubber-wrapped condenser dispenser support and condenser bracket 3 pcs
Chilling fluid connector x 2, vacuum connector x 1 3 sets
Allen key and backup inner hex screws 1 set
User's manual 1 pc
