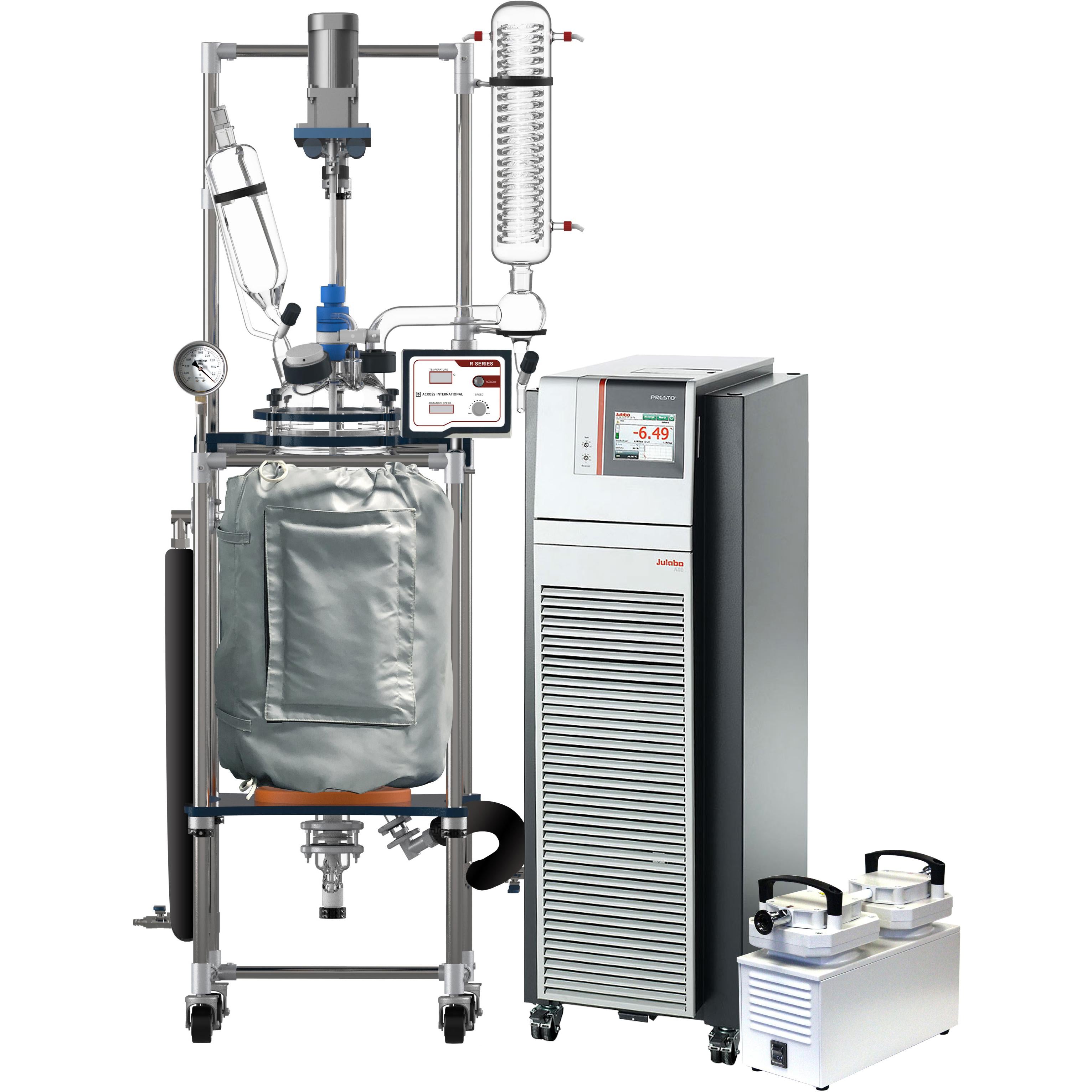

Ai R Series Turnkey Jacketed Glass Reactors, 50 Liters, with Chiller and Pump

  • Free Shipping

from $52,650.00 $48,493.00

SKU DESCRIPTION JACKET PUMP CHILLER CONDENSER CHILLER QUANTITY PRICE ADD TO CART
2R50-A80T.110 Ai R Series 50L Glass Reactor Dual Welch 2163 diaphragm pump, 110V Julabo recirculating chiller, 230V Ai C30 chiller, 110V 1 Kit
$61,650
$56,783
2R50-A80T.220 Ai R Series 50L Glass Reactor Dual Welch 2163 diaphragm pump, 110V Julabo recirculating chiller, 230V Ai C30 chiller, 220V 1 Kit
$61,650
$56,783
R50-A80T Ai R Series 50L Glass Reactor Single Welch 2163 diaphragm pump, 110V Julabo recirculating chiller, 230V Not included 1 Kit
$52,650
$48,493
R50-A80T.110 Ai R Series 50L Glass Reactor Single Welch 2163 diaphragm pump, 110V Julabo recirculating chiller, 230V Ai C30 chiller, 110V 1 Kit
$56,650
$52,178
R50-A80T.220 Ai R Series 50L Glass Reactor Single Welch 2163 diaphragm pump, 110V Julabo recirculating chiller, 230V Ai C30 chiller, 220V 1 Kit
$56,650
$52,178
2R50-A80T Ai R Series 50L Glass Reactor Dual Welch 2163 diaphragm pump, 110V Julabo recirculating chiller, 230V Not included 1 Kit
$57,650
$53,099

Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel. This allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover materials at a controlled rate of speed.

Features

  • Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
  • All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
  • Adjustable stirring rate provides great torque or high speed.
  • Patented PTFE stirring rod bearing for reliable and quiet operation.
  • Optional multi-layer stirring blades for optimal reaction results.
  • Wide range of temperature operations, from -110°F to 400°F.
  • Large condenser cooling surface for exceptional condensation performance.
  • Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
  • Easily visual operation with digital speed and temperature displays.
  • Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
  • One year warranty and lifetime US-based parts, service, and support.
  • Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
  • Includes a FREE high quality thermo insulation jacket (a $699 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, reduce minimum temperature, and reduce utility costs.

Warning

Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

Model R50
Electrical requirements 110V 60Hz 1-PH, 140W
Reaction glass vessel capacity 13 gallons (50L)
Cooling/heating jacket capacity 4.2 gallons (16L)
Glass material High borosilicate glass 3.3
Rotation controller Digital controller with variable frequency drive,
Rotation speed: 50 to 500 rpm
Maximum jacket pressure 4.4 psi or 0.03 MPa
Drain valve Flush seal design with large opening and flat flange clamp
Agitator Anchor design, type-304 stainless steel reinforced PTFE structure
Condenser Dual-cooling coil design
Funnel Pressure equalizing
Vacuum gauge Mechanical
Swivel caster Four
Glass vessel temperature range -110°F to 400°F
Vacuum level < 700 torrs
Vacuum sealing Glass or PTFE
Drain port ground clearance 12.5 inches
Reactor dimensions (WxDxH) 26 x 33 x 85"
Shipping dimensions 25 x 83 x 42"
Shipping weight 330 Lbs



Included

Part description Quantity
Julabo -80°C to 250°C 40L/min recirculating chiller - 230V 3Ph 1 set
Welch 2163 6.1 cfm 6 torr diaphragm pump and vacuum hose - 110V 1 set
Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled) 1 set
Glass vessel insulation jacket with openable viewing window 1 pc
Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass 1 pc
Glass condenser dispenser with drain port and PTFE open/close valve 1 set
Glass material feeding funnel, lid, and PTFE open/close valve 1 set
Glass bottom drain port with PTFE open/close valve 1 set
Glass vacuum valve 1 set
Stirring motor controller with material temperature display 1 pc
Stirring motor and motor support 1 set
Mechanical vacuum gauge with two 3/8" hose barb ports 1 pc
Temperature probe with PTFE seal 1 pc
PTFE stirring blades, stainless steel rod with PTFE liner 1 pc
Glass vessel 3/8" stainless steel chilling fluid adapter 2 sets
PTFE sealing tape 1 pc
PTFE stirring rod positioner/bearing kit 1 set
Condenser dispenser connection kit 1 set
Large opening material feeding port kit 1 set
Bottom drain port connection kit (for 10L) 1 set
Bottom drain port sealing flange (for 20/50/100L) 1 set
Rubber-wrapped condenser dispenser support and condenser bracket 3 pcs
Chilling fluid connector x 2, vacuum connector x 1 3 sets
Allen key and backup inner hex screws 1 set
User's manual 1 pc
