BINDER FD Avantgarde.Line Drying and Heating Ovens with forced convection
$2,384
and up
| Image | SKU | Description | Capacity | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
9010-0304 | Model FD 56 Oven with forced convection | 2.1 cu ft | ambient +10 °C to 300 °C | 120 V, 60 Hz, 12.5 A, UL Certified | 1 Each | $2,384 | |
|
9010-0306 | Model FD 115 Oven with forced convection | 4.1 cu ft | ambient +10 °C to 300 °C | 120 V, 60 Hz, 12.5 A, UL Certified | 1 Each | $3,291 | |
|
9010-0310 | Model FD 260 Oven with forced convection | 9.1 cu ft | ambient +10 °C to 300 °C | 240 V, 60 Hz, 16 A, UL Certified | 1 Each | $5,410 |
Description

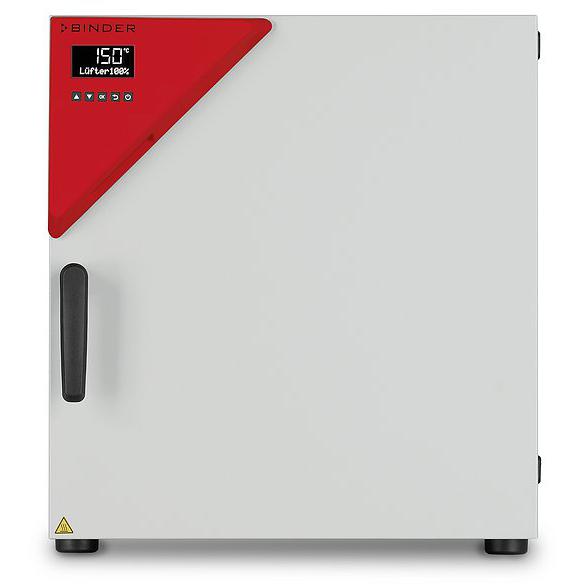

A BINDER FD series Avantgarde.Line heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
Features:
- Temperature range: ambient temperature plus 10 °C to 300 °C
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Units up to 115 L are stackable
- Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
- Ergonomic handle design
- USB port for recording data
Documentation
| Product Data Sheets |
|---|
| E | ED | ED-S | FD | FD-S | FED | FP | M Series Brochure |
| BD | BF | ED | FD | FED Series Operating Manual |
Specifications
| SKU | 9010-0304 | 9010-0306 | 9010-0310 |
|---|---|---|---|
| Model | FD056UL-120V | FD115UL-120V | FD260UL-240V |
| Capacity | 2.1 cu ft | 4.1 cu ft | 9.1 cu ft |
| Temperature Range | ambient +10 °C to 300 °C | ambient +10 °C to 300 °C | ambient +10 °C to 300 °C |
| Temperature Stability | ±0.3 K at 150 °C | ±0.3 K at 150 °C | ±0.4 K at 150 °C |
| Temperature Uniformity | ±1.7 K at 150 °C | ±1.7 K at 150 °C | ±1.9 K at 150 °C |
| Heat-Up Time | 15 mins to 150 °C | 18 mins to 150 °C | 19 mins to 150 °C |
| Doors | 1 | 1 | 1 |
| Interior Dimensions | 13.59" D x 17.34" H x 15.76" W | 15.17" D x 21.67" H x 21.67" W | 20.29" D x 30.73" H x 25.61" W |
| Exterior Dimensions | 22.26" D x 24.63" H x 22.06" W | 23.84" D x 28.96" H x 27.97" W | 32.5" D x 38.02" H x 31.91" W |
| Number of Shelves | 2 standard (4 max.) | 2 standard (5 max.) | 2 standard (8 max.) |
| Maximum Load | 154 lbs | 110 lbs | 187 lbs |
| Electrical | 120 V, 60 Hz, 12.5 A, UL Certified | 120 V, 60 Hz, 12.5 A, UL Certified | 240 V, 60 Hz, 16 A, UL Certified |
| Energy Consumption | 290 Wh/h at 150 °C | 340 Wh/h at 150 °C | 410 Wh/h at 150 °C |
| Noise Level | 43 dB(A) | 43 dB(A) | 43 dB(A) |
| Weight | 86 lbs | 110 lbs | 187 lbs |
