DigiVac Bullseye Precision Vacuum Gauge-531
SKU Description Quantity Price Add to Cart
BPG DigiVac Bullseye Precision Vacuum Gauge with Real-Time Analytics 1 Each
$463
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

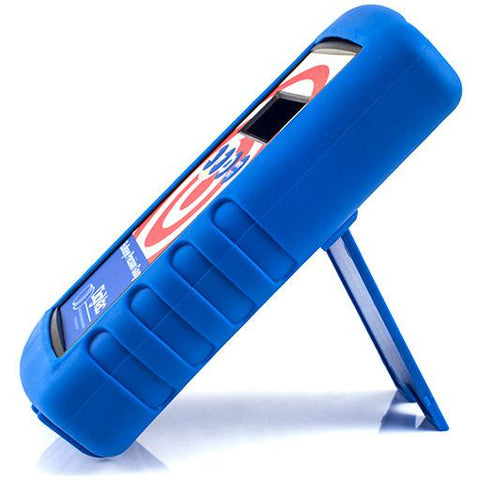

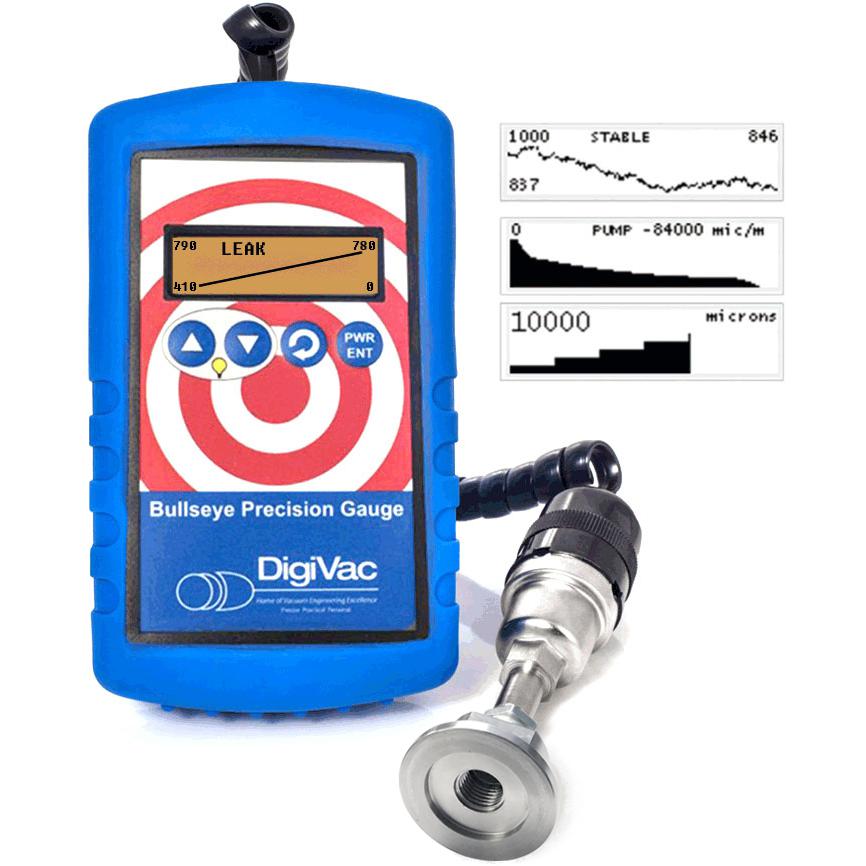

The DigiVac Bullseye precision vacuum gauge is a rugged and portable vacuum gauge. It features visual graphing to pinpoint problems in real time (leak, pump, outgas, stable). Included are a powerful magnet and kickstand to enable hands-free operation.

Features

  • Gauge with Varian/Agilent 531 sensor
  • Visual graphing feature right on the display
  • Vacuum analytics to quickly identify vacuum pressure trends
  • Graphical display for quick determination of vacuum level
  • Hands-Free with a "hang up your overalls" strong magnet
  • Long battery life and versatility with 12 different measuring units including micron, Torr, and inches of mercury

Specifications

Specifications BPG
Units Torr, mbar, bar, kPa, Inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa
Range 1E-4 - 1000 Torr
Accuracy 0.001 - 2.0 Torr
Vacuum Level 1 micron
Vacuum Reference Absolute
Sensor 531 Thermocouple Plus (PN: SEN-VGT500)
Vacuum Connector FK25/NW25
Panel Mount No
Portable Yes
Shipping Weight 2 Lb
Shipping Dimensions 11 x 10 x 4 inches
