Process Reactor System, 100L, Squatty, Cylindrical, Jacketed, Glass, 400mm Flange, Brushless DC Electric Motor
SKU Description Capacity Motor Type Manifold System Quantity Price Add to Cart
CG-1968-W9100 Process Reactor System, Squatty, Cylindrical, Jacketed, Glass, 400mm Flange 100 L Brushless DC Electric Motor CG-1969-M Manifold with M30 x 1.5 Circulator Fittings 1 Each
  • 1
  • 2
  • 3
  • 4
  • 5

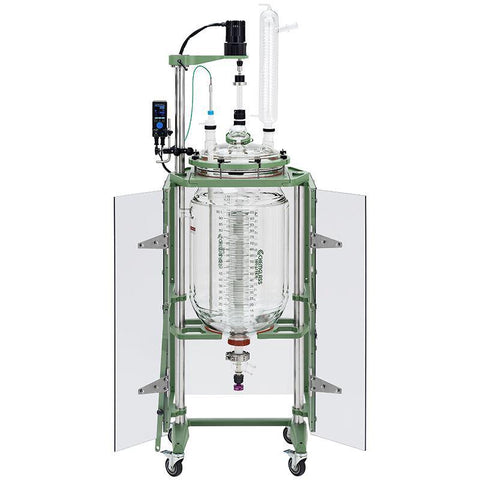

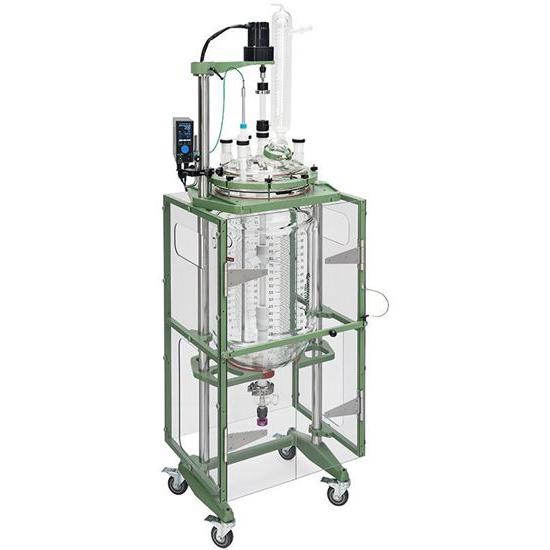

The 100L Squatty, Low Profile, glass reactor system with 400mm flange. 100L glass reactor system on our innovative Kwik Mount support frame. Lexan safety shields surround the reactor with the front panel hinged for easy access.

Complete 100L Squatty Reactor System Features:

  • More Clearance: 100L Squatty Glass Reactor System with 400mm Flange Maximizes Clearance Under The Drain Valve
  • Wider Access: 400mm ID Flange Provides Wider Access For Insertion or Probes, Baffles and Other Accessories without Interfering with Agitators
  • Heavy Duty 2" Diameter Solid Stainless Steel Uprights and Heavy Duty PTFE Coated Aluminum Fittings Provide Maximum Strength and Chemical Durability
  • Digital Temperature Monitor

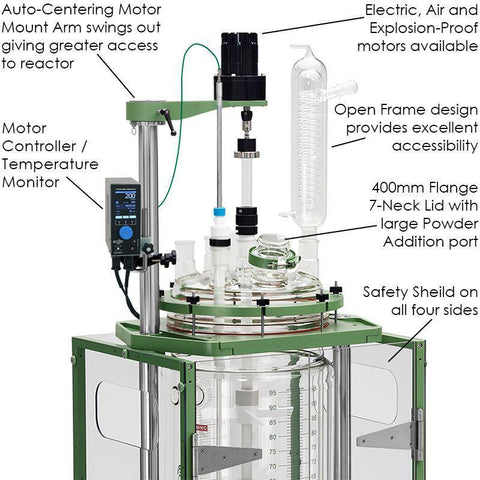

  • Heavy Duty Chemically Resistant Frame: Universal Motor Mount for Electric, Air, or XP Motors: Design Provides Greater Accessibility
  • Electric Motor and Controller: Electric and XP Motor has Separate Controller with Digital Display
  • Reactor Jacket Graduation Scale on Both Sides

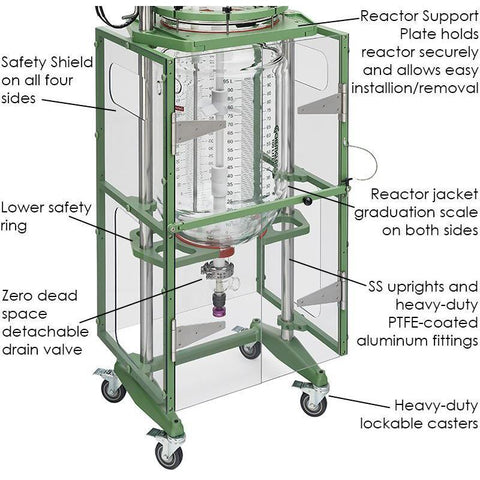

  • Large Detachable Drain: 3" Beaded Pipe Zero Dead Space Detachable Drain Valve has Knob With Laser Etched Directional Arrows for Open and Close
  • 7-Neck 400mm Inside Diameter Lid with Large 80mm Powder Addition Port
  • Reactor Support Plate Holds Reactor Securely and Allows Easy Installation/Removal
  • Lexan Safety Shield On All Four Sides
  • Pressure Relief Manifold System: Supplied with CG-1969-M High Flow Pressure Relief Manifold System With Insulated Hoses and Bulkhead Fittings
  • Mobile: Large Swivel Casters with Locking Mechanisms


Product Data Sheets
100L "Squatty" Jacketed Reactors Product Data Sheet
100L "Squatty" Jacketed Reactor Operating Manual
