Process Reactor Systems, Jacketed, Electric or Air Motor

Questions? Quotes? Let's chat!
$18,391.50
$18,248 and up
SKU Description Capacity Motor Type Manifold System Quantity Price Add to Cart
CG-1964-610 Complete Jacketed Process Reactor System 10 L Air Motor None 1 Each
$18,391.50
$18,248
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1965-610 Complete Jacketed Process Reactor System 10 L Electric Motor None 1 Each
$19,756
$19,581
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

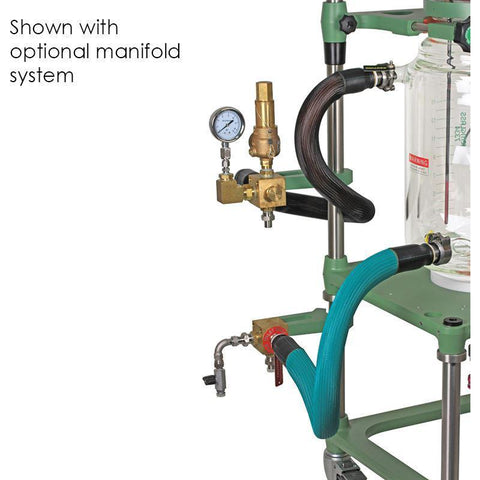

CG-1964-610M Complete Jacketed Process Reactor System 10 L Air Motor CG-1969-M-01 Manifold with M16 Circulator Fittings 1 Each
$21,284
$21,073
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1965-610M Complete Jacketed Process Reactor System 10 L Electric Motor CG-1969-M-01 Manifold with M16 Circulator Fittings 1 Each
$22,387.20
$22,150
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1964-615 Complete Jacketed Process Reactor System 15 L Air Motor None 1 Each
$18,845.60
$18,692
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1965-615 Complete Jacketed Process Reactor System 15 L Electric Motor None 1 Each
$20,013.30
$19,832
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1965-620 Complete Jacketed Process Reactor System 20 L Electric Motor None 1 Each
$21,770.60
$21,548
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1964-620 Complete Jacketed Process Reactor System 20 L Air Motor None 1 Each
$20,636.80
$20,441
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1965-620M Complete Jacketed Process Reactor System 20 L Electric Motor CG-1969-M-04 Manifold with M30 Circulator Fittings 1 Each
$24,656
$24,366
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1964-620M Complete Jacketed Process Reactor System 20 L Air Motor CG-1969-M-04 Manifold with M30 Circulator Fittings 1 Each
$23,371.90
$23,112
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

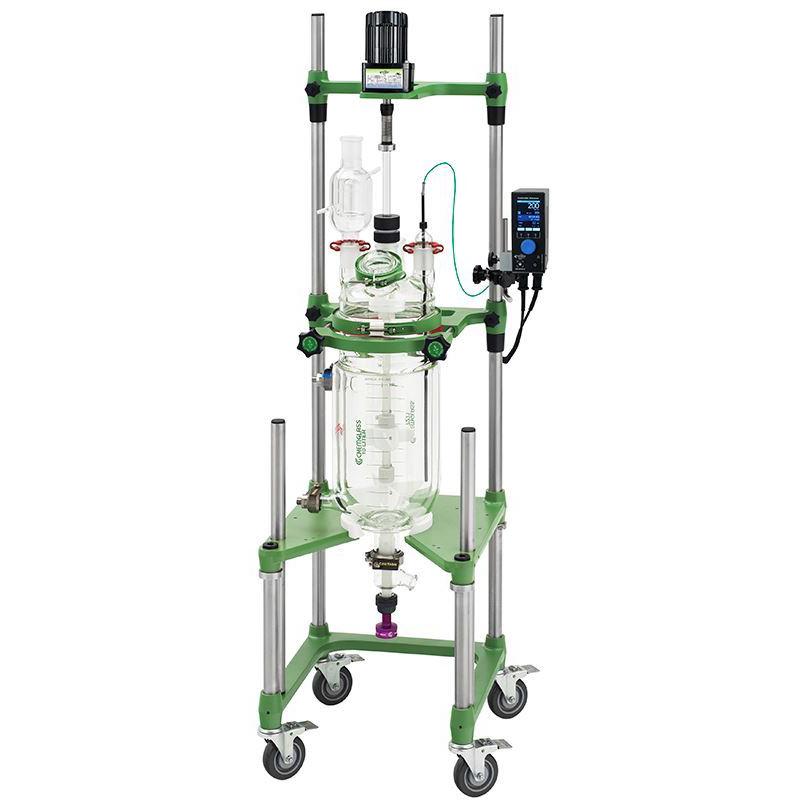

Complete glass reactor system on our new open air, auto-center stand. Please note: reactor stand overall height with motor and clearance below valve, are calculated for all chemglass stirrer bearings, including the CG-2077-M mechanical seal stir bearing.

Features:

  • Open Frame Design Provides Excellent Accessibility
  • Support Frame with Oversized Rugged S.S. Uprights and Heavy Duty PTFE Coated Aluminum Fittings
  • Improved Support Clamp Auto-Centers Reactor and Lid Allowing Quick Installation/Removal Of Reactor
  • Perfluoro O-Rings On 60mm and 200mm Flanges
  • S.S. Inlet/Outlet Adapters Available In M16 x 1 and M30 x 1.5 Allow Connection To Cooling/Heating Circulator
  • Lower Support Plate, and PTFE Ring, Have a "V" Shaped Opening Allowing An Unobstructed View Of Bottom Valve
  • Zero Dead Space Detachable Drain Valve Has Knob with Laser Etched Directional Arrows For Open and Close
  • Electric or Air Motor. Optional XP Motor Available
  • 5-Neck Lid with Large Powder Addition Funnel
  • Digital Temperature Monitor
  • Electric Motor Has Separate Digital Controller
  • Reactor Jacket Graduated On Both Sides
  • Removable S.S. Pipe Used To Support Side Shelf and Manifold System
  • Support Bushings For Optional Safety Shield
  • Heavy Duty Lockable Casters

Documentation

Product Data Sheets
10L Jacketed Reactors Product Data Sheet
15L Jacketed Reactors Product Data Sheet
20L Jacketed Reactors Product Data Sheet
Jacketed Process Reactor Systems Operating Manual
