Process Reactors, Cylindrical, Jacketed, 75L, Electric or Air Motor
SKU Description Capacity Motor Type Manifold System Quantity Price Add to Cart
CG-1968-675 Complete Jacketed Process Reactor System 75 L Electric Motor CG-1969-M Manifold with M30 x 1.5 Circulator Fittings 1 Each
$45,712.20
$45,224
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1970-675 Complete Jacketed Process Reactor System 75 L Air Motor CG-1969-M Manifold with M30 x 1.5 Circulator Fittings 1 Each
$44,189.90
$43,738
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

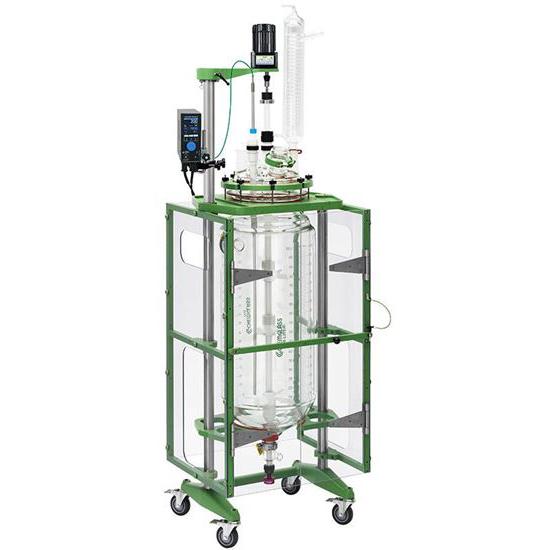

Complete reactor system on our innovative Kwik Mount support frame. Lexan safety shields surround the reactor with the front panel hinged for easy access. Please note: reactor stand overall height with motor and clearance below valve, are calculated using the CG-2077-H stirrer bearing. If you require the CG-2077-M mechanical seal stir bearing, then the glass lid must be replaced by CG-1968-B-01 S.S. lid.

Features:

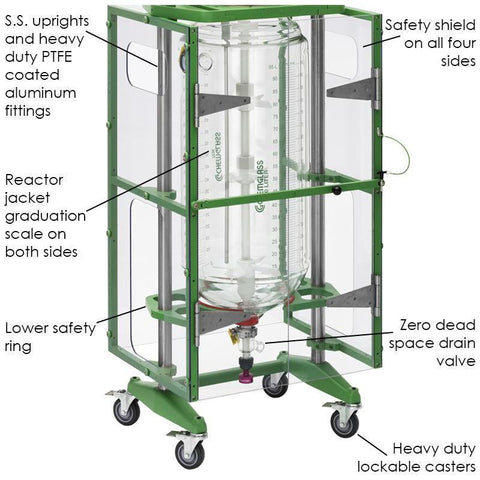

  • Rugged 1" S.S. Pipe (1.315" OD) Uprights and Heavy Duty PTFE Coated Aluminum Fittings Provide Maximum Strength and Chemical Durability
  • Digital Temperature Monitor

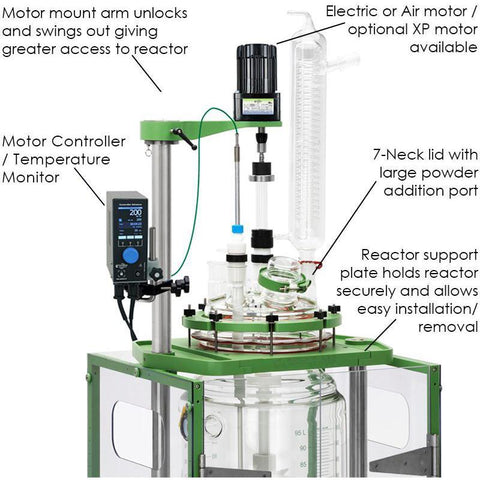

  • Universal “H” Shaped Motor Mount for Electric, Air, or XP Motors: Design Provides Greater Accessibility
  • Electric and XP Motor has Separate Controller with Digital Display
  • Reactor Jacket Graduation Scale on Both Sides
  • Zero Dead Space Detachable Drain Valve has Knob With Laser Etched Directional Arrows for Open And Close
  • 7-Neck Lid with Large Powder Addition Port
  • Reactor Support Plate Holds Reactor Securely and Allows Easy Installation/Removal of Reactor by One Person

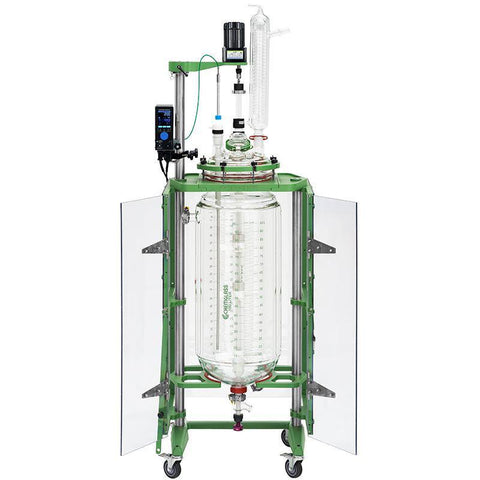

  • Lexan Safety Shield on All Four Sides
  • Supplied With Insulated Hose and Bulkhead Fittings
  • Mobile: Large Swivel Casters with Locking Mechanism

Documentation

Product Data Sheets
75L Jacketed Reactors, Electric Motor, Product Data Sheet
75L Jacketed Reactors, Air Motor, Product Data Sheet
75L Jacketed Reactor Operating Manual
