Process Reactors, Cylindrical, Jacketed, Electric or Air Motor, Large Scale
Process Reactors, Cylindrical, Jacketed, Electric or Air Motor, Large Scale
Process Reactors, Cylindrical, Jacketed, Electric or Air Motor, Large Scale
FREE SHIPPING

Process Reactor Systems, Jacketed, Electric or Air Motor, Large Scale

Questions? Quotes? Let's chat!
$26,736.80
$26,460 and up
SKU Description Capacity Motor Type Manifold System Quantity Price Add to Cart
CG-1968-630 Complete Jacketed Process Reactor System 30 L Electric Motor None 1 Each
$27,934.85
$27,630
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1970-630 Complete Jacketed Process Reactor System 30 L Air Motor None 1 Each
$26,736.80
$26,460
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1968-630M Complete Jacketed Process Reactor System 30 L Electric Motor CG-1969-M-06 Manifold with M30 Circulator Fittings 1 Each
$30,839.70
$30,467
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1970-630M Complete Jacketed Process Reactor System 30 L Air Motor CG-1969-M-06 Manifold with M30 Circulator Fittings 1 Each
$29,635.10
$29,290
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1968-650 Complete Jacketed Process Reactor System 50 L Electric Motor None 1 Each
$29,260.75
$28,925
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1970-650 Complete Jacketed Process Reactor System 50 L Air Motor None 1 Each
$28,075.80
$27,768
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1968-650M Complete Jacketed Process Reactor System 50 L Electric Motor CG-1969-M-06 Manifold with M30 Circulator Fittings 1 Each
$32,418.65
$32,008
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1970-650M Complete Jacketed Process Reactor System 50 L Air Motor CG-1969-M-06 Manifold with M30 Circulator Fittings 1 Each
$30,492.35
$30,127
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

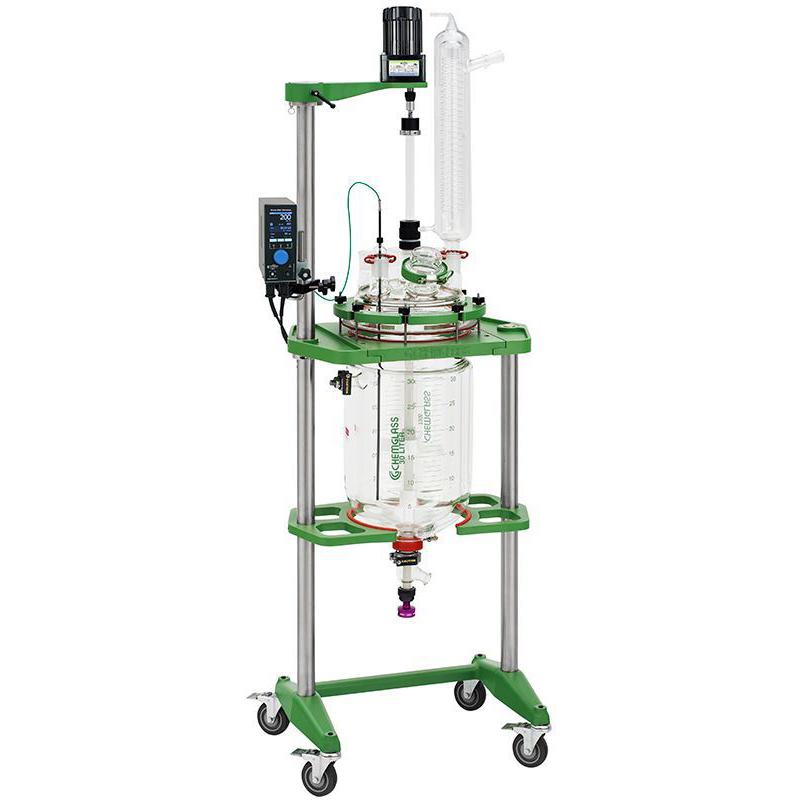

Complete reactor system on our new open air stand. Please note: reactor stand overall height with motor and clearance below valve, are calculated for all chemglass stirrer bearings, including the CG-2077-M mechanical seal stir bearing.

Features:

  • Motor Mount Arm Can Unlock And Swing Out Giving Greater Access To Reactor
  • Digital Temperature Monitor
  • Electric And XP Motor Has Separate Controller With Digital Display
  • Smaller Footprint Support Frame With Oversized Rugged S.S. Uprights And Heavy Duty PTFE Coated Aluminum Fittings
  • Reactor Jacket Graduation Scale On Both Sides
  • Lower Safety Ring
  • Zero Dead Space Detachable Drain Valve Has Knob With Laser Etched Directional Arrows For Open And Close
  • Electric Or Air Motor Optional XP Motor Available
  • Open Frame Design Provides Excellent Accessibility
  • 7-Neck Lid With Large Powder Addition Port
  • Reactor Support Plate Holds Reactor Securely And Allows Easy Installation/Removal Of Reactor By One Person
  • Ridge Clamp Accepts 1/2” Rod And Adds Additional Support For Large Glassware
  • S.S. Inlet/Outlet Adapters Available In M16 X 1 And M30 X 1.5 Allow Connection To Cooling/Heating Circulator
  • Heavy Duty Lockable Casters

Documentation

Product Data Sheets
30L Jacketed Reactors Product Data Sheet
50L Jacketed Reactors Product Data Sheet
30L & 50L Jacketed Process Reactor Operating Manual
