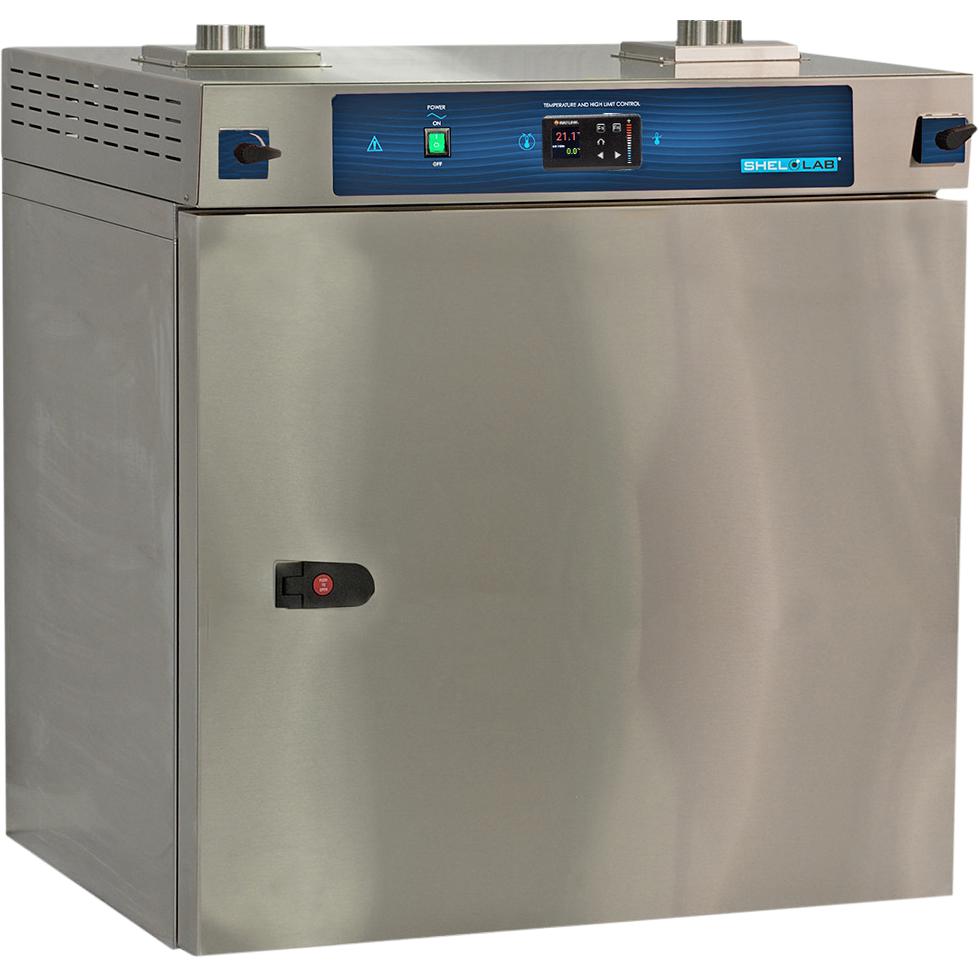

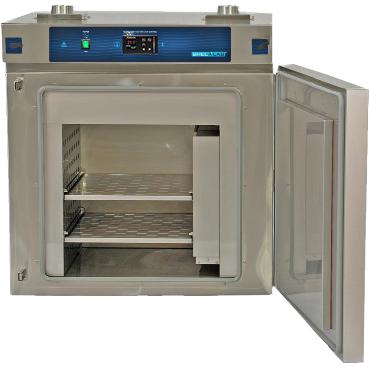

The SHEL LAB SMO5CR-2 cleanroom oven incorporates all the special features needed for high-temperature cleanroom work: stainless-steel interior, adjustable perforated stainless-steel shelves, and rapid heat recovery. The Watlow PM9 Plus controller is capable of a 40-step ramp and soak profile or 4 files with 10 steps per file. SHEL LAB SMO5CR-2 cleanroom ovens are made with high-temperature, wrap-around insulation, and a high-temperature silicone door gasket. The SMO5CR-2’s adjustable air intake and exhaust ducts are easily removed for cleaning. Chamber air is continually passed through the Class E11 efficiency particle filter in SMO5CR-2’s horizontal airflow regimen; this contrasts with other oven designs that merely filter the incoming air once. A nitrogen inlet purge port is standard to reduce external air ingress and the risk of contamination.
Features
- Horizontal Airflow
- Encapsulated Insulation
- Nitrogen Purging
- Brushless Circulation Blower Motor
- Watlow PM9 Plus Controller
- Class E11 Efficiency Particle Filter
- 300 Series Stainless-Steel Exterior
- Fully Welded Stainless-Steel Interior
- Built-in Overtemperature Protection
- 24 Month Limited Warranty
Specifications
| Model |
SMO5CR-2 |
| Exterior Dimensions (W × D × H) |
35" × 30" × 37.6" |
| Interior Dimensions (W × D × H) |
17" × 20" × 20" |
| Volume |
3.9 cu. ft. |
| Shelf Dimensions |
16.6" × 20.1" |
| Unit Weight |
325 lbs |
| Interior Metal |
300 Stainless Steel |
| Exterior Metal |
300 Stainless Steel |
| Operating Temperature Range |
Amb +20°C - 170°C |
| Temperature Uniformity - Midrange |
2.5 °C |
| Temperature Stability - Midrange |
0.3 °C |
| Controller Type |
Watlow PM9 Plus |
| Display Resolution |
0.1 °C |
| Power Voltage, Frequency |
220-240 VAC, 50/60 Hz, 12.0 Amps |
| Safety Certifications |
UL 61010-1, EN 61010-1, CSA 61010-1, CE |
