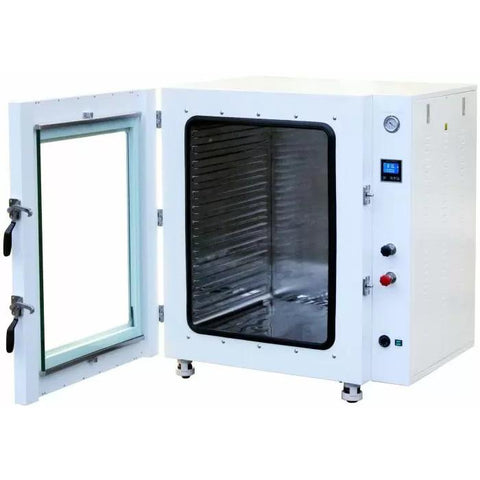

Ai Vacuum Oven, 16 Cu Ft, High Shelf Capacity, 5 Sided Heating, 250°C

The Ai 250C max. 26-shelf capacity, 5-sided wall-heating, 16 cu ft vacuum oven, one of the biggest 250C vacuum ovens on the market! Comes standard with secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and 2-year warranty.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. Oven comes standard with 13 shelves. This unit only comes in 220V 50/60Hz.

Features

• ETL tested to UL and CSA standards.

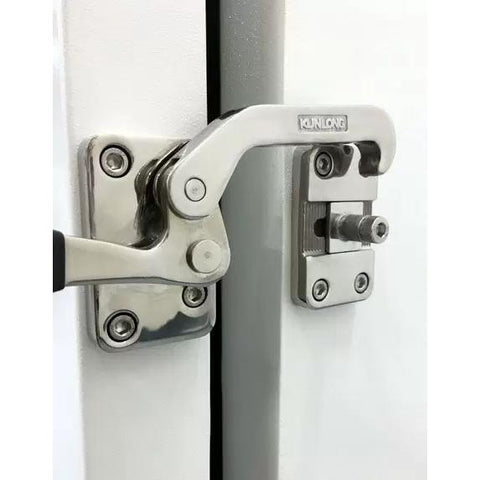

• Dual door handles with tension-adjustable latches for exceptional vacuum sealing.
• KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
• All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
• Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
• All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
• 4th gen low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.
• Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.

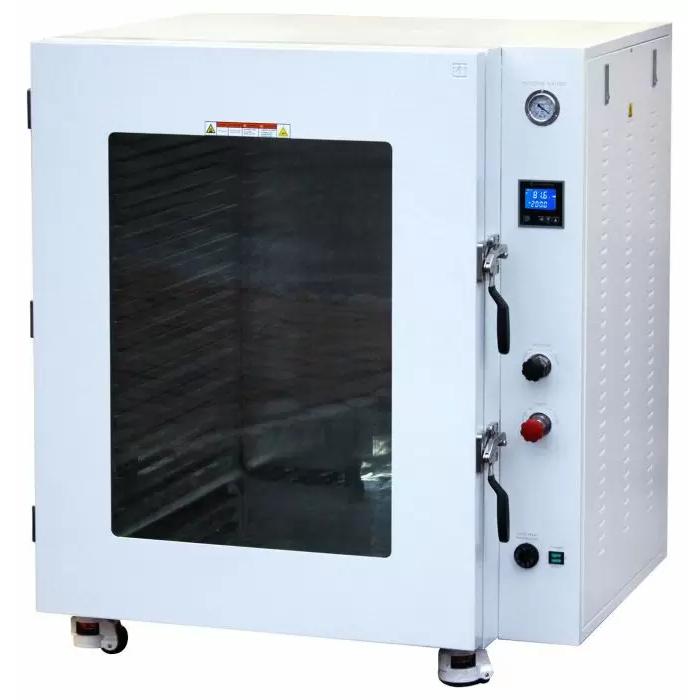

• Dual layer observation window with 3/4" tempered safety glass.
• 3" thermal insulation prevents heat loss and minimizes the enclosures outer surface temperature.
• Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
• A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
• Built-in alarm alerts you when oven has been shut down by safety circuitry due to out-of-range temperature.
• Built-in swivel casters with leveling feet.
• For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
• All ovens shipped from our New Jersey or Nevada location for quick delivery.
• 2-year warranty and lifetime US-based parts and service support.
• Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes

Manufactured in accordance with

• UL 61010-1
• CSA C22.2
• ISO 9001:2000
• ISO 12100-1:2003, ISO 12100-2:2003
• EN1050:1996, EN294:1992, EN60204-1:2006 CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
