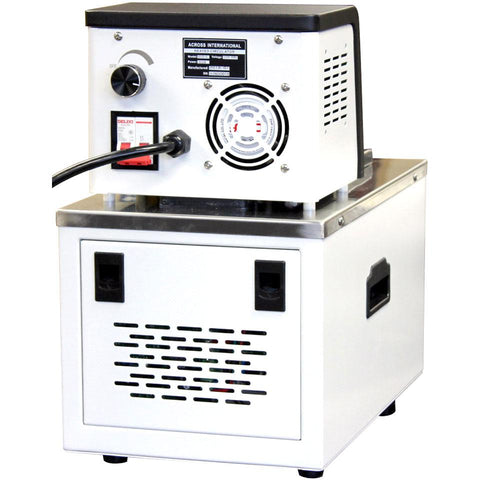

Ai Compact Heated Circulator, 7 L, to 100°C
$1,190
$1,096
| SKU | Description | Filling Volume | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| H100-7.110 | Ai Compact Heated Circulator | 7 L | Ambient to 100 °C (No load) | 110V, 60Hz, 1-PH 1,600W, UL/CSA Certified | 1 Each |
|
Description
The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
Features
- Powerful 1,500 watts heater
- Adjustable pumping speed up to 20 liters per minute

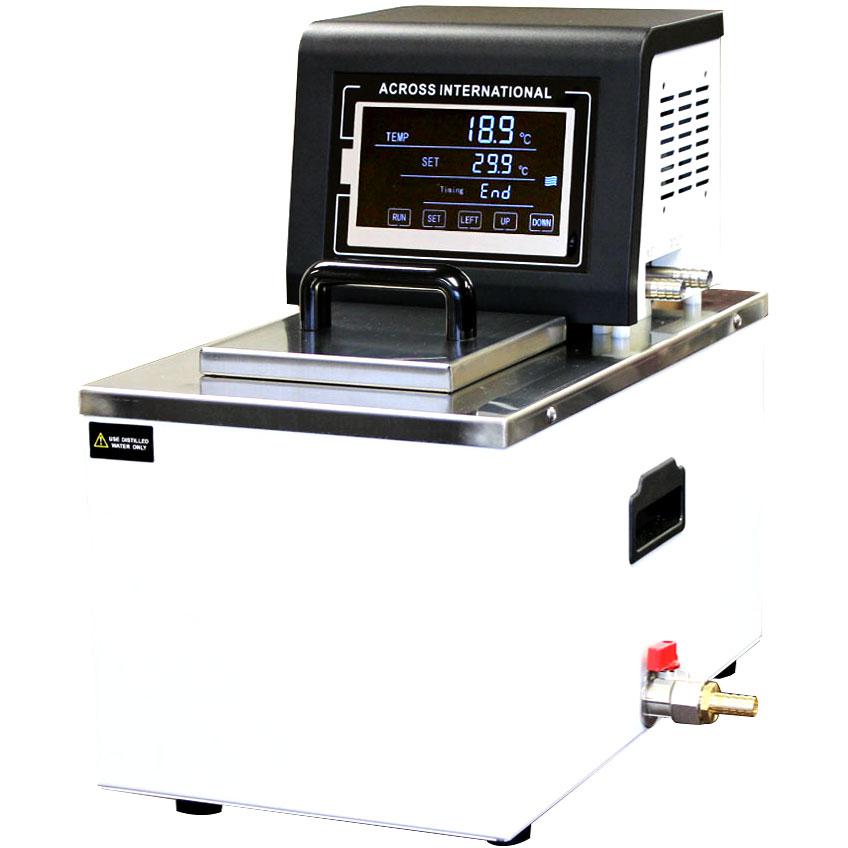

- 2nd generation 7" TFT touch screen controller
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Connection tubing included
- Recommended for 2L to 10L distillation systems
- ETL tested to UL and CSA standards
Specifications
| SKU | H100-7.110 |
|---|---|
| Model | H100-7 |
| Electrical | 110V, 60Hz, 1-PH 1,600W, UL/CSA Certified |
| Heating Capacity | 1,500 watts |
| Pumping Speed | 20 L/min, adjustable |
| Maximum Head | 16 feet or 5 meters |

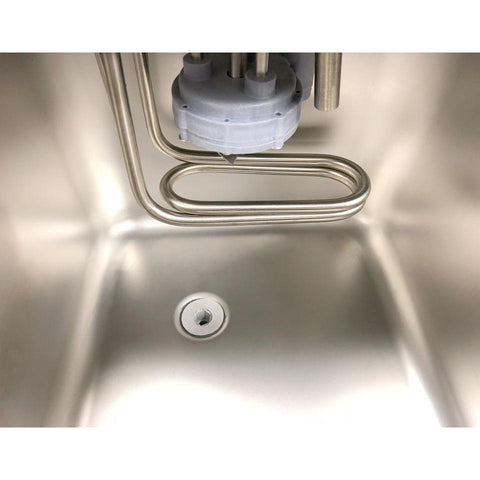

| Reservoir | 304 stainless steel |
| Filling Volume | 7 L |
| Reservoir Size | 9.5 x 12 x 7.5" (WxDxH) |
| Connection | 3/8" hose barb x 2 |
| Controller | Digital microprocessor PID controlled |
| Display | 7" touch screen |
| Temperature Range | Ambient to 100 °C (No load) |
| Temperature Accuracy | +/- 2°C |
| Ambient Environmental Temp | -15°C to 25°C, at <66% humidity |
| Dimensions | 10.5 x 17 x 17" |
| Weight | 30 lbs |
| Shipping Dimensions | 17 x 20 x 22" |
| Shipping Weight | 36 lbs |
| Safety Features | Short circuit and ground protection, Over-current protection, Over-temperature protection, Upper/lower temperature alarm protection |
| Warranty | One year |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016, CSA C22.2#61010-1 :2012 Ed.3 |
