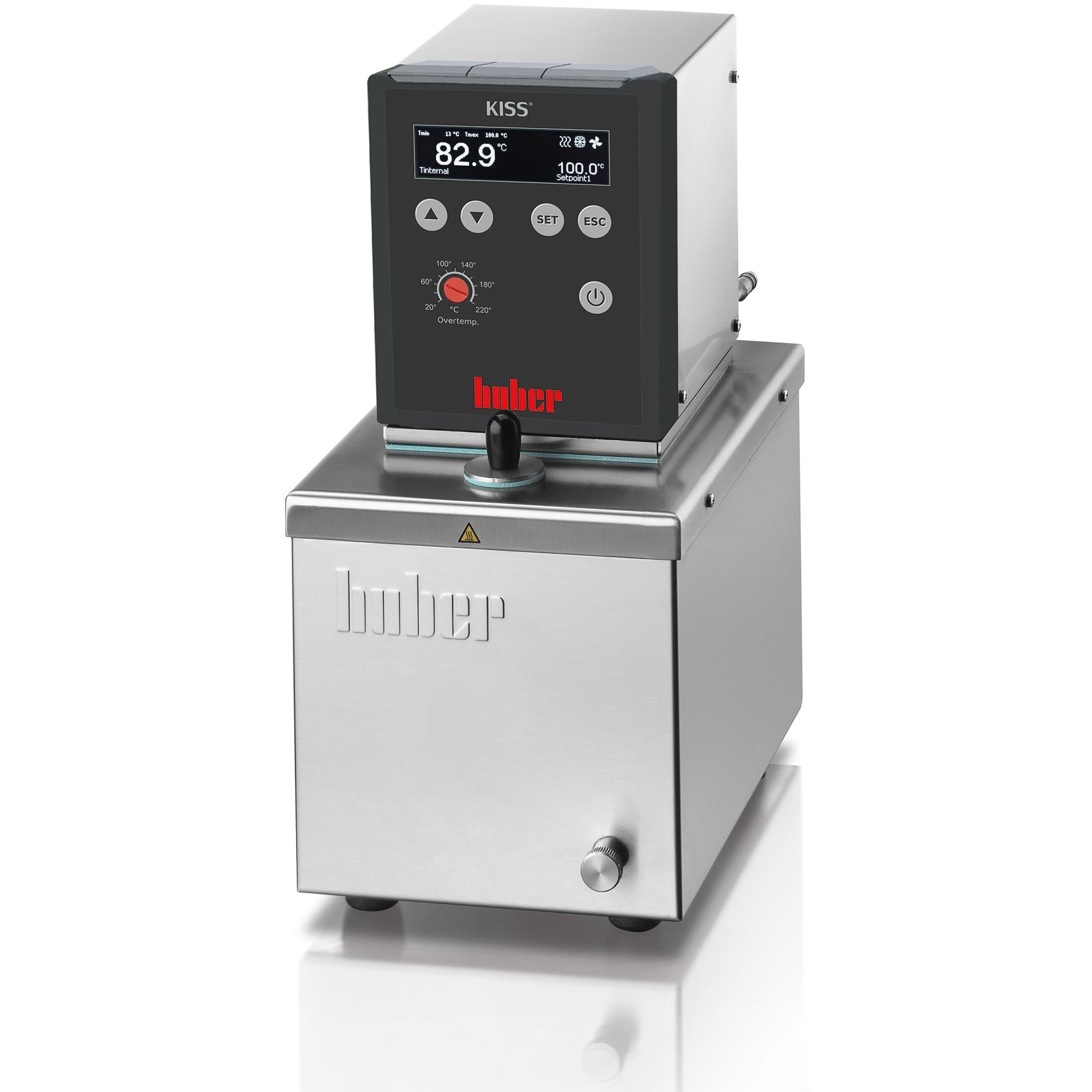

Huber KISS 202C, Heating Circulators
SKU Description Filling Volume Temperature Range Temperature Stability Electrical Quantity Price Add to Cart
2003.0006.98 KISS 202C Heating Circulator 2 L 45 to 200 °C ±0.05 °C 100-115V 1~ 50/60Hz 1 Each
$3,330
$3,163.50
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
2003.0006.98.UL Huber KISS 202C Heating Circulator 2 L 45 to 200 °C ±0.05 °C 100-115V 1~ 50/60Hz, UL/CSA Certified 1 Each
$3,830
$3,638.50
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

Heating circulation thermostats are specially designed for temperature control of externally attached applications with a small volume. The units are fitted with bath tanks made of stainless steel or polycarbonate. The thermostats have M16x1 pump connections at the rear side as well as a stainless steel bath cover with a filling opening. All models are fitted with an over-temperature and low level protection system according to safety class III/FL (DIN 12876) for use with flammable fluids. A powerful circulation pump ensures optimal heat transfer to external attached applications.

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

  • KISS temperature controller
  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure

Specifications

Model 2003.0006.98
KISS 202C, 100-115V
General Information & Temperature Controller
Temperature Range 45 to 200 °C
Temperature Stability ±0.05 °C
Temperature Display OLED Display
Alarm Message Optical, Acoustical
Controller KISS
Safety Class III / FL
Protection Class IP20
Dimensions (W x D x H) 178 x 260 x 355 mm
7.01 x 10.24 x 13.98 inches
Weight 8 kg / 17.64 pounds
Heating / Cooling Capacity
Heating / Cooling Capacity 1-1.5 kW
Circulation Pump
Pressure Pump Max. 14 lpm ; 0.25 bar / 3.7 gpm ; 2.4 psi
Suction Pump Max. 10.5 lpm ; 0.17 bar / 2.77 gpm ; 2.47 psi
Pump Connection M16x1 AG male
Connections
Digital Interface USB, RS232
Operating Data
Permissible Ambient Temp. 5 to 40 °C
Bath Opening W x D / BD Ø = 25 / 150 mm / Ø = 0.98 / 5.91 inches
Bath Volume 2 Liters / 0.53 gal
Power Supply 100-115V 1~ 50/60Hz
Current Max. 15 A
Fusing 15 A

Documentation

Product Data Sheets
KISS 202C 100-115V Product Data Sheet
KISS Immersion Circulator Operating Manual
