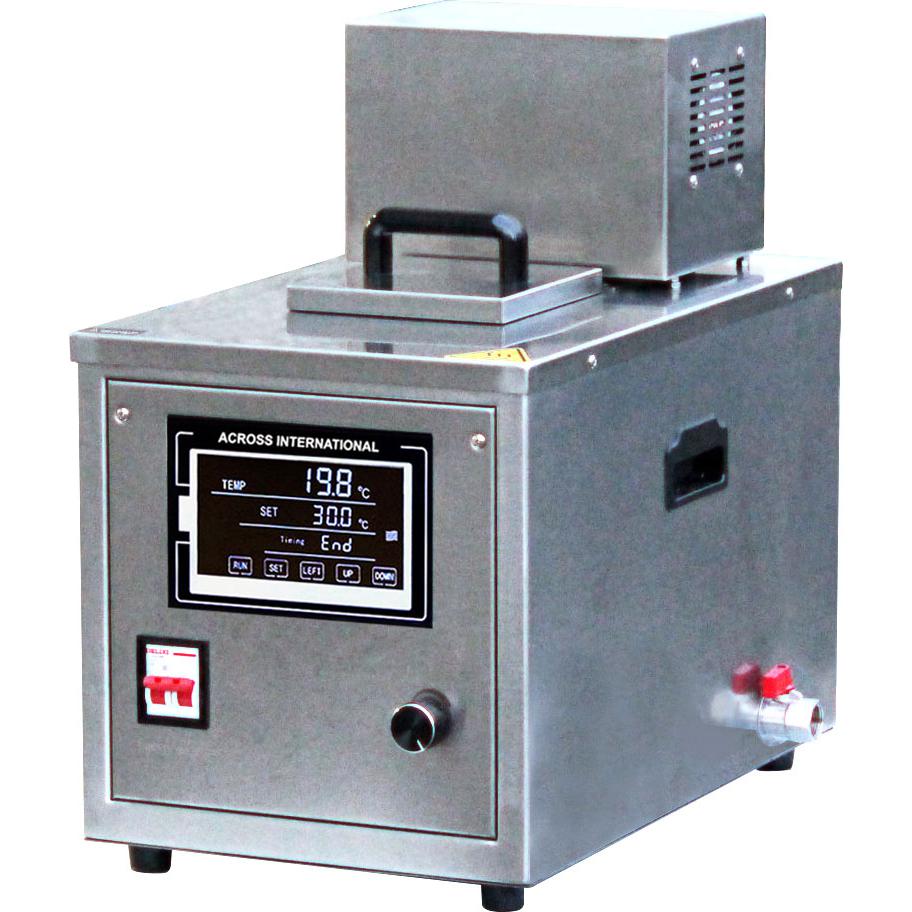

Ai Compact Heated Circulators, to 200°C, Stainless Steel
$2,590
$2,385
| Image | SKU | Description | Filling Volume | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
H200-7SST.220 | Ai Compact Heated Circulator, Stainless Steel | 7 L | Ambient to 200 °C (No load) | 220V, 60Hz, 1-PH, 2,900W, UL/CSA Certified | 1 Each |
|
|
|
H200-15SST.220 | Ai Compact Heated Circulator, Stainless Steel | 15 L | Ambient to 200 °C (No load) | 220V, 60Hz, 1-PH, 2,900W, UL/CSA Certified | 1 Each |
|
Description
The Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
Features
- Powerful 2,500 watts heater
- All stainless steel finish
- Adjustable pumping speed up to 20 liters per minute
- 2nd generation 7" TFT touch screen controller
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Front placed controller keeps all electronics away from the heat and expends lifespan of the controller
- Comes with 250°C rated, heavy duty, flexible stainless tubing with insulation
- ETL tested to UL and CSA standards
Specifications
| SKU | H200-7SST.220 | H200-15SST.220 |
|---|---|---|
| Model | H200-7SST | H200-15SST |
| Temperature Range | Ambient to 200 °C (No load) | Ambient to 200 °C (No load) |
| Electrical | 220V, 60Hz, 1-PH, 2,900W, UL/CSA Certified | 220V, 60Hz, 1-PH, 2,900W, UL/CSA Certified |
| Heating Capacity | 2,800 watts | 2,800 watts |
| Pumping Speed | 21 L/min, adjustable | 15 L/min, adjustable |
| Maximum Head | 16 feet or 5 meters | 16 feet or 5 meters |

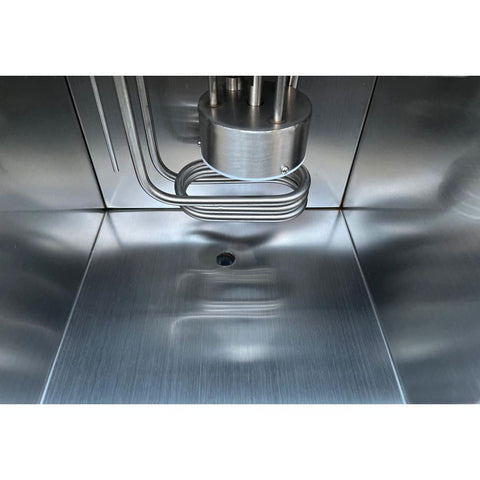

| Reservoir | 304 stainless steel | 304 stainless steel |
| Filling Volume | 7 L | 15 L |

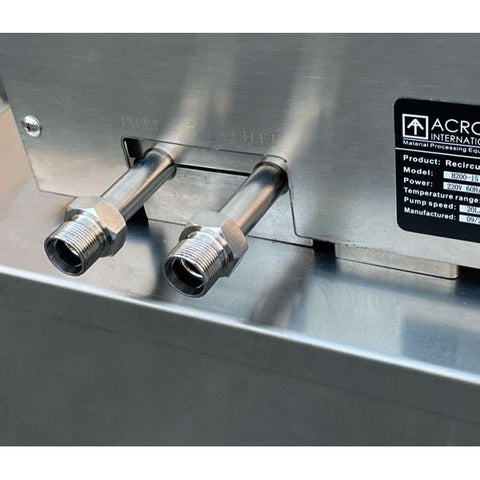

| Connection | M16 x 2 | M16 x 2 |
| Controller | Digital microprocessor PID controlled | Digital microprocessor PID controlled |
| Display | 7" touch screen | 7" touch screen |
| Temperature Accuracy | +/- 2 °C | +/- 2 °C |
| Ambient Environmental Temp | -15°C to 25°C, at < 66% humidity | -15°C to 25°C, at < 66% humidity |
| Dimensions | 11.5 x 19 x 19" | 14.75 x 19 x 18.25" |
| Weight | 35 lbs | |
| Shipping Dimensions | 16 x 24 x 22" | 17 x 22 x 22" |
| Shipping Weight | 50 lbs | 55 lbs |
| Safety Features | Short circuit & ground protection, Over-current protection, Over-temperature protection, Upper/lower temperature alarm protection | Short circuit & ground protection, Over-current protection, Over-temperature protection, Upper/lower temperature alarm protection |
| Warranty | One year | |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016, CSA C22.2#61010-1 :2012 Ed.3 | UL 61010-1 :2012 Ed.3+R:29Apr2016, CSA C22.2#61010-1 :2012 Ed.3 |
