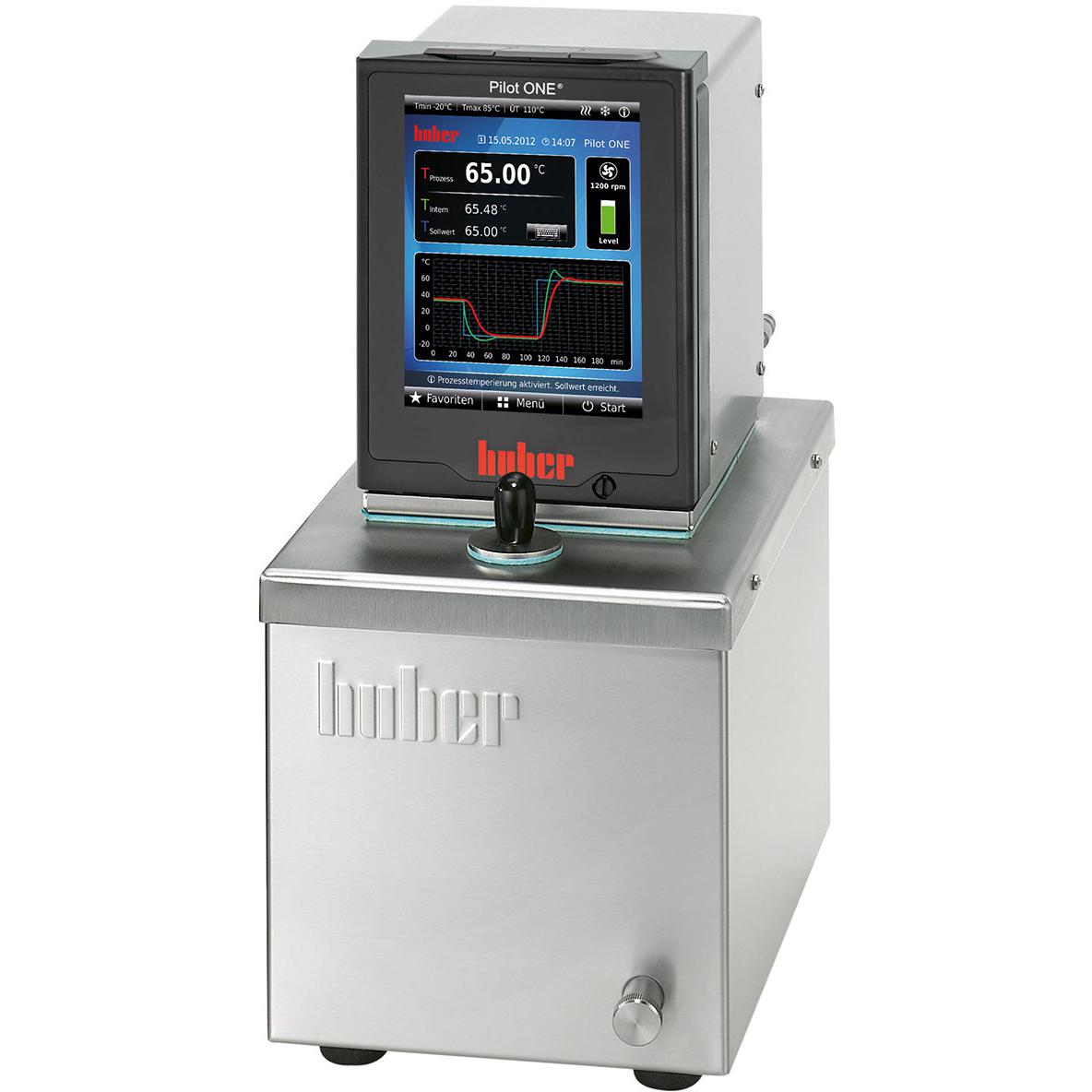

Huber CC-202C with Pilot ONE, Heating Circulators, 45 to 200°C

Heating Circulator with a powerful pressure pump. Moistened parts in stainless steel or high-resistant plastics. Cooling coil for (tap) water (3/8"). With adjustable over-temperature protection according to DIN 12876.

Heating circulation thermostats are specially designed for temperature control of externally attached applications with a small volume. The units are fitted with bath tanks made of stainless steel or polycarbonate. The thermostats have M16x1 pump connections at the rear side as well as a stainless steel bath cover with a filling opening. All models are fitted with an over-temperature and low level protection system according to safety class III/FL (DIN 12876) for use with flammable fluids. A powerful circulation pump ensures optimal heat transfer to external attached applications.

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favorites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

• Pilot ONE controller with Plug & Play technology
• Precise temperature control
• 5.7" touchscreen and comfortable menu navigation
• Overtemperature and low level protection
• Safety class III/FL (DIN 12876)
• Powerful pressure/suction pump
• Programmer with calendar and clock functions
• 2-point calibration
• RS232 interface and Pt100 connection
